Wiring Diagram For Headlamp Range Adjustment (HRA) - PE82.10-P-2101-97ZGA
Model 463
as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, control unit N71
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 24L |

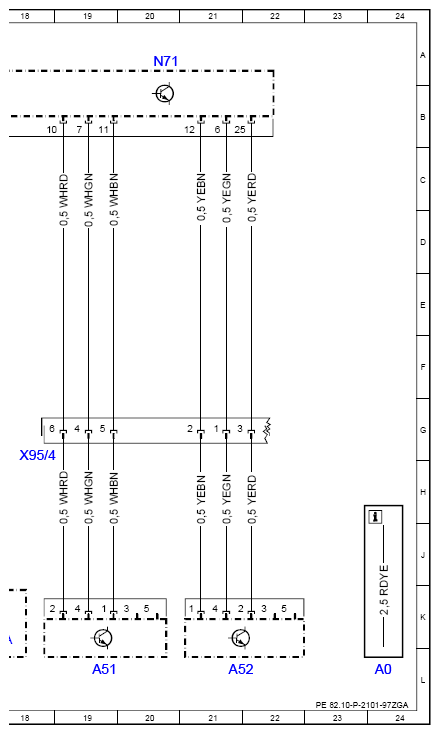

| A51 | Headlamp range adjustment rear axle sensor | 19L |
| A52 | Front axle headlamp range adjustment level sensor | 21L |
| CAN E1 | Chassis CAN 1 | 13K |
| CAN E2 | Chassis CAN 2 | 9K |
| F58 | Front passenger footwell fuse and relay module | 4L |
| F58f223 | Fuse 223 | 3L |

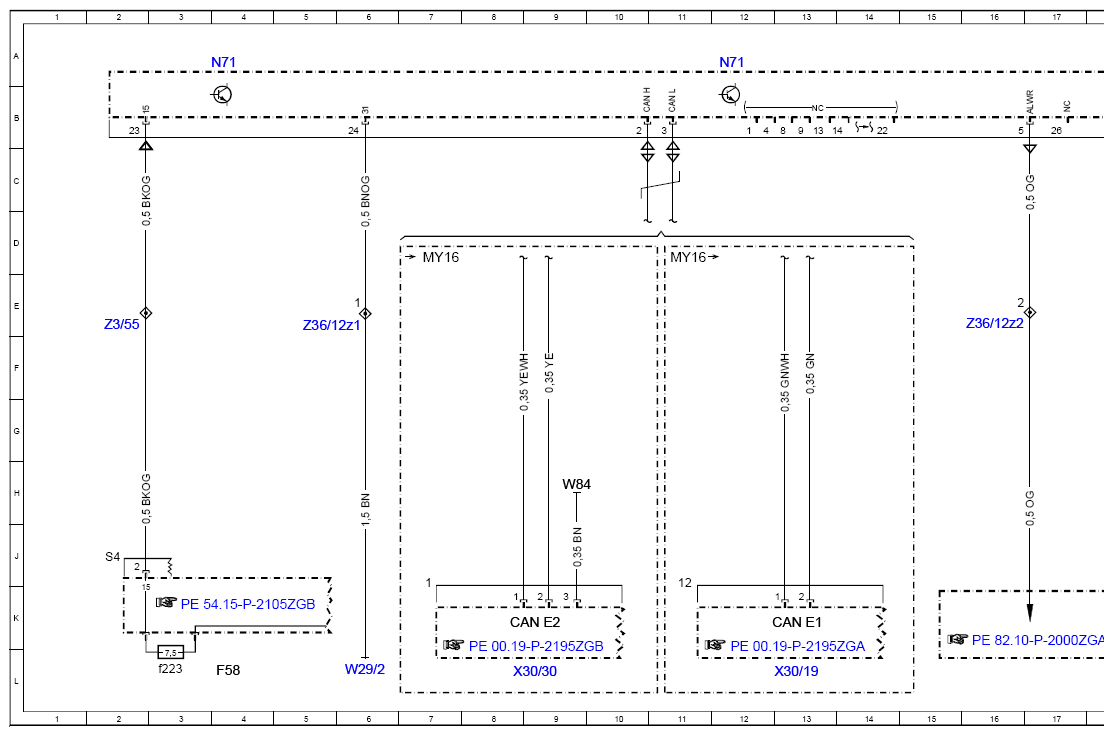

| N71 | Headlamp range adjustment control unit | 4A |
| N71 | Headlamp range adjustment control unit | 12A |
| N71 | Headlamp range adjustment control unit | 20A |
| W29/2 | Ground (right A-pillar) | 6L |
| W84 | Controller Area Network (CAN) ground point | 9H |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 13L |
| X30/30 | Chassis 2 CAN (CAN E2) potential distributor electrical connector | 9L |
| X95/4 | Frame electrical connector (6-pin) | 18G |
| Z3/55 | Headlamp range adjustment (HRA [LWR]) circuit 15 connector sleeve | 2E |
| Z36/12z1 | Headlamp range adjustment data line connector sleeve 1 | 5E |
| Z36/12z2 | Headlamp range adjustment data line connector sleeve 2 | 16E |
