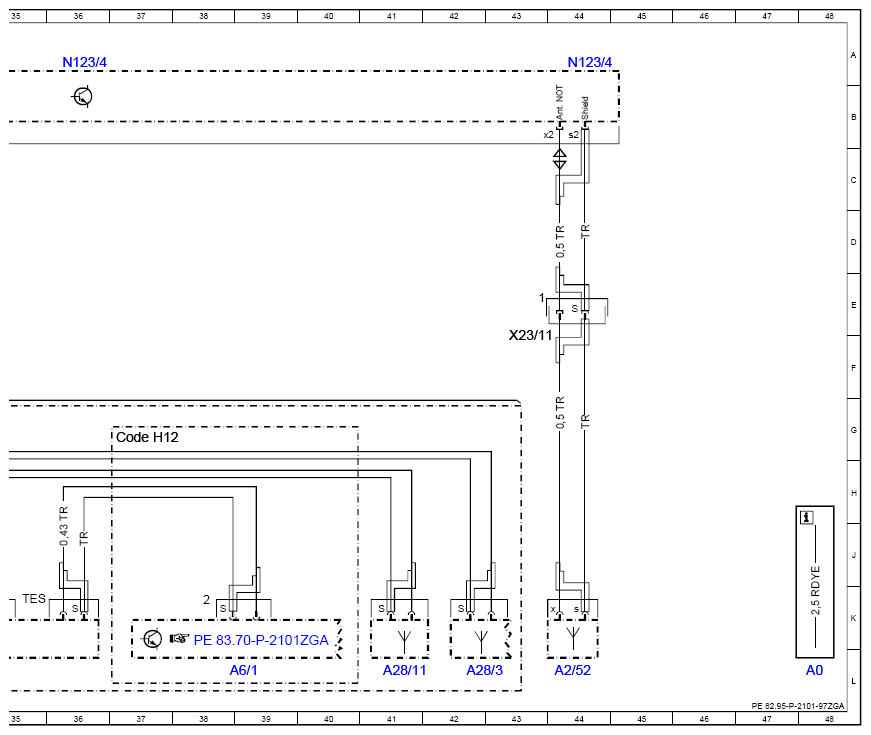

Wiring Diagram For Emergency Call System Control Unit - PE82.95-P-2101-97ZGA
Model 463
as of model year 2013 up to model year 2017
with code ZU8 (National version for USA)
/YoM 12 model refinement package, control unit N123/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A2/23 | Left front GPS antenna | 28L |
| A2/5 | Global positioning system antenna splitter | 26L |
| A2/52 | Emergency call system antenna | 44L |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 34L |
| A28/11 | Multifunction antenna | 41L |
| A28/11 | Multifunction antenna | 30L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 42L |
| A40/3 | COMAND control unit | 22L |
| A6/1 | Stationary heater radio remote control receiver | 39L |
| Code EH2 | Comfort telephony | 31G |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 15D |
| Code H12 | Auxiliary heater | 37G |
| F33 | Battery compartment prefuse box | 3L |
| F33f50 | Fuse 50 | 3L |
| H4/27 | Center instrument panel speaker | 6L |
| N123/4 | Emergency call system control unit | 4A |
| N123/4 | Emergency call system control unit | 21A |
| N123/4 | Emergency call system control unit | 12A |
| N123/4 | Emergency call system control unit | 29A |
| N123/4 | Emergency call system control unit | 36A |
| N123/4 | Emergency call system control unit | 44A |
| N2/10 | Supplemental restraint system control unit | 12L |
| N40/3 | Sound system amplifier control unit | 16L |
| U12 | Valid for left-hand drive vehicles | 15D |
| U500 | Not valid for sound system | 19D |
| U957 | Valid without mobile phone | 29G |
| W10/8 | Right battery recess ground point | 3E |
| X1/34 | Roof antenna electrical connector | 30F |
| X11/4 | Diagnostic connector | 9L |
| X18/14 | Sound system vehicle interior electrical connector | 16G |
| X23/11 | Emergency call system antenna electrical connector | 43F |
| X35/6 | Instrument panel and module box electrical connector | 5E |
| X35/6 | Instrument panel and module box electrical connector | 8E |
