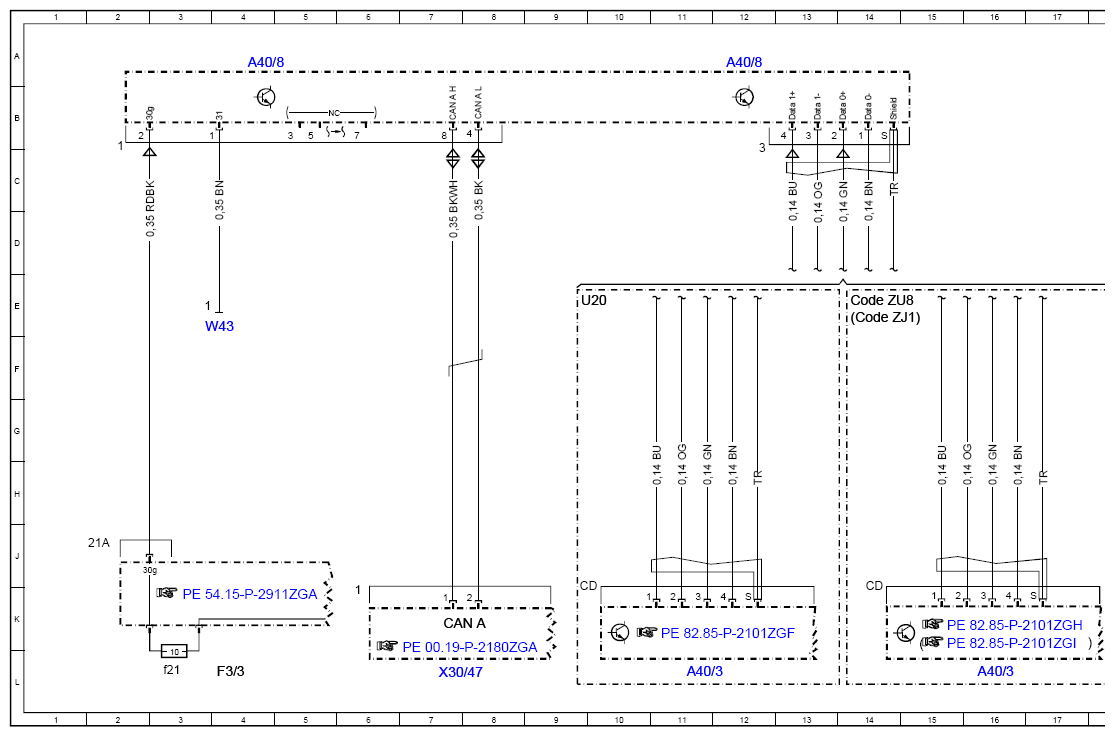

Wiring Diagram For Audio/COMAND Display - PE82.00-P-2080-97ZGB
Model 463
as of model year 2017 up to model year 2019
Control unit A40/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 24L |
| A40/3 | COMAND control unit | 11L |
| A40/3 | COMAND control unit | 16L |
| A40/8 | Audio/COMAND display | 4A |
| A40/8 | Audio/COMAND display | 12A |
| CAN A | Telematics CAN | 7K |
| Code ZJ1 | Japan version | 14E |
| Code ZU8 | USA version | 14E |
| F3/3 | Cockpit circuit 30g fuse box | 4L |
| F3/3f21 | Fuse 21 | 3L |
| U20 | Valid for all (except USA and Japan) | 9E |
| W43 | Ground point (firewall) | 4E |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 7L |
