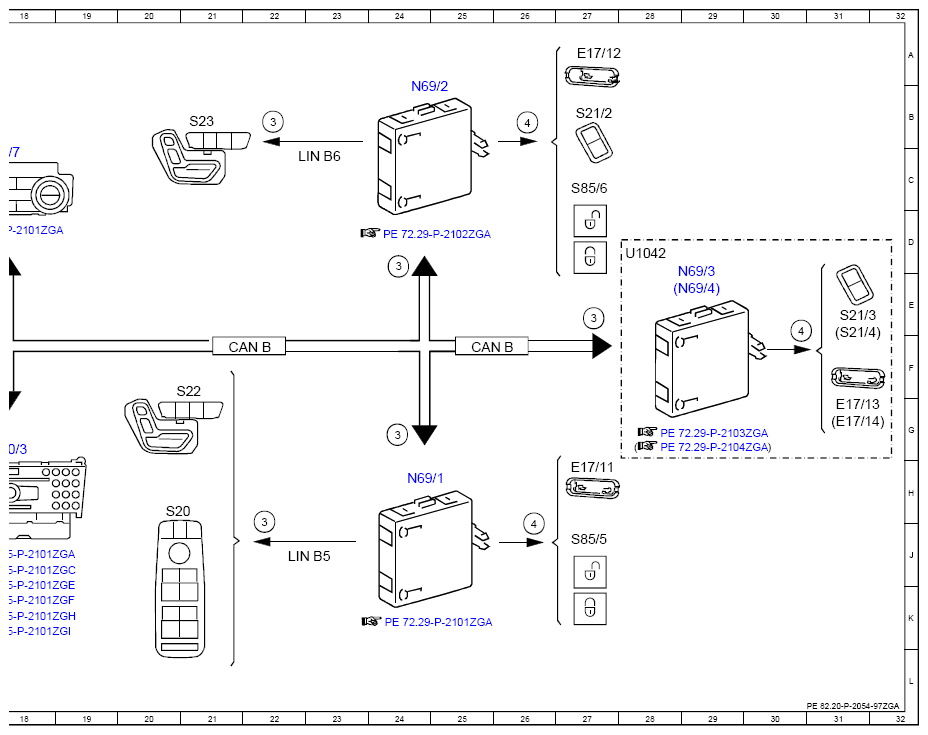

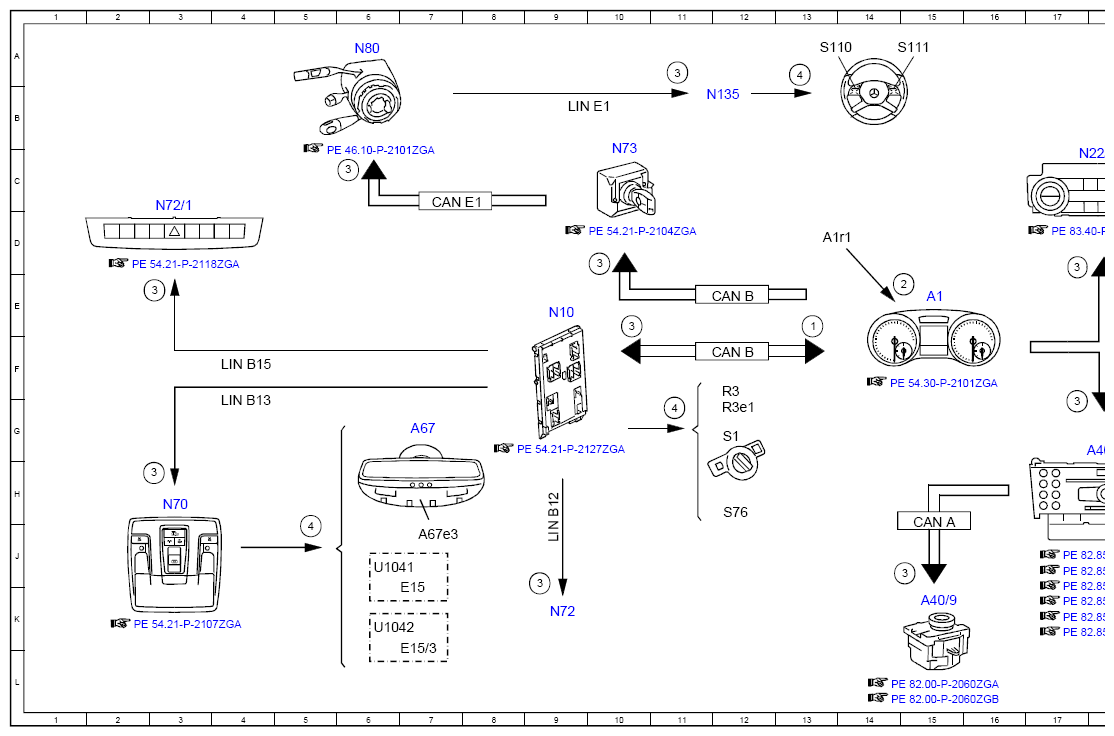

Search And Symbol Illumination Electrical Function Schematic - PE82.20-P-2054-97ZGA
Model 463 (except 463.342)
as of model year 2013 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Standing lights, status | 13E |
| 2 | Instrument illumination brightness control, status | 15E |
| 3 | Circuit 58d, status | 3H |
| 3 | Circuit 58d, status | 22J |
| 3 | Circuit 58d, status | 17G |
| 3 | Circuit 58d, status | 3E |
| 3 | Circuit 58d, status | 10E |
| 3 | Circuit 58d, status | 6C |
| 3 | Circuit 58d, status | 17D |
| 3 | Circuit 58d, status | 11A |
| 3 | Circuit 58d, status | 22B |
| 3 | Circuit 58d, status | 24G |
| 3 | Circuit 58d, status | 15J |
| 3 | Circuit 58d, status | 27E |
| 3 | Circuit 58d, status | 24D |
| 3 | Circuit 58d, status | 9J |
| 3 | Circuit 58d, status | 10D |
| 4 | Symbol and ambiance illumination, actuation | 26J |
| 4 | Symbol and ambiance illumination, actuation | 26B |
| 4 | Symbol and ambiance illumination, actuation | 13A |
| 4 | Symbol and ambiance illumination, actuation | 11G |
| 4 | Symbol and ambiance illumination, actuation | 5J |
| 4 | Symbol and ambiance illumination, actuation | 30E |
| A1 | Instrument cluster | 15E |
| A1r1 | Instrument illumination variable resistor | 13D |
| A40/3 | COMAND control unit | 18G |
| A40/9 | Audio/COMAND control panel | 15K |
| A67 | Inside rearview mirror unit | 7G |
| A67e3 | Ambient lamp | 7J |
| CAN A | Telematics CAN | 15J |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 25F |
| CAN B | Interior CAN | 12E |
| CAN E1 | Chassis CAN 1 | 7C |
| E15 | Dome lamp | 7K |
| E15/3 | Rear dome lamp | 7L |
| E17/11 | Left front door inside handle illumination | 27H |
| E17/12 | Right front door inside handle illumination | 27A |
| E17/13 | Left rear inside door handle illumination | 31G |
| E17/14 | Right rear door inside handle illumination | 31G |
| LIN B12 | Center console switch LIN | 9H |
| LIN B13 | Roof LIN | 4G |
| LIN B15 | Battery sensor LIN | 4F |
| LIN B5 | Left front door LIN | 22J |
| LIN B6 | Right front door LIN | 23C |
| LIN E1 | Steering LIN | 9B |
| N10 | SAM control unit | 9E |
| N135 | Steering wheel electronics | 11B |
| N22/7 | Climate control and operating unit | 17C |
| N69/1 | Left front door control unit | 24H |
| N69/2 | Right front door control unit | 24B |
| N69/3 | Rear left door control unit | 29E |
| N69/4 | Right rear door control unit | 29E |
| N70 | Overhead control panel control unit | 3H |
| N72 | Lower control panel control unit | 9K |
| N72/1 | Upper control panel control unit | 3C |
| N73 | Electronic ignition switch control unit | 10C |
| N80 | Steering column module control unit | 6A |
| R3 | Front cigarette lighter with ashtray illumination | 12F |
| R3e1 | Illumination | 12G |
| S1 | Light switch module | 12G |
| S110 | Left multifunction steering wheel button group | 13A |
| S111 | Right multifunction steering wheel button group | 15A |
| S20 | Driver-side power window and outside mirror adjustment switch group | 20H |
| S21/2 | Passenger-side power window switch | 27B |
| S21/3 | Left rear power window switch | 31E |
| S21/4 | Right rear power window switch | 31F |
| S22 | Left front seat adjustment switch group | 21F |
| S23 | Right front seat adjustment switch group | 21B |
| S76 | Differential lock switch group | 12H |
| S85/5 | Left front door central locking interior switch | 27J |
| S85/6 | Right front door central locking interior switch | 27C |
| U1041 | Valid for model 463.202 | 6J |
| U1042 | Not valid for model 463.202 | 6K |
| U1042 | Not valid for model 463.202 | 28D |
