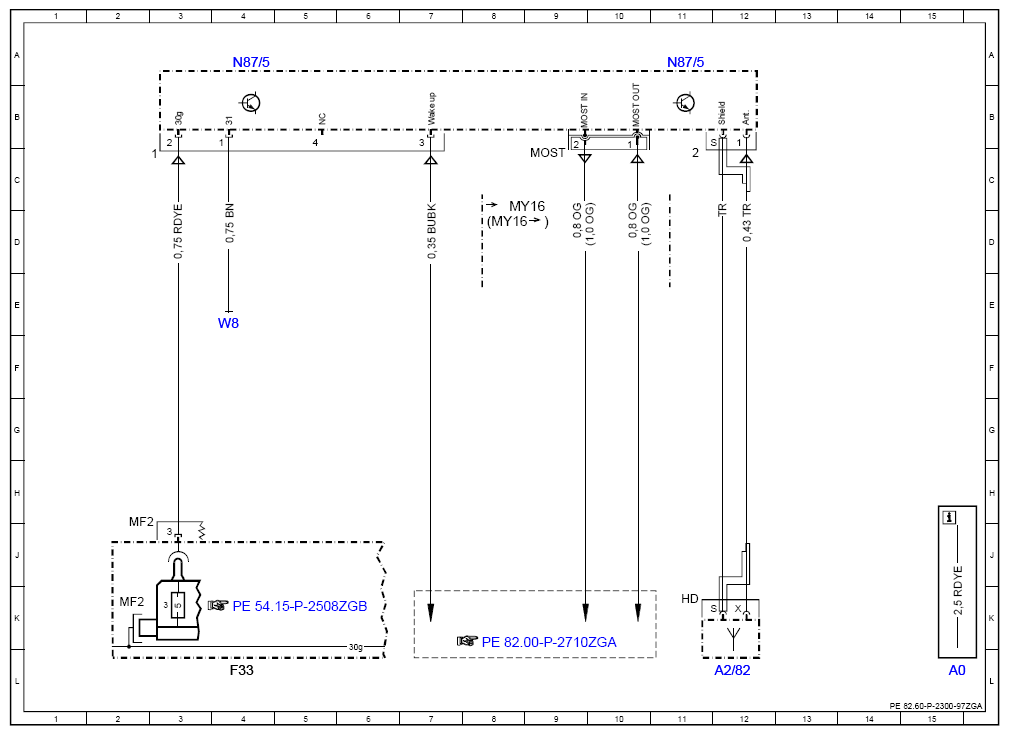

Satellite Digital Audio Radio System (SDAR) Wiring Diagram - PE82.60-P-2300-97ZGA
Model 463
as of model year 2013 up to model year 2017
with code ZU8 (National version for USA)
/YoM 12 model refinement package, control unit N87/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2/82 | Satellite digital audio radio (SDAR) antenna | 12L |
| F33 | Battery compartment prefuse box | 4L |
| F33MF2 | Multiple fuse 2 | 2K |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 4A |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 11A |
| W8 | Liftgate ground point | 4E |
