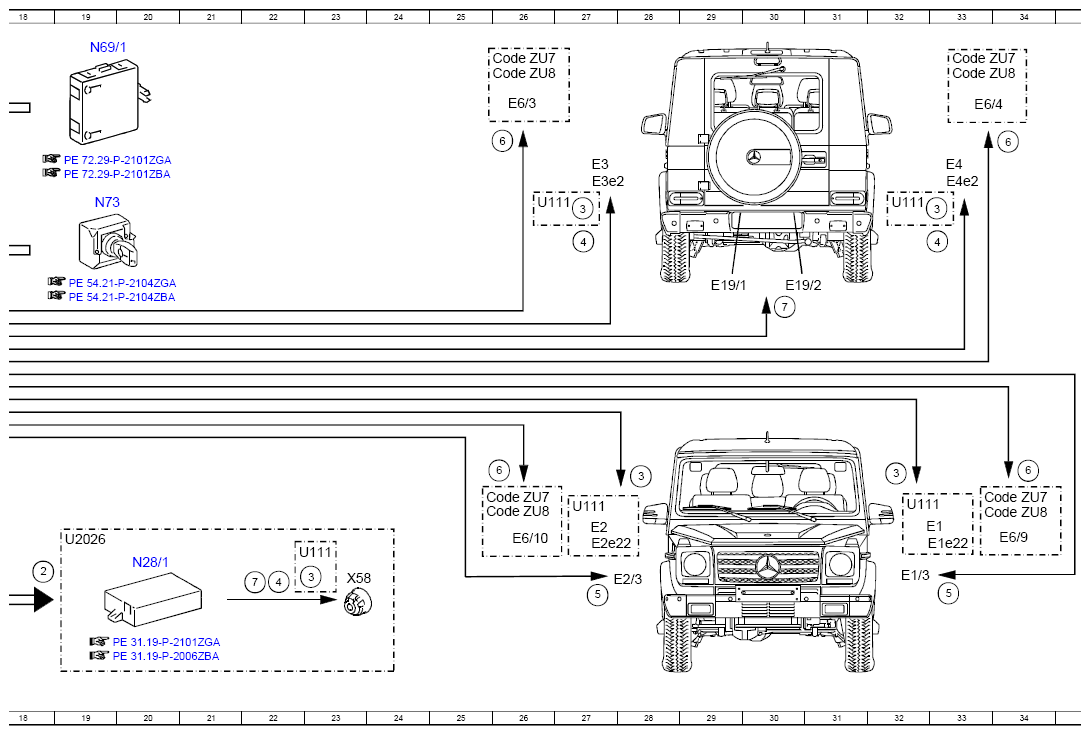

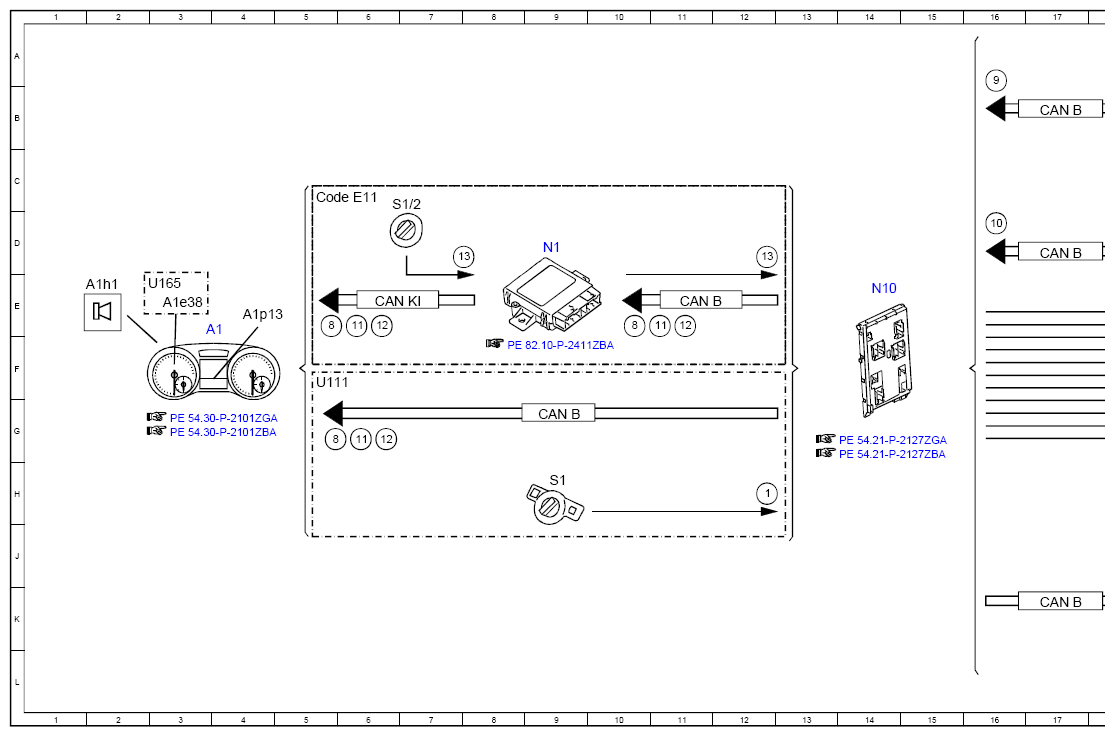

Electrical Function Schematic, Standing Light/Parking Lights Actuation - PE82.10-P-2054-97ZGA
Model 463 (except 463.342)
as of model year 2013 up to model year 2019
Model 463.342
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 12H |
| 10 | Circuit 15, status | 16C |
| 11 | Warning tone, request | 6G |
| 11 | Warning tone, request | 6E |
| 11 | Warning tone, request | 11E |
| 12 | Instrument cluster message, request | 6G |
| 12 | Instrument cluster message, request | 6E |
| 12 | Instrument cluster message, request | 11E |
| 13 | Stealth lights rotary light switch, status | 8D |
| 13 | Stealth lights rotary light switch, status | 12D |
| 2 | Standing and parking lights, request | 18K |
| 3 | Parking lights, actuation | 23J |
| 3 | Parking lights, actuation | 28H |
| 3 | Parking lights, actuation | 27D |
| 3 | Parking lights, actuation | 32H |
| 3 | Parking lights, actuation | 33D |
| 4 | Standing lights, actuation | 27D |
| 4 | Standing lights, actuation | 33D |
| 4 | Standing lights, actuation | 22K |
| 5 | Daytime running lights, actuation | 27K |
| 5 | Daytime running lights, actuation | 33K |
| 6 | Side-marker lamp, actuation | 26H |
| 6 | Side-marker lamp, actuation | 26B |
| 6 | Side-marker lamp, actuation | 34H |
| 6 | Side-marker lamp, actuation | 34B |
| 7 | License plate lamp, actuation | 22K |
| 7 | License plate lamp, actuation | 30E |
| 8 | Standing lights indicator lamp, request | 5G |
| 8 | Standing lights indicator lamp, request | 5E |
| 8 | Standing lights indicator lamp, request | 10E |
| 9 | Door rotary tumbler switch, status | 16B |
| A1 | Instrument cluster | 3E |
| A1e38 | Standing lamps indicator lamp | 3E |
| A1h1 | Warning buzzer | 2E |
| A1p13 | Multifunction display | 4E |
| CAN B | Interior CAN | 9G |
| CAN B | Interior CAN | 11E |
| CAN B | Interior CAN | 17K |
| CAN B | Interior CAN | 17D |
| CAN B | Interior CAN | 17B |
| CAN KI | Instrument cluster CAN | 6E |
| Code E11 | Stealth lights with convoy marking | 5C |
| Code ZU7 | Canada version | 25H |
| Code ZU7 | Canada version | 26A |
| Code ZU7 | Canada version | 33H |
| Code ZU7 | Canada version | 33A |
| Code ZU8 | USA version | 25H |
| Code ZU8 | USA version | 26A |
| Code ZU8 | USA version | 33H |
| Code ZU8 | USA version | 33A |
| E1 | Left front lamp unit | 32J |
| E1/3 | Left daytime running lamps headlamp | 32J |
| E19/1 | Left license plate lamp | 29E |
| E19/2 | Right license plate lamp | 30E |
| E1e22 | Left front parking light | 32J |
| E2 | Right front lamp unit | 27J |
| E2/3 | Right daytime running lamps headlamp | 27J |
| E2e22 | Right front parking light | 27J |
| E3 | Left rear lamp unit | 27C |
| E3e2 | Left tail lamp and parking lamp | 27C |
| E4 | Right rear lamp unit | 33C |
| E4e2 | Right tail lamp and parking lamp | 33C |
| E6/10 | Right front side-marker lamp | 26J |
| E6/3 | Left rear side-marker lamp | 26B |
| E6/4 | Right rear side-marker lamp | 33B |
| E6/9 | Left front side-marker lamp | 34J |
| N1 | Stealth lights control unit | 9D |
| N10 | SAM control unit | 14E |
| N28/1 | Trailer recognition control unit | 20J |
| N69/1 | Left front door control unit | 19A |
| N73 | Electronic ignition switch control unit | 19C |
| S1 | Exterior lights switch | 9H |
| S1/2 | Stealth light rotary light switch | 6C |
| U111 | Not valid for code E11 (Stealth lights with convoy marking) | 5F |
| U111 | Not valid for code E11 (Stealth lights with convoy marking) | 22J |
| U111 | Not valid for code E11 (Stealth lights with convoy marking) | 27H |
| U111 | Not valid for code E11 (Stealth lights with convoy marking) | 26C |
| U111 | Not valid for code E11 (Stealth lights with convoy marking) | 32H |
| U111 | Not valid for code E11 (Stealth lights with convoy marking) | 32C |
| U165 | Valid for AMG | 2E |
| U2026 | Not valid for model 463.242 | 19J |
| X58 | Trailer socket | 23J |
