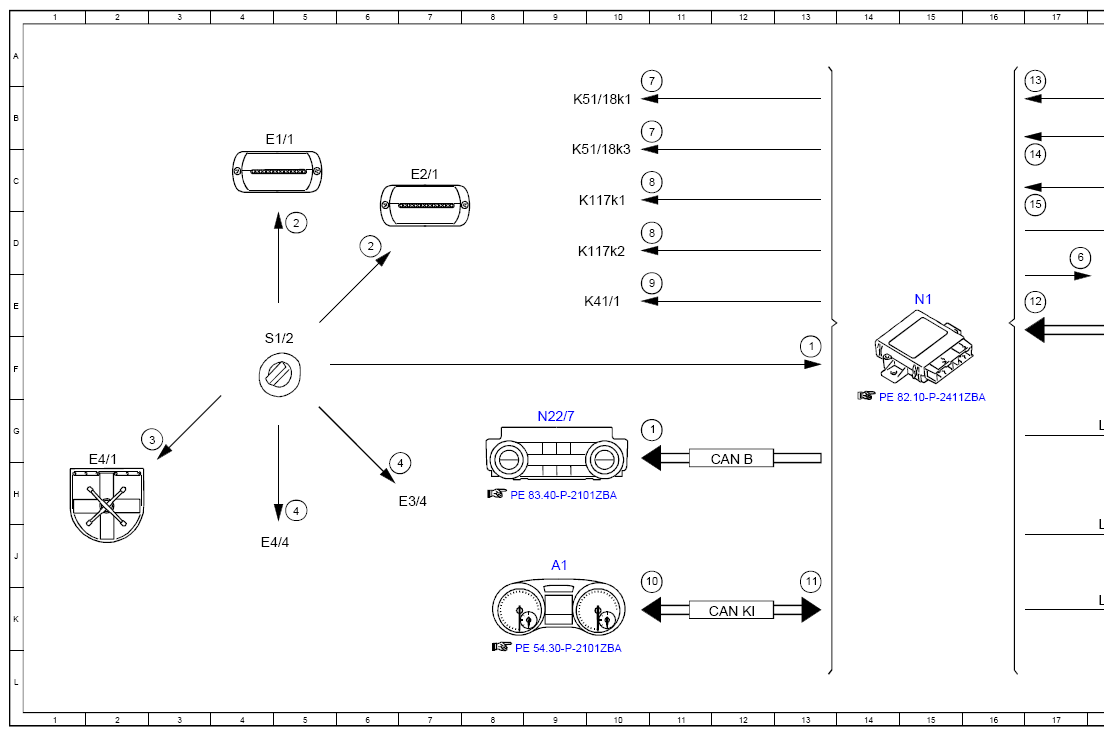

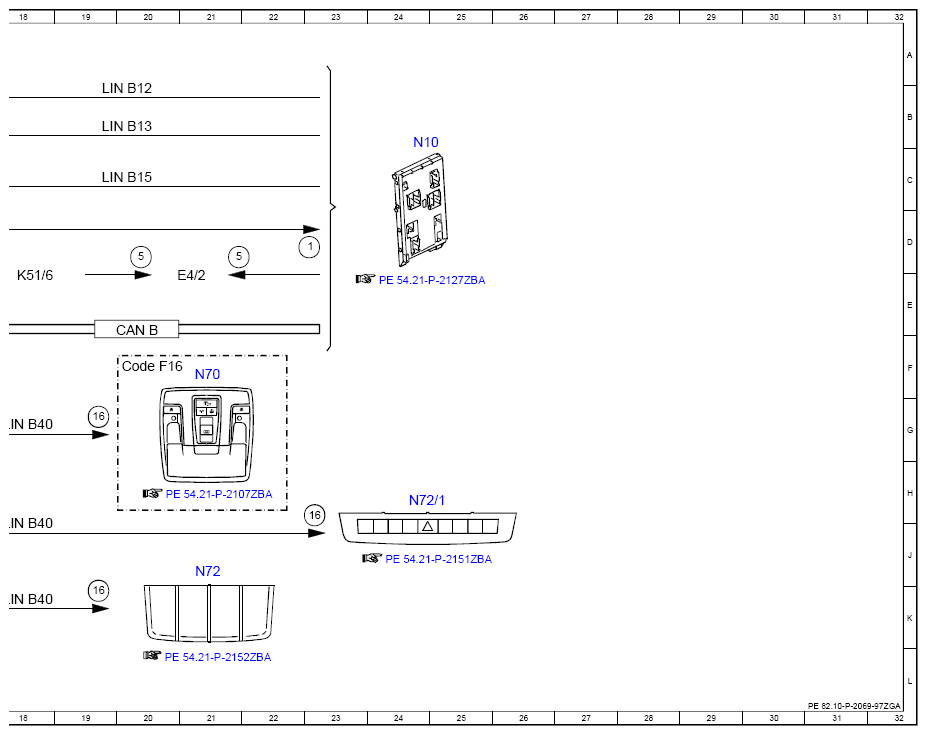

Electrical Function Schematic For Stealth Lights Actuation - PE82.10-P-2069-97ZGA
Model 463
with code E11 (Blackout lighting with convoy light)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Stealth lights rotary light switch, status | 11H |
| 1 | Stealth lights rotary light switch, status | 13F |
| 1 | Stealth lights rotary light switch, status | 23D |
| 10 | Light failure warnings off, signal | 11K |
| 11 | Circuit 58d, status | 13K |
| 12 | Light failure warnings, signal | 17E |
| 13 | Lower control panel control unit function illumination, actuation | 17B |
| 14 | Overhead control panel function illumination, actuation | 17C |
| 15 | Upper control panel control unit function illumination, actuation | 17C |
| 16 | Function illumination off, signal | 19K |
| 16 | Function illumination off, signal | 19G |
| 16 | Function illumination off, signal | 23J |
| 2 | Stealth headlamp, actuation | 5D |
| 2 | Stealth headlamp, actuation | 6D |
| 3 | Convoy marking, actuation | 3G |
| 4 | Stealth taillight, actuation | 5J |
| 4 | Stealth taillight, actuation | 7H |
| 5 | Stealth brake light, actuation | 20D |
| 5 | Stealth brake light, actuation | 22D |
| 6 | Stealth lights relay, actuation | 17D |
| 7 | Stealth lights ground connection relay, actuation | 11B |
| 8 | Interior illumination relay, actuation | 11C |
| 8 | Interior illumination relay, actuation | 11D |
| 9 | Terminal 15R relay, actuation | 11D |
| A1 | Instrument cluster | 9J |
| CAN B | Interior CAN | 12H |
| CAN B | Interior CAN | 20E |
| CAN KI | Instrument cluster CAN | 12K |
| Code F16 | Electric sliding roof with tilt function | 20F |
| E1/1 | Left stealth headlamp | 4B |
| E2/1 | Right stealth headlamp | 7C |
| E3/4 | Left stealth tail lamp | 7H |
| E4/1 | Convoy marking | 2H |
| E4/2 | Stealth stop lamp | 21E |
| E4/4 | Right stealth tail lamp | 4J |
| K117k1 | Interior lights relay 1 | 10C |
| K117k2 | Interior lights relay 2 | 10D |
| K41/1 | Circuit 15R relay | 10E |
| K51/18k1 | Stealth lights ground connection relay 1 | 10B |
| K51/18k3 | Stealth lights ground connection relay 3 | 10C |
| K51/6 | Stealth stop lamp relay | 18E |
| LIN B12 | Center console switch LIN | 19B |
| LIN B13 | Roof LIN | 19B |
| LIN B15 | Battery sensor LIN | 19C |
| LIN B40 | Stealth lights LIN | 18K |
| LIN B40 | Stealth lights LIN | 18J |
| LIN B40 | Stealth lights LIN | 18G |
| N1 | Stealth lights control unit | 15E |
| N10 | SAM control unit | 24B |
| N22/7 | Climate control and operating unit | 9G |
| N70 | Overhead control panel control unit | 21F |
| N72 | Lower control panel control unit | 21J |
| N72/1 | Upper control panel control unit | 24H |
| S1/2 | Stealth light rotary light switch | 4F |
