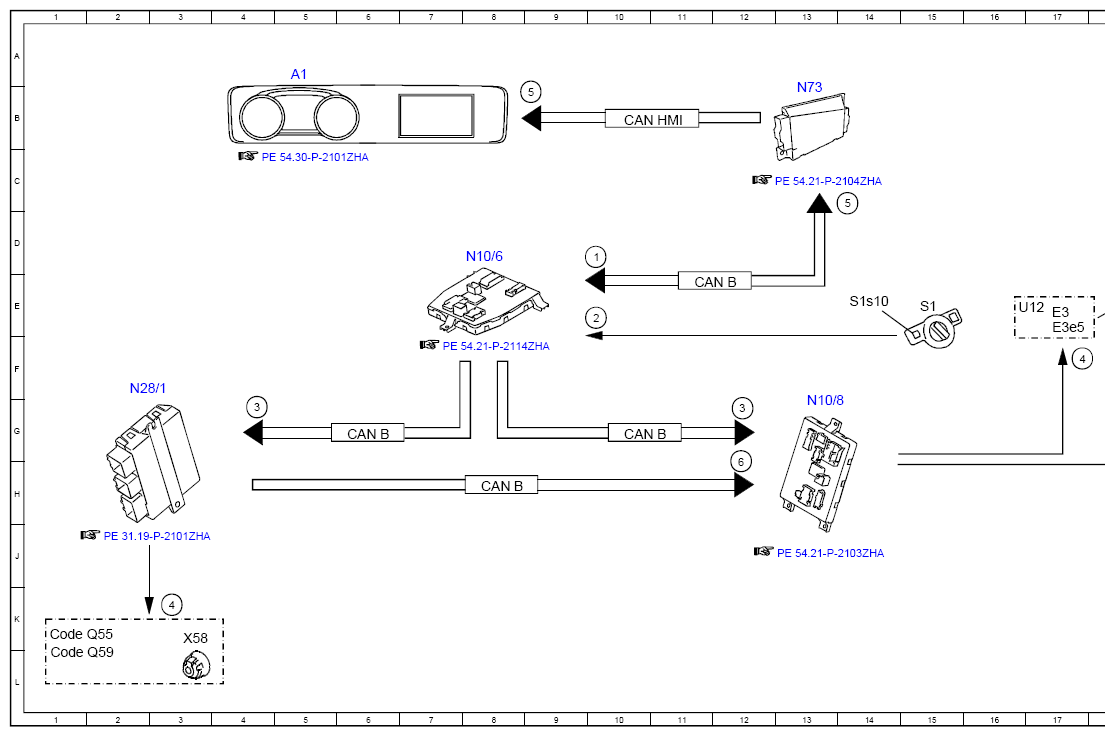

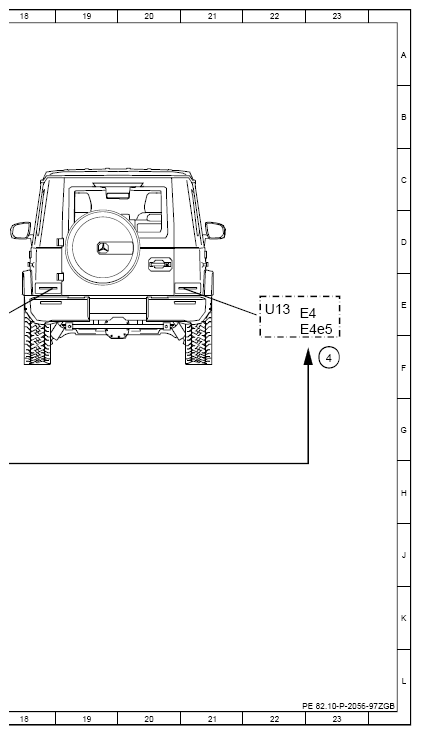

Electrical Function Schematic For Front Fog Light Actuation - PE82.10-P-2056-97ZGB
Model 463 (except 463.342)
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10D |
| 2 | Rear fog light button, status | 10E |
| 3 | Rear fog light, request | 12G |
| 3 | Rear fog light, request | 4G |
| 4 | Rear fog light, actuation | 3K |
| 4 | Rear fog light, actuation | 17F |
| 4 | Rear fog light, actuation | 23F |
| 5 | Rear fog light indicator lamp, request | 9B |
| 5 | Rear fog light indicator lamp, request | 14C |
| 6 | Trailer recognition, status | 12H |
| A1 | Instrument cluster | 5A |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 11E |
| CAN B | Interior CAN | 6G |
| CAN B | Interior CAN | 10G |
| CAN HMI | User interface CAN | 10B |
| Code Q55 | Trailer hitch ball head, high | 1K |
| Code Q59 | Trailer hitch, removable | 1L |
| E3 | Left rear lamp unit | 17E |
| E3e5 | Left rear fog lamp | 17E |
| E4 | Right tail lamp | 22E |
| E4e5 | Right rear fog lamp | 23E |
| N10/6 | Front SAM control unit | 8D |
| N10/8 | Rear control unit | 13G |
| N28/1 | Trailer recognition control unit | 2F |
| N73 | Electronic ignition switch control unit | 13B |
| S1 | Light switch module | 15E |
| S1s10 | Rear fog light button | 14E |
| U12 | Valid for left-hand drive vehicles | 16E |
| U13 | Valid for right-hand drive vehicles | 22E |
| X58 | Trailer socket | 3K |
