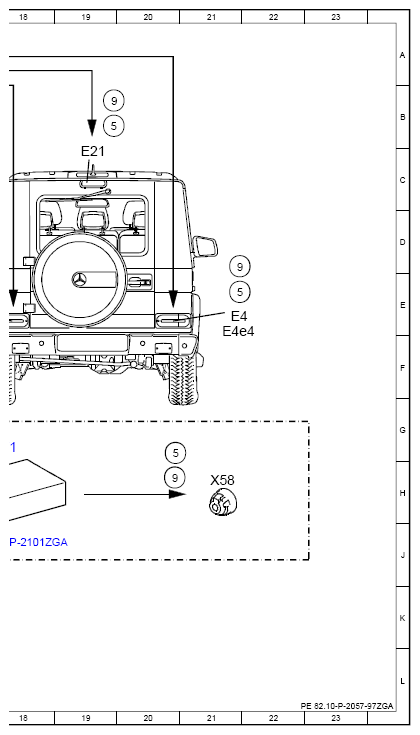

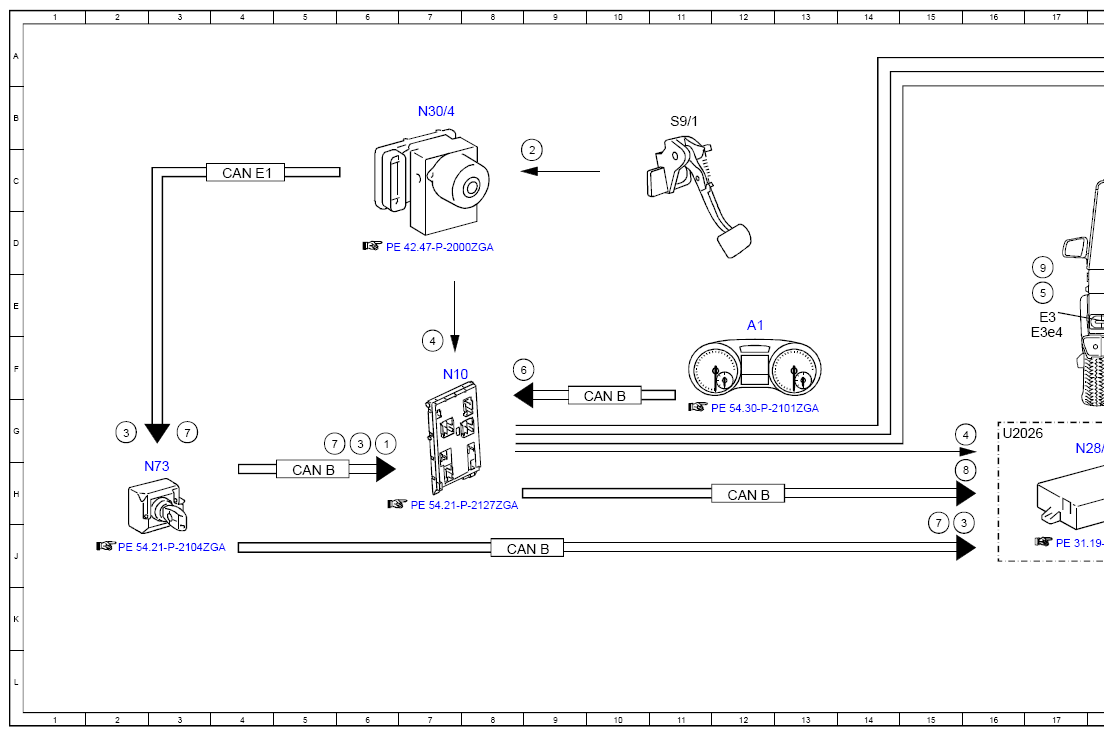

Electrical Function Schematic For Brake Light Actuation - PE82.10-P-2057-97ZGA
Model 463 (except 463.342)
as of model year 2013 up to model year 2019
Model 463.342
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6G |
| 2 | Brake light switch, status | 9C |
| 3 | Service brake, status | 6G |
| 3 | Service brake, status | 16J |
| 3 | Service brake, status | 2G |
| 4 | Circuit 54, status | 7F |
| 4 | Circuit 54, status | 16G |
| 5 | Brake lights, actuation | 17E |
| 5 | Brake lights, actuation | 21E |
| 5 | Brake lights, actuation | 19B |
| 5 | Brake lights, actuation | 20G |
| 6 | Vehicle speed, signal | 8F |
| 7 | Emergency stop, signal | 3G |
| 7 | Emergency stop, signal | 15J |
| 7 | Emergency stop, signal | 5G |
| 8 | Brake light dark phase, signal | 16H |
| 9 | Flashing brake lights, actuation | 19B |
| 9 | Flashing brake lights, actuation | 17D |
| 9 | Flashing brake lights, actuation | 21D |
| 9 | Flashing brake lights, actuation | 20H |
| A1 | Instrument cluster | 12E |
| CAN B | Interior CAN | 5H |
| CAN B | Interior CAN | 8J |
| CAN B | Interior CAN | 10G |
| CAN B | Interior CAN | 12H |
| CAN E1 | Chassis CAN 1 | 4C |
| E21 | Center high-mounted stop lamp | 19C |
| E3 | Left tail lamp | 17E |
| E3e4 | Left stop lamp | 17F |
| E4 | Right rear lamp unit | 21E |
| E4e4 | Right stop lamp | 21F |
| N10 | SAM control unit | 7F |
| N28/1 | Trailer recognition control unit | 17G |
| N30/4 | ESP control unit | 7B |
| N73 | EIS [EZS] control unit | 3H |
| S9/1 | Stop lamp switch | 11B |
| U2026 | Not valid for model 463.242 | 16G |
| X58 | Trailer hitch socket (13-pin) | 21H |
