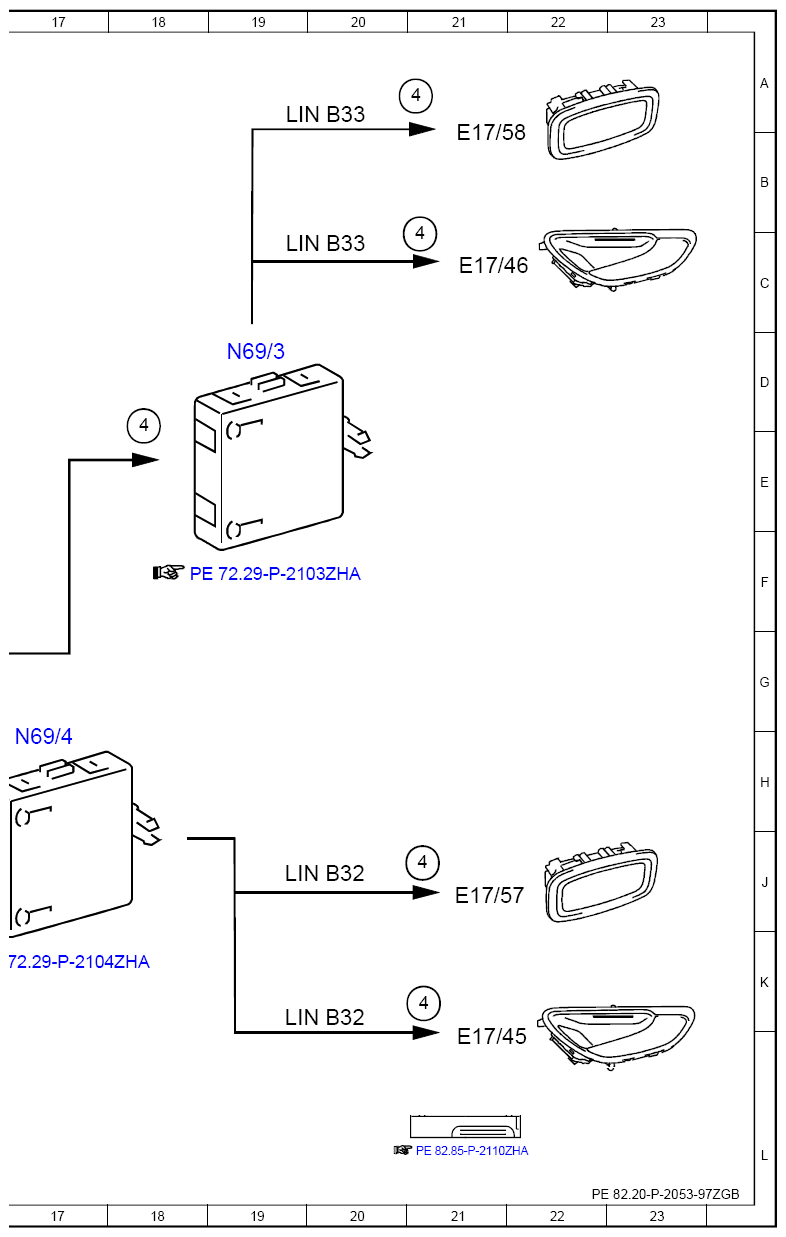

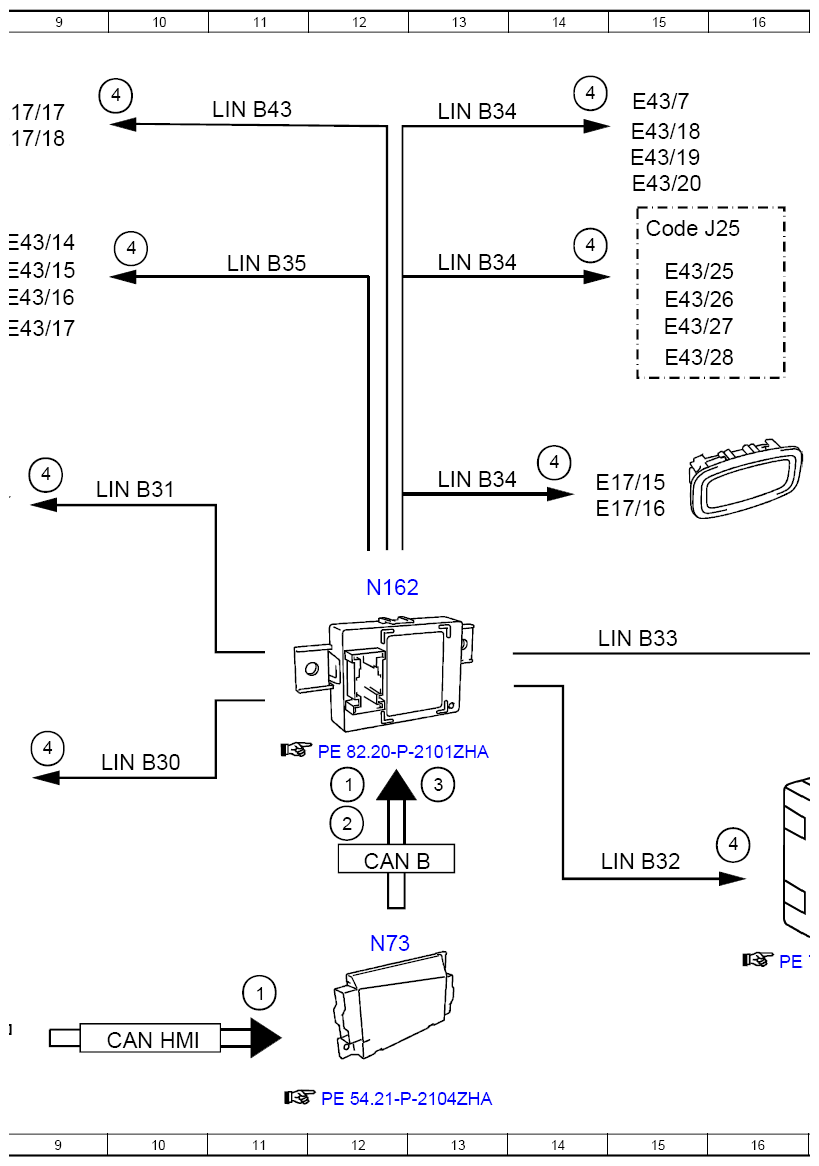

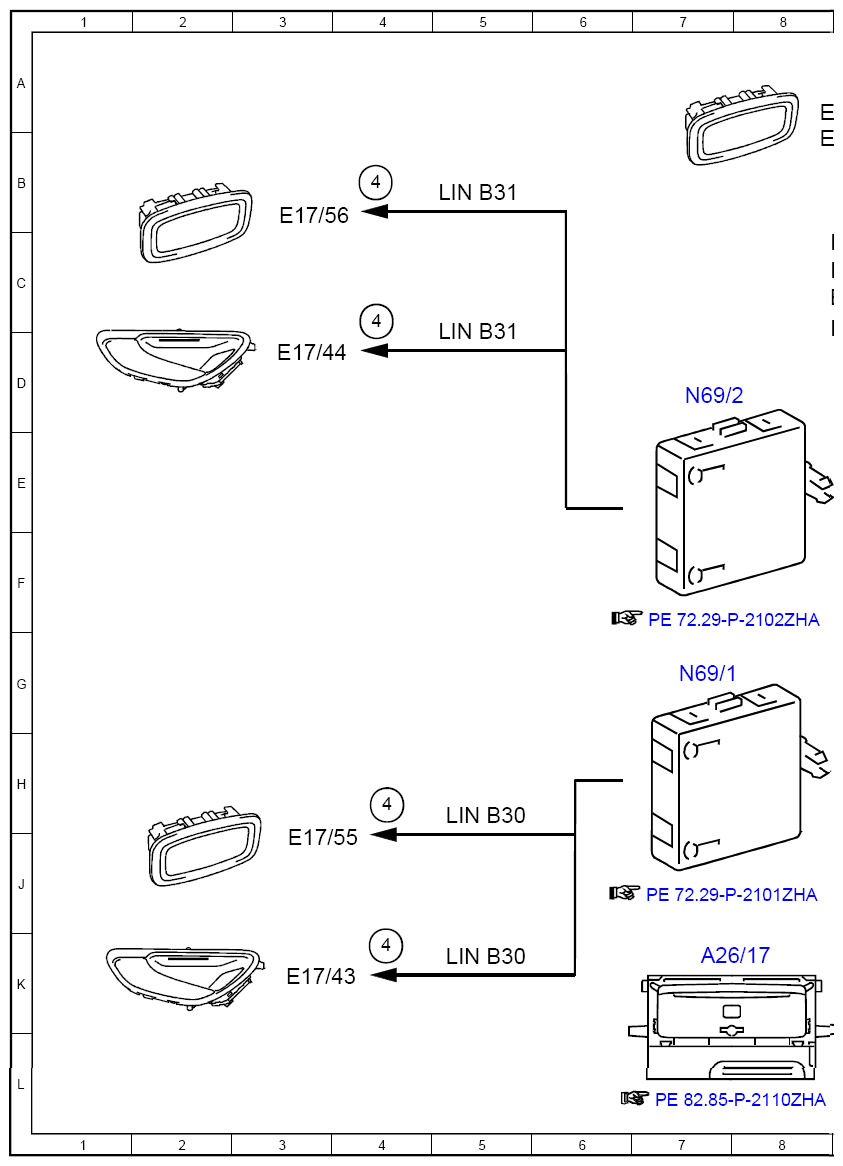

Electrical Function Schematic Ambiance Illumination - PE82.20-P-2053-97ZGB
Model 463 (except 463.342)
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Ambiance illumination settings, status | 12H |
| 1 | Ambiance illumination settings, status | 11L |
| 2 | Circuit 15, status | 12H |
| 3 | Central locking, status | 13H |
| 4 | Ambience illumination, request | 4H |
| 4 | Ambience illumination, request | 4K |
| 4 | Ambience illumination, request | 21A |
| 4 | Ambience illumination, request | 21C |
| 4 | Ambience illumination, request | 4B |
| 4 | Ambience illumination, request | 4C |
| 4 | Ambience illumination, request | 10A |
| 4 | Ambience illumination, request | 10C |
| 4 | Ambience illumination, request | 14A |
| 4 | Ambience illumination, request | 9H |
| 4 | Ambience illumination, request | 9E |
| 4 | Ambience illumination, request | 16J |
| 4 | Ambience illumination, request | 18D |
| 4 | Ambience illumination, request | 21J |
| 4 | Ambience illumination, request | 21K |
| 4 | Ambience illumination, request | 14C |
| 4 | Ambience illumination, request | 14E |
| A26/17 | Head unit | 7K |
| CAN B | Interior CAN | 12J |
| CAN HMI | User interface CAN | 10L |
| Code J25 | Instrument cluster - DIGITAL FULL DISPLAY | 15C |
| E17/15 | Right front footwell lamp | 15E |
| E17/16 | Left front footwell lamp | 15E |
| E17/17 | Left rear footwell lamp | 9A |
| E17/18 | Right rear footwell lamp | 9B |
| E17/43 | Left front door ambiance illumination | 3K |
| E17/44 | Right front door ambiance illumination | 3D |
| E17/45 | Left rear door ambiance illumination | 21L |
| E17/46 | Right rear door ambiance illumination | 21C |
| E17/55 | Left front door handle ambiance illumination | 3J |
| E17/56 | Right front door handle ambiance illumination | 3B |
| E17/57 | Left rear door handle ambiance illumination | 21J |
| E17/58 | Right rear door handle ambiance illumination | 21B |
| E43/14 | Left front center console ambiance illumination | 9C |
| E43/15 | Left rear center console ambiance illumination | 9C |
| E43/16 | Right front center console ambiance illumination | 9C |
| E43/17 | Right rear center console ambiance illumination | 9D |
| E43/18 | Driver-side outside ambient lighting | 15B |
| E43/19 | Passenger-side interior ambiance illumination | 15B |
| E43/20 | Passenger-side exterior ambiance illumination | 15B |
| E43/25 | Inner upper digital instrument cluster full display ambient lighting | 15C |
| E43/26 | Outer upper digital instrument cluster full display ambient lighting | 15C |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 15D |
| E43/28 | Outer lower digital instrument cluster full display ambient lighting | 15D |
| E43/7 | Driver-side inner ambient lighting | 15A |
| LIN B30 | Left front door ambiance illumination LIN | 5H |
| LIN B30 | Left front door ambiance illumination LIN | 5K |
| LIN B30 | Left front door ambiance illumination LIN | 10H |
| LIN B31 | Right front door ambiance illumination LIN | 5B |
| LIN B31 | Right front door ambiance illumination LIN | 5D |
| LIN B31 | Right front door ambiance illumination LIN | 10E |
| LIN B32 | Left rear door ambiance illumination LIN | 15J |
| LIN B32 | Left rear door ambiance illumination LIN | 19J |
| LIN B32 | Left rear door ambiance illumination LIN | 19K |
| LIN B33 | Right rear door ambiance illumination LIN | 19A |
| LIN B33 | Right rear door ambiance illumination LIN | 19C |
| LIN B33 | Right rear door ambiance illumination LIN | 15G |
| LIN B34 | Cockpit ambiance illumination LIN | 13A |
| LIN B34 | Cockpit ambiance illumination LIN | 13C |
| LIN B34 | Cockpit ambiance illumination LIN | 13E |
| LIN B35 | Vehicle interior ambiance illumination LIN | 11C |
| LIN B43 | Rear passenger compartment footwell ambient lighting LIN | 11A |
| N162 | Ambiance illumination control unit | 12F |
| N69/1 | Left front door control unit | 7G |
| N69/2 | Right front door control unit | 7D |
| N69/3 | Left rear door control unit | 19D |
| N69/4 | Right rear door control unit | 17H |
| N73 | Electronic ignition switch control unit | 12K |
