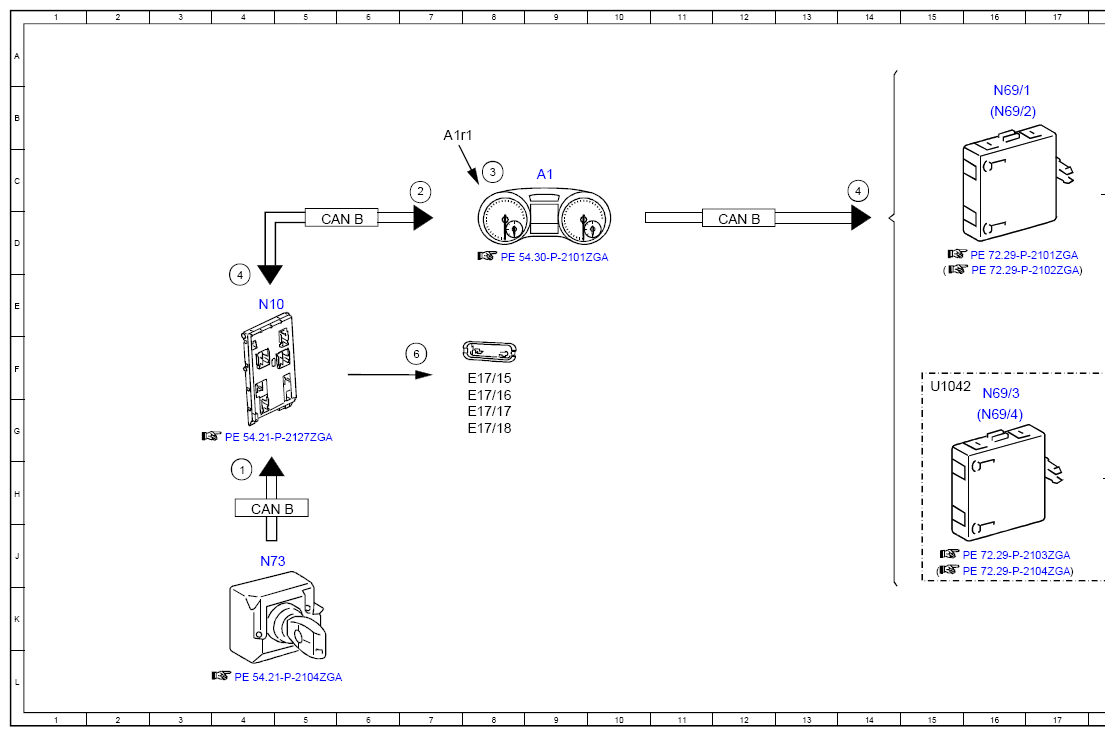

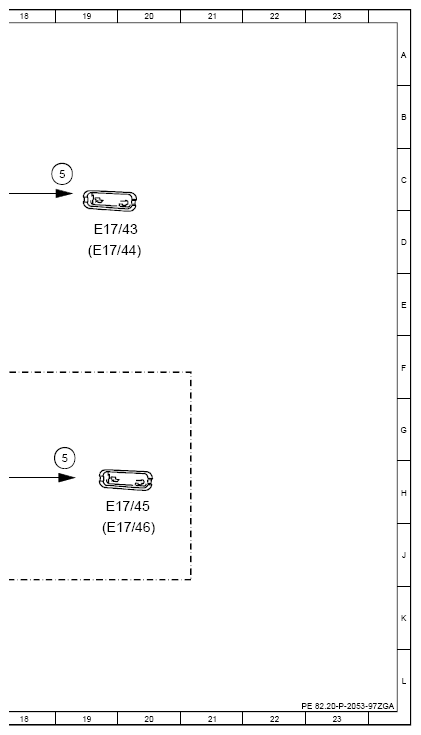

Electrical Function Schematic Ambiance Illumination - PE82.20-P-2053-97ZGA
Model 463 (except 463.342)
as of model year 2013 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 4H |
| 2 | Standing lights, status | 7C |
| 3 | Instrument illumination brightness control, status | 8C |
| 4 | Circuit 58d, status | 4E |
| 4 | Circuit 58d, status | 14C |
| 5 | Ambience illumination, actuation | 19H |
| 5 | Ambience illumination, actuation | 19C |
| 6 | Footwell lamp, actuation | 7F |
| A1 | Instrument cluster | 9C |
| A1r1 | Instrument illumination variable resistor | 7B |
| CAN B | Interior CAN | 4H |
| CAN B | Interior CAN | 12D |
| CAN B | Interior CAN | 5D |
| E17/15 | Right front footwell lamp | 8F |
| E17/16 | Left front footwell lamp | 8F |
| E17/17 | Right front door sill light strip | 8G |
| E17/18 | Right rear footwell lamp | 8G |
| E17/43 | Left front door ambiance illumination | 19D |
| E17/44 | Right front door ambiance illumination | 19D |
| E17/45 | Left rear door ambiance illumination | 19H |
| E17/46 | Right rear door ambiance illumination | 19J |
| N10 | SAM control unit | 4E |
| N69/1 | Left front door control unit | 16B |
| N69/2 | Right front door control unit | 16B |
| N69/3 | Rear left door control unit | 16F |
| N69/4 | Right rear door control unit | 16G |
| N73 | Electronic ignition switch control unit | 4J |
| U1042 | Not valid for model 463.202 | 15F |
