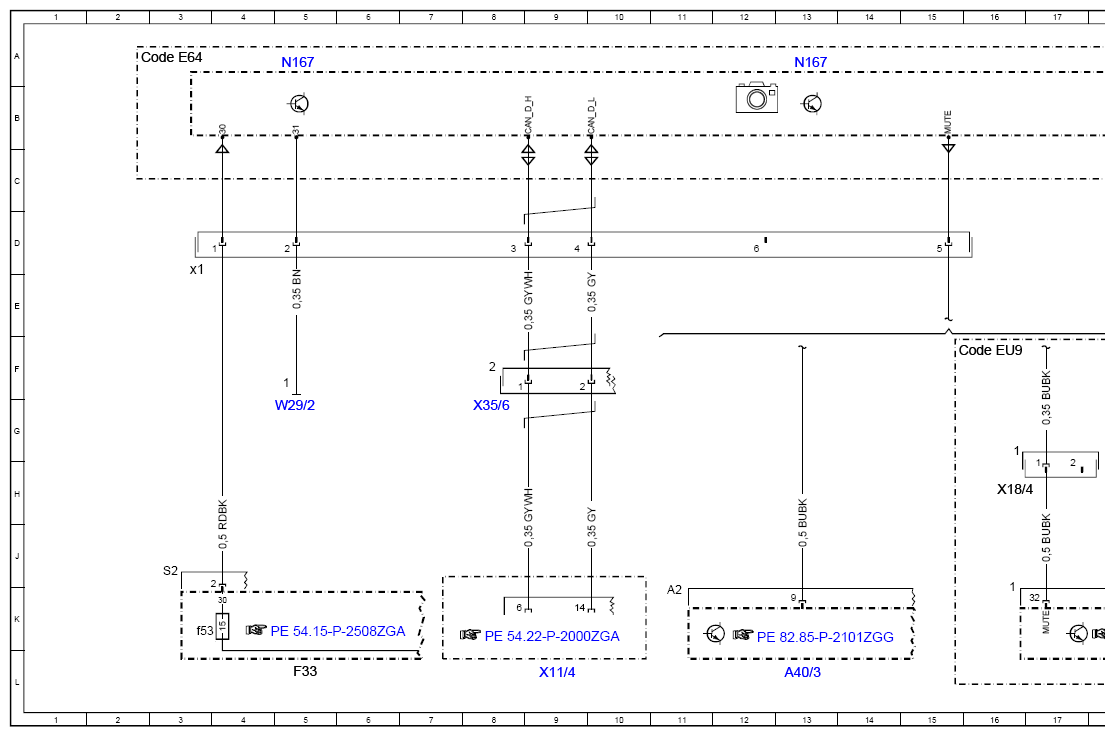

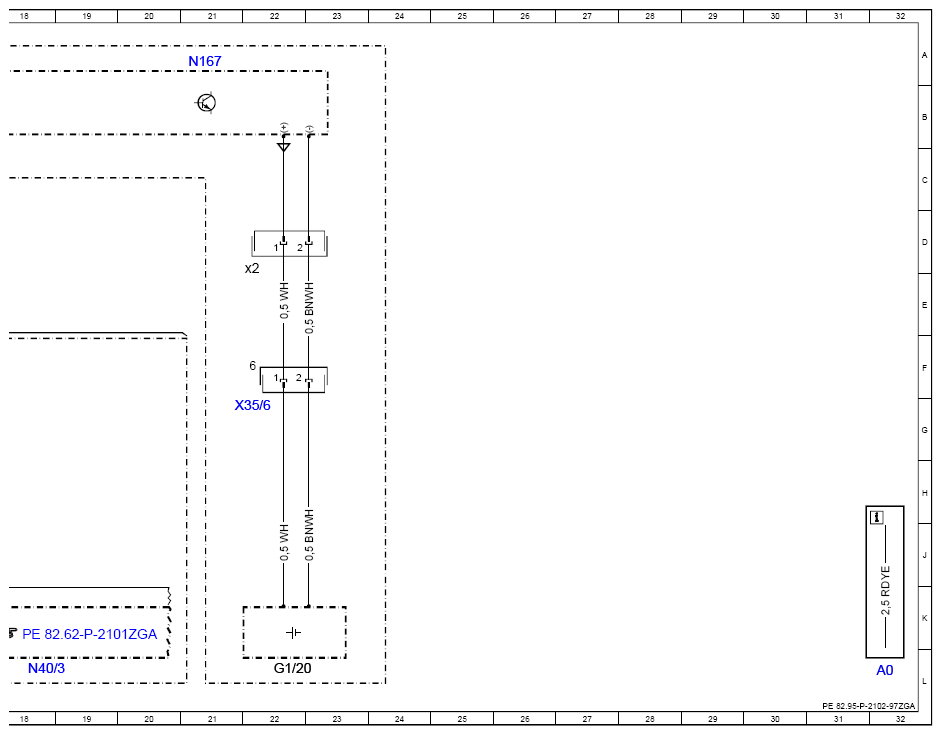

E-Call Control Unit Wiring Diagram, Russia (GLONASS) - PE82.95-P-2102-97ZGA
Model 463
as of model year 2017 up to model year 2019
with code 9U1 (ECALL RUSSIA pre-installation (GLONASS))
with code E64 (ECALL RUSSIA (GLONASS))
Control unit N167
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A40/3 | COMAND control unit | 13L |
| Code E64 | ECALL RUSSIA (GLONASS) | 2A |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 15F |
| F33 | Battery compartment prefuse box | 5L |
| F33f53 | Fuse 53 | 3K |
| G1/20 | E-Call Russia (GLONASS) backup battery | 22L |
| N167 | E-Call Russia (GLONASS) control unit | 5A |
| N167 | E-Call Russia (GLONASS) control unit | 21A |
| N167 | E-Call Russia (GLONASS) control unit | 13A |
| N167x1 | E-Call Russia (GLONASS) control unit electrical connector 1 | 3D |
| N167x2 | E-Call Russia (GLONASS) control unit electrical connector 2 | 22D |
| N40/3 | Sound system amplifier control unit | 18L |
| W29/2 | Right A-pillar ground connection | 5G |
| X11/4 | Diagnostic connector | 9L |
| X18/4 | Electrical connector, sound system | 16H |
| X35/6 | Instrument panel and module box electrical connector | 8G |
| X35/6 | Instrument panel and module box electrical connector | 22G |
