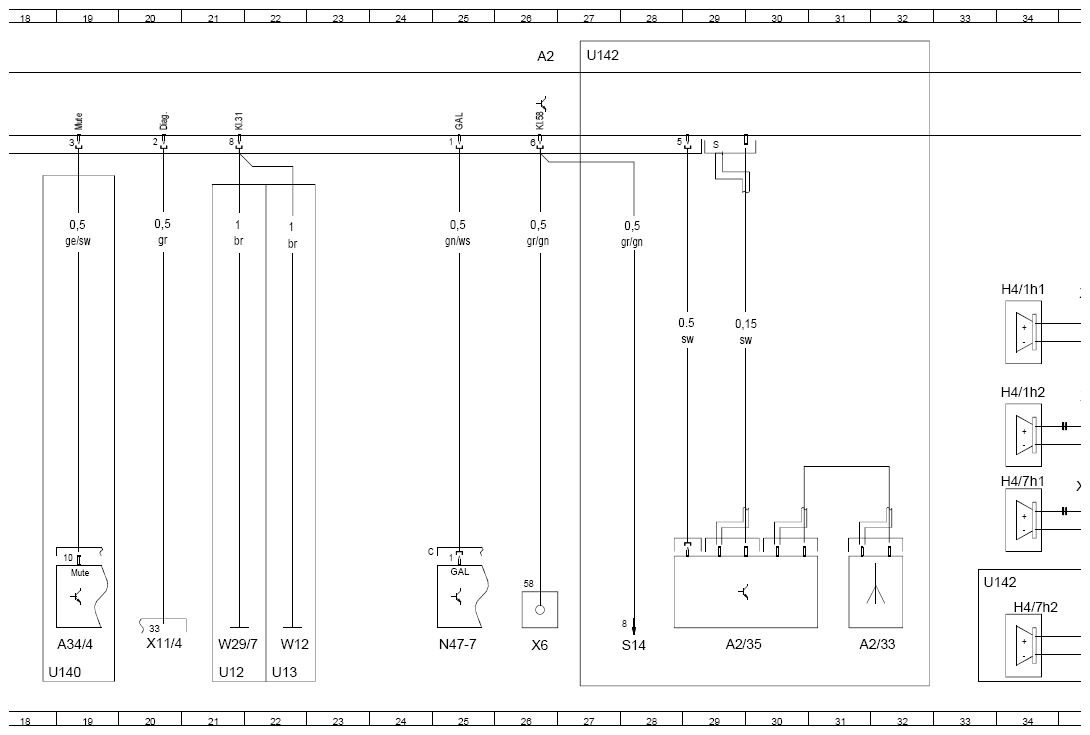

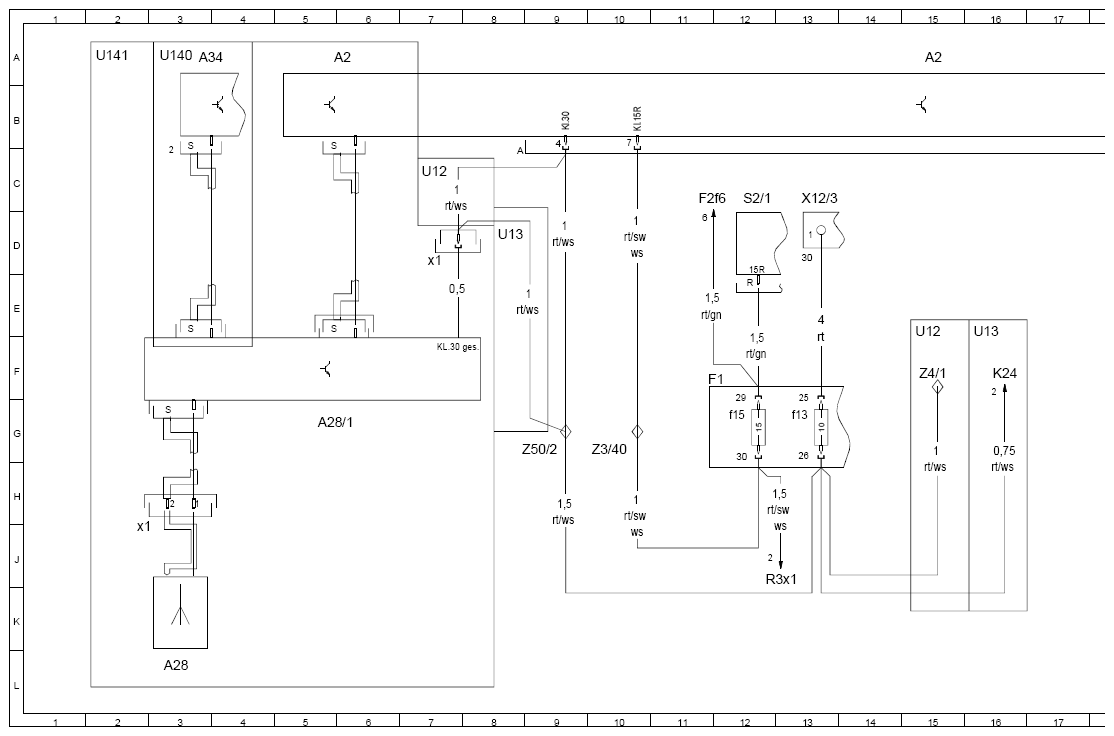

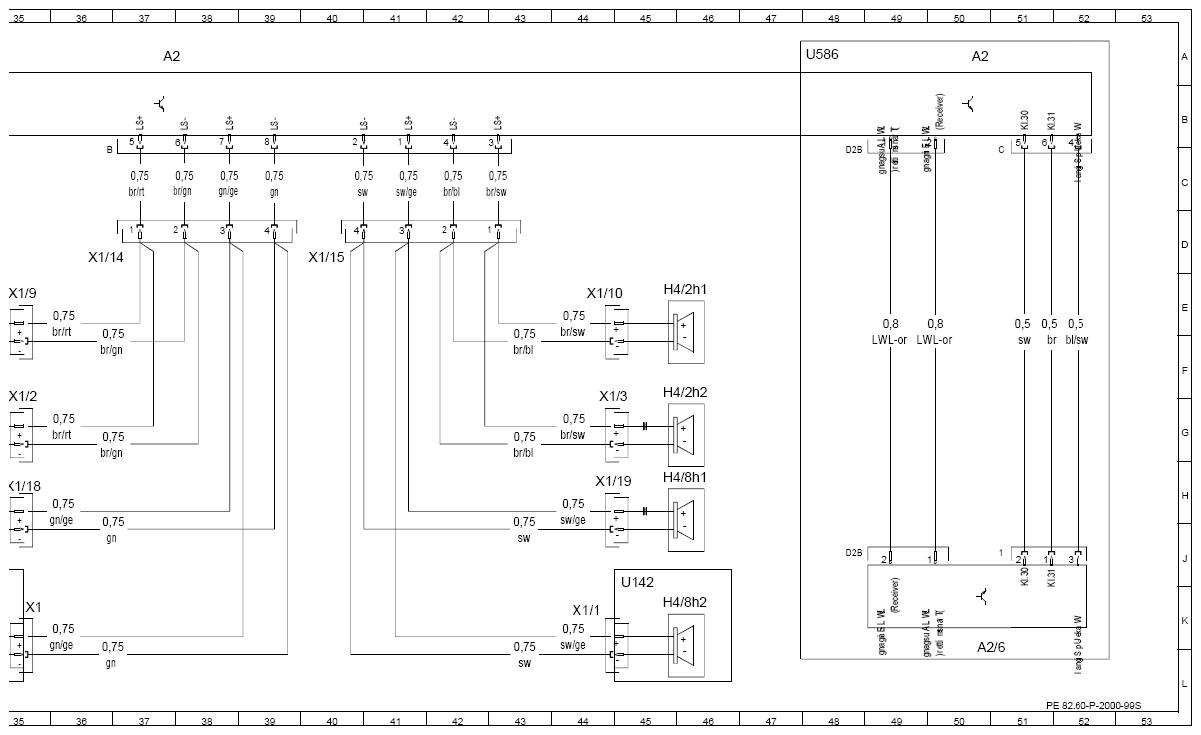

(Wiring Diagram Of Radio - PE82.60-P-2000-99S)
MODEL 463 up to production date 5/31/12 with CODE (EF1) Audio 10 RDS
MODEL 463 up to production date 5/31/12 with CODE (EF2) Audio 10 RDS with CD insertion slot
MODEL 463 up to production date 5/31/12 with CODE (EF3) Audio 30 RDS
MODEL 463 up to production date 5/31/12 with CODE (EF4) Audio 30 Export
| Code: | Designation: | Position: |
|---|---|---|
| A2 | Radio | 8A |
| A2 | Radio | 21A |
| A2 | Radio | 37A |
| A2 | Radio | 53A |
| A2 | Radio | 71A |
| A2/33 | Side window antenna | 44P |
| A2/35 | Side window FM/AM antenna amplifier | 41P |
| A2/6 | CD changer | 71P |
| A28 | Radio and portable CTEL antenna | 4P |
| A28/1 | Radio and portable CTEL antenna splitter | 7K |
| A34 | Telephone handset | 5A |
| A34/4 | Telephone interface | 26P |
| F1 | Fuse box | 16J |
| F2f6 | Fuse 6 | 16E |
| H4/1h1 | Left tweeter | 47G |
| H4/1h2 | Left bass speaker | 47J |
| H4/2h1 | Right tweeter | 64G |
| H4/2h2 | Right bass speaker | 64J |
| H4/7h1 | Left rear door speaker | 47L |
| H4/7h2 | Left rear speaker | 48O |
| H4/8h1 | Right rear door speaker | 64L |
| H4/8h2 | Right rear speaker | 64O |
| K24 | Comfort shift relay | 22J |
| N47-7 | ABS control unit | 35P |
| R3x1 | Cigar lighter connector | 17N |
| S14 | Heated rear window switch | 39P |
| S2/1 | Ignition/starter switch | 17E |
| U12 | Valid for left-hand drive vehicles | 30P |
| U12 | Valid for left-hand drive vehicles | 10D |
| U12 | Valid for left-hand drive vehicles | 21H |
| U13 | Valid for right-hand drive vehicles | 31P |
| U13 | Valid for right-hand drive vehicles | 11E |
| U13 | Valid for right-hand drive vehicles | 22H |
| U140 | Valid for portable CTEL | 26P |
| U140 | Valid for portable CTEL | 4A |
| U141 | Valid for convertibles with portable CTEL and radio | 2A |
| U142 | Not valid for convertible | 38A |
| U142 | Not valid for convertible | 47N |
| U142 | Not valid for convertible | 63N |
| U586 | Valid for CD changer | 67A |
| W12 | Ground (center console) | 31P |
| W29/7 | Ground (steering column) | 30P |
| X1 | Left rear speaker connector | 50O |
| X1/1 | Right rear speaker connector | 62O |
| X1/10 | Right tweeter speaker connector | 62G |
| X1/14 | Left speaker/main wiring harness connector | 51F |
| X1/15 | Right speaker/main wiring harness connector | 56F |
| X1/18 | Left rear door speaker connector | 49L |
| X1/19 | Right rear door speaker connector | 62L |
| X1/2 | Left bass speaker connector | 49J |
| X1/3 | Right bass speaker connector | 62J |
| X1/9 | Left tweeter speaker connector | 49G |
| X11/4 | Data link connector | 28P |
| X12/3 | Circuit 30, 15, 61 terminal block (3-pin) | 18E |
| X6 | Circuit 58 terminal block (2-pin) | 37P |
| Z3/40 | Circuit 15R (fused) connector sleeve (F1f15) | 13K |
| Z4/1 | Circuit 30 (fused) connector sleeve, convenience and rear dome lamp | 21J |
| Z50/2 | Connector sleeve 2 | 12K |
