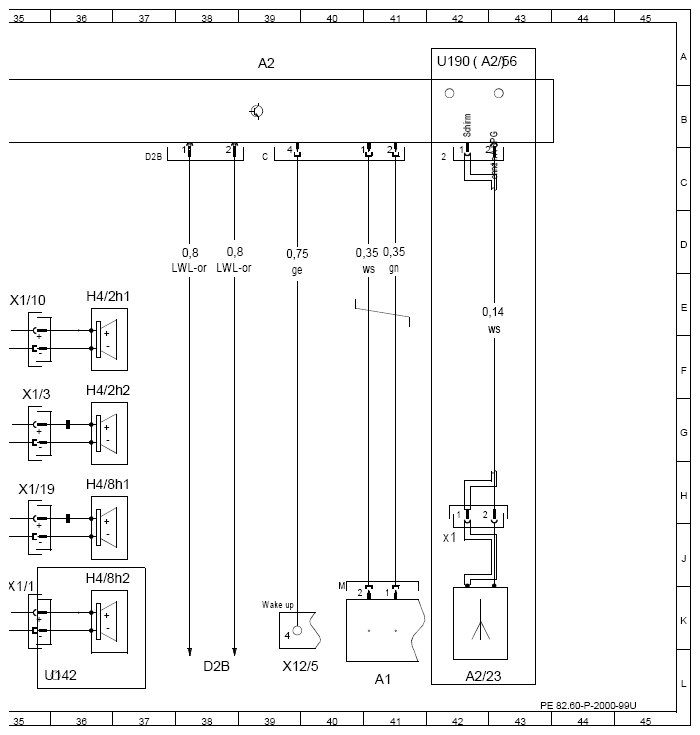

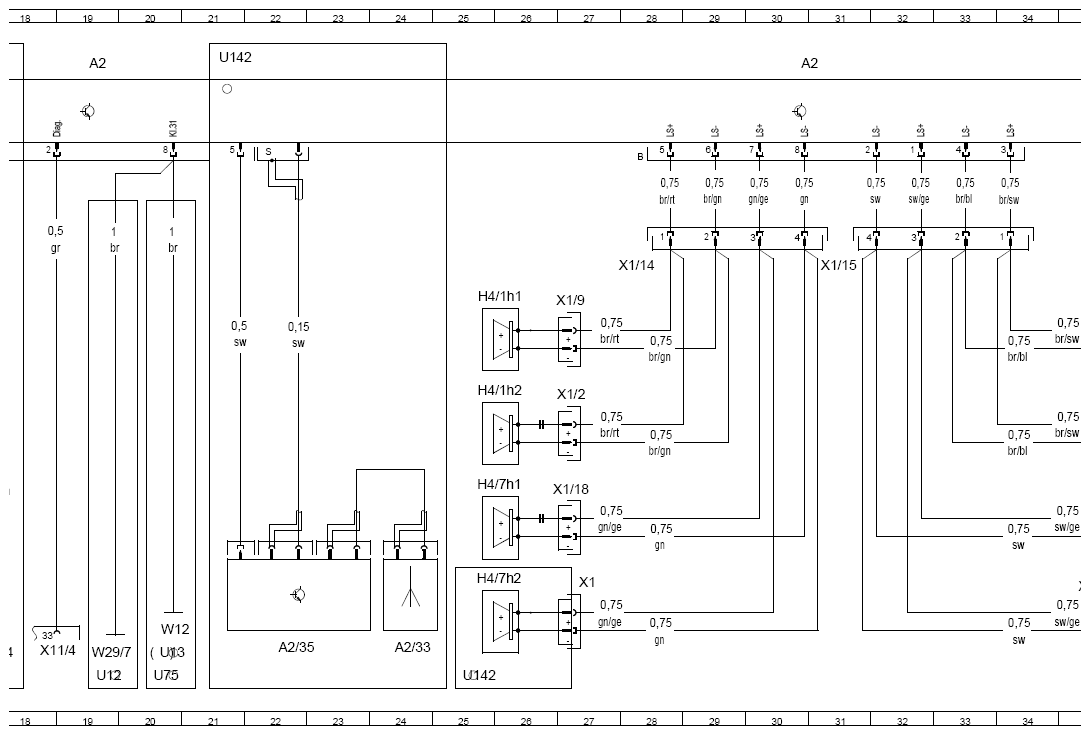

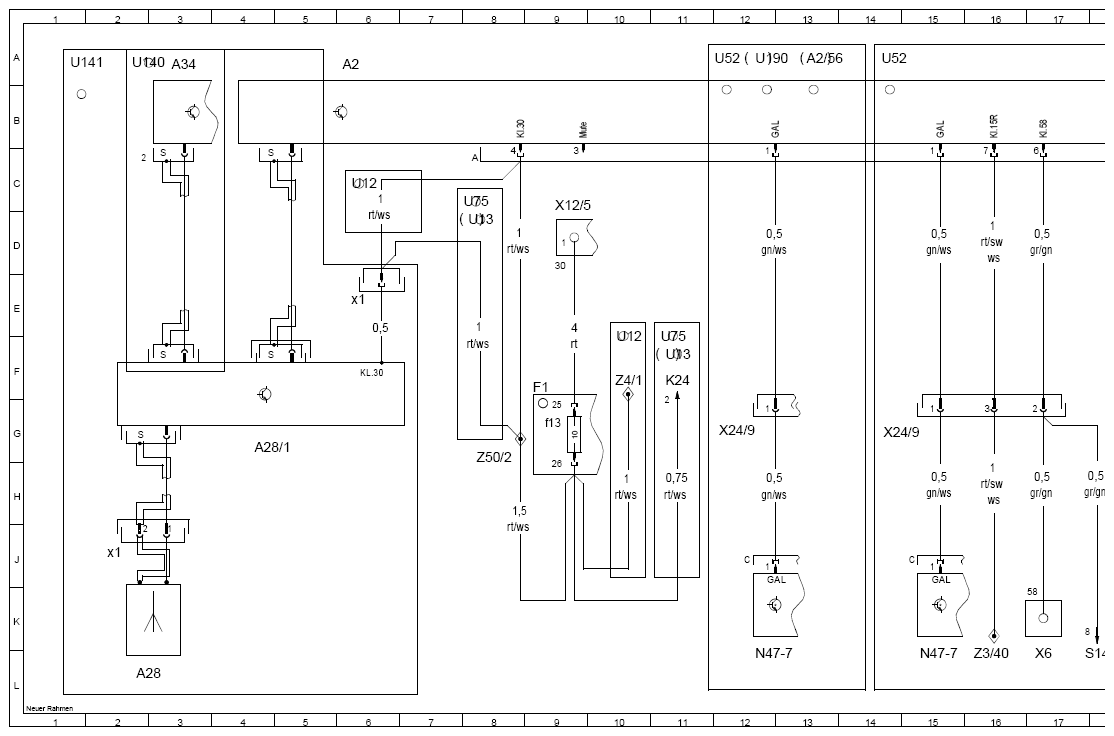

(Wiring Diagram For Radio - PE82.60-P-2000-99U)
Model 463
as of production date 6/1/99 up to production date 5/31/12
with CODE (ET6) Auto pilot system (APS)
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 41L |
| A2 | Radio | 31B |
| A2 | Radio | 39A |
| A2 | Radio | 19A |
| A2 | Radio | 6A |
| A2/23 | Left front GPS antenna | 42L |
| A2/23x1 | GPS connector | 42H |
| A2/33 | Side window antenna | 24K |
| A2/35 | Side window FM/AM antenna amplifier | 22K |
| A2/56 | Radio and navigation unit | 43A |
| A2/56 | Radio and navigation unit | 13A |
| A28 | Radio and portable CTEL antenna | 2K |
| A28/1 | Radio and portable CTEL antenna splitter | 5G |
| A28/1x1 | Antenna splitter voltage supply connector | 6E |
| A28x1 | Radio and portable CTEL antenna connector | 2J |
| A34 | Telephone handset | 3A |
| F1 | Fuse box | 9F |
| F1f13 | Fuse 13 | 9G |
| H4/1h1 | Left tweeter | 26E |
| H4/1h2 | Left bass speaker | 26F |
| H4/2h1 | Right tweeter | 36E |
| H4/2h2 | Right bass speaker | 36F |
| H4/7h1 | Left rear door speaker | 26H |
| H4/7h2 | Left rear speaker | 26J |
| H4/8h1 | Right rear door speaker | 36H |
| H4/8h2 | Right rear speaker | 36J |
| K24 | Comfort shift relay | 11F |
| N47-7 | ABS control unit | 12L |
| N47-7 | ABS control unit | 15L |
| S14 | Heated rear window switch | 18L |
| U12 | Valid for left-hand drive vehicles | 6C |
| U12 | Valid for left-hand drive vehicles | 10F |
| U12 | Valid for left-hand drive vehicles | 19L |
| U13 | Valid for right-hand drive vehicles | 11E |
| U13 | Valid for right-hand drive vehicles | 8C |
| U13 | Valid for right-hand drive vehicles | 20K |
| U140 | Valid for portable CTEL | 2A |
| U141 | Valid for convertibles with portable CTEL and radio | 2A |
| U142 | Not valid for convertible | 36L |
| U142 | Not valid for convertible | 25L |
| U142 | Not valid for convertible | 21A |
| U190 | Valid for APS | 42A |
| U190 | Valid for APS | 12A |
| U52 | Valid for two-piece radio | 12A |
| U52 | Valid for two-piece radio | 14A |
| U75 | Valid for gasoline engines | 11E |
| U75 | Valid for gasoline engines | 8C |
| U75 | Valid for gasoline engines | 20L |
| W12 | Ground (center console) | 20K |
| W29/7 | Ground (steering column) | 19K |
| X1 | Left rear speaker connector | 27J |
| X1/1 | Right rear speaker connector | 35J |
| X1/10 | Right tweeter speaker connector | 35E |
| X1/14 | Left speaker/main wiring harness connector | 28D |
| X1/15 | Right speaker/main wiring harness connector | 31D |
| X1/18 | Left rear door speaker connector | 27H |
| X1/19 | Right rear door speaker connector | 35H |
| X1/2 | Left bass speaker connector | 27F |
| X1/3 | Right bass speaker connector | 35G |
| X1/9 | Left tweeter speaker connector | 27E |
| X11/4 | Data link connector | 19K |
| X12/5 | Circuit 30, 15, 61 terminal block, wake-up | 40K |
| X12/5 | Circuit 30, 15, 61 terminal block, wake-up | 9C |
| X24/9 | APS/radio connector, Japan | 12G |
| X24/9 | APS/radio connector, Japan | 15G |
| X6 | Circuit 58 terminal block (2-pin) | 17K |
| Z3/40 | Circuit 15R (fused) connector sleeve (F1f15) | 16K |
| Z4/1 | Circuit 30 (fused) connector sleeve, convenience and rear dome lamp | 10F |
| Z50/2 | Connector sleeve 2 | 8H |
