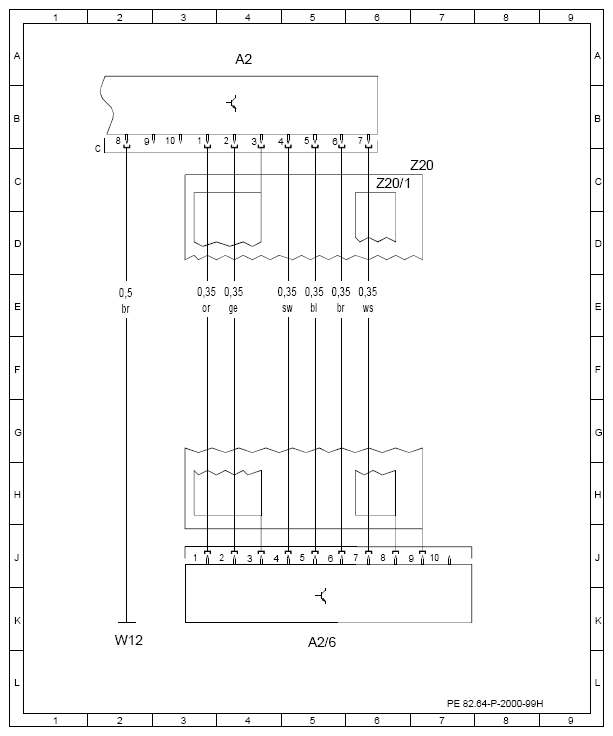

(Wiring Diagram Of CD Changer - PE82.64-P-2000-99H)
MODEL 463 up to production date 5/31/12
with CODE (EP5) CD changer
| Code: |
Designation: |
Position: |
| A2 |
Radio |
5B |
| A2/6 |
CD changer |
7P |
| W12 |
Ground (center console) |
3P |
| Z20 |
Shielding placed inside insulating tubing |
9D |
| Z20/1 |
Shielding placed inside insulating tubing |
9D |
