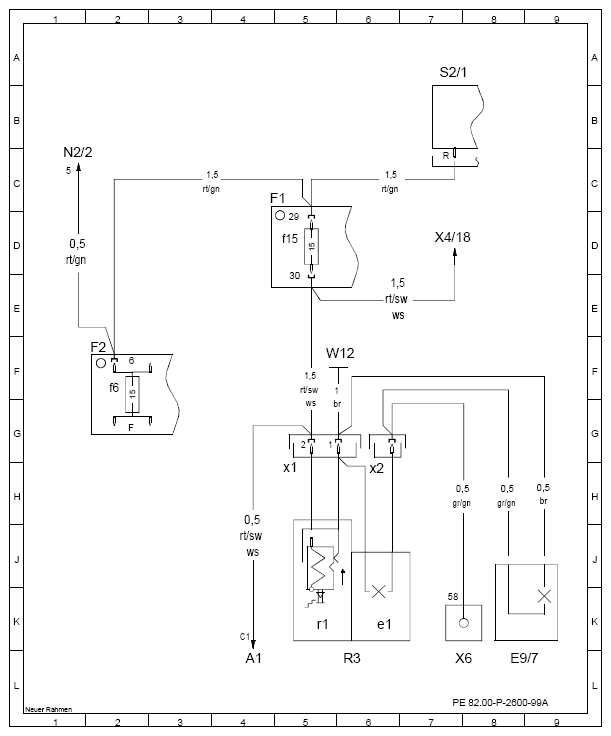

(Wiring Diagram Cigar Lighter - PE82.00-P-2600-99A)
MODEL 463 up to production date 5/31/12
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 4L |
| E9/7 | Front ashtray illumination | 8L |
| F1 | Fuse box | 5C |
| F1f15 | Fuse 15 | 5D |
| F2 | Fuse box (8 fuses) | 2F |
| F2f6 | Fuse 6 | 2G |
| N2/2 | Emergency tensioning retractor (ETR [GUS]) with airbag (AB) control unit | 1C |
| R3 | Front cigar lighter (with ashtray illumination) | 6K |
| R3e1 | Illumination | 6K |
| R3r1 | Heating element | 5K |
| R3x1 | Cigar lighter connector | 5G |
| R3x2 | Illumination connector | 6G |
| S2/1 | Ignition/starter switch | 7A |
| W12 | Ground (center console) | 6F |
| X4/18 | Circuit 15R terminal block (1-pin) | 7D |
| X6 | Circuit 58 terminal block (2-pin) | 8L |
