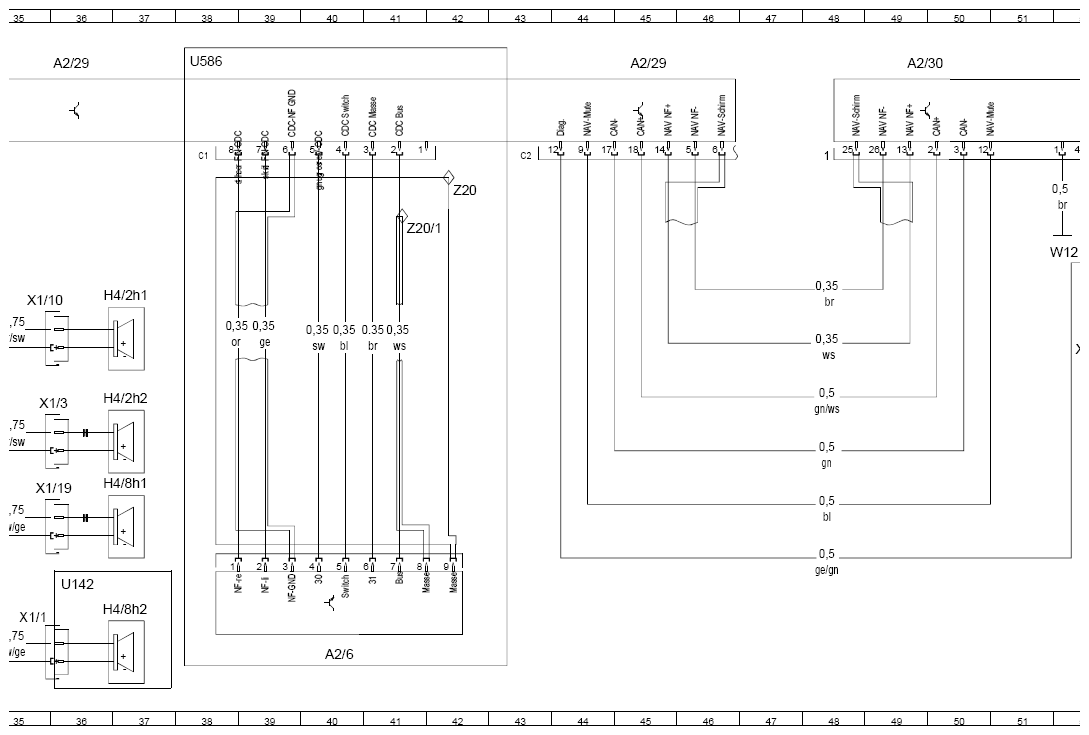

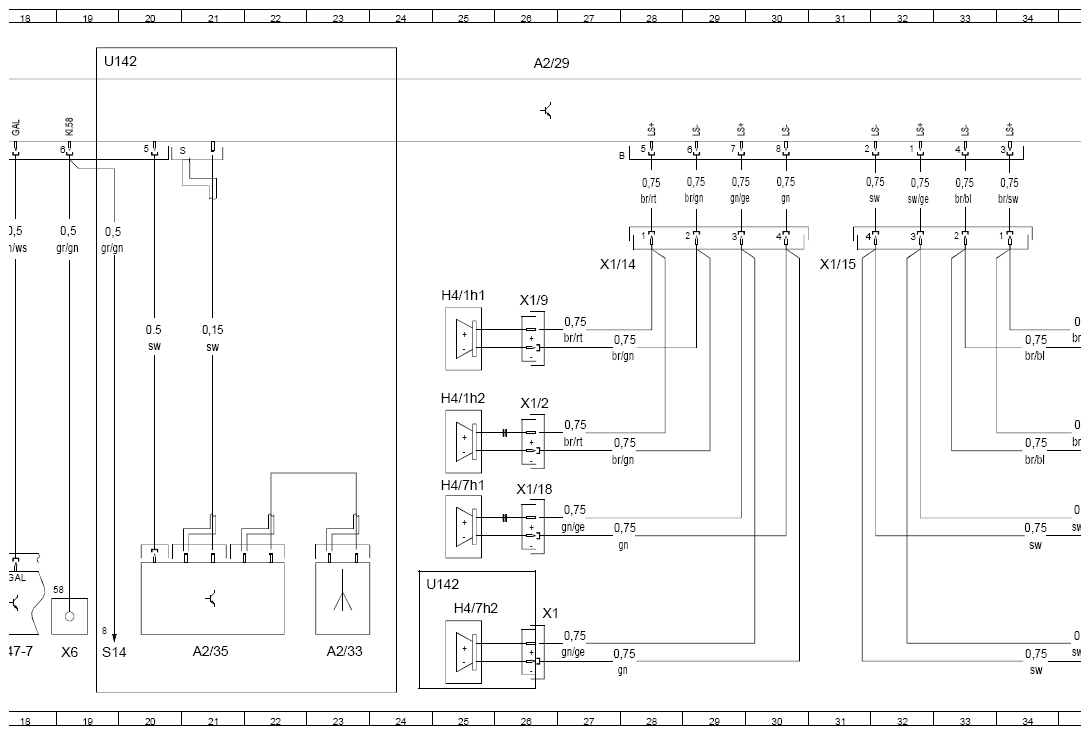

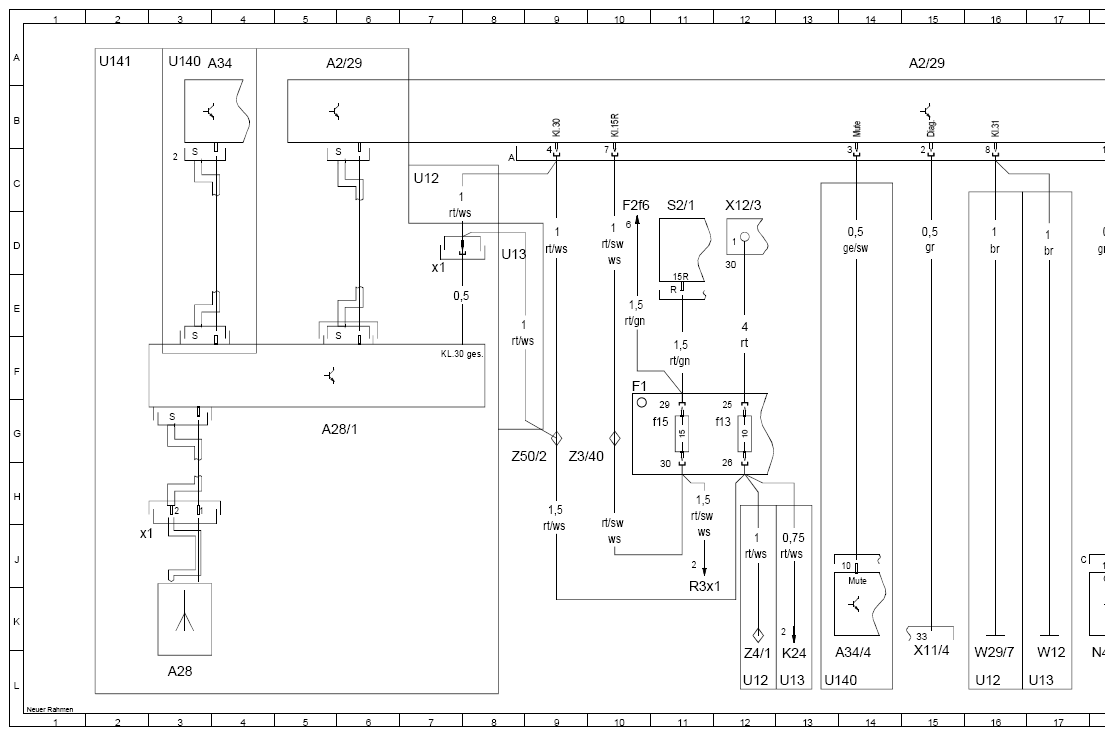

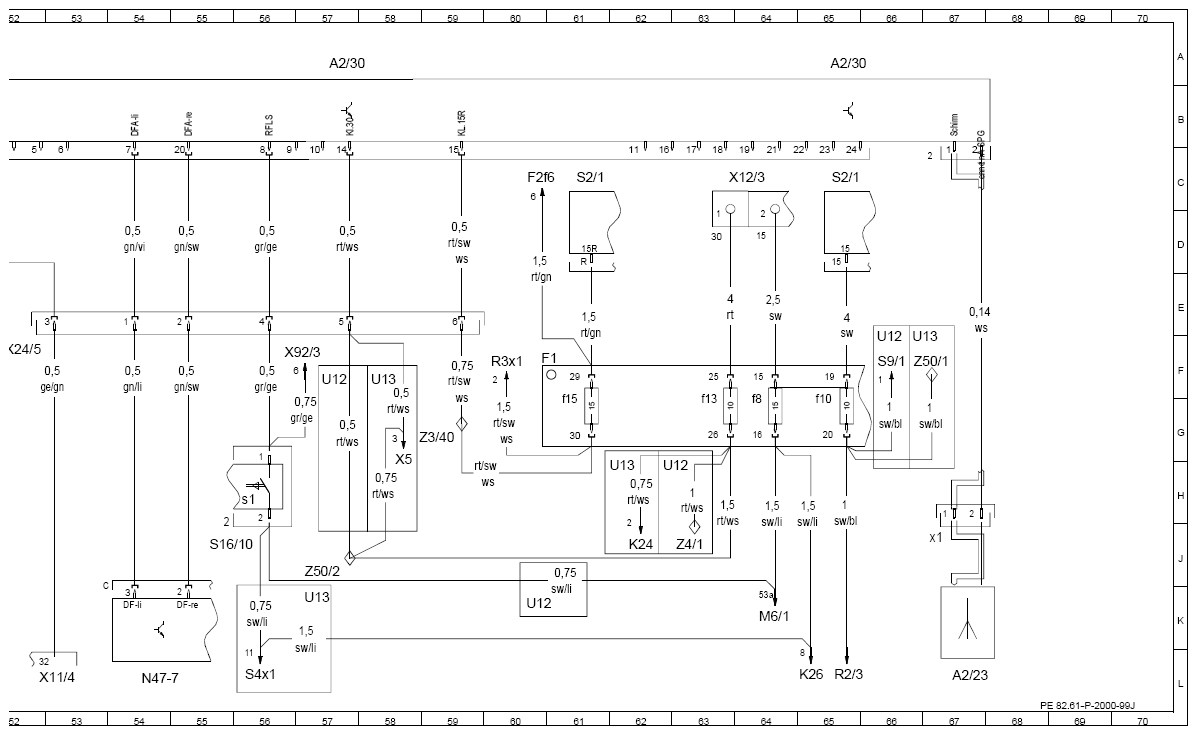

(Wiring Diagram Auto Pilot System (APS) - PE82.61-P-2000-99J)
MODEL 463 up to production date 5/31/12
with CODE (ET6) Auto pilot system (APS)
| Code: | Designation: | Position: |
|---|---|---|
| A2/23 | Left front GPS antenna | 67K |
| A2/23x1 | GPS connector | 67H |
| A2/29 | Radio and navigation operating unit | 63B |
| A2/29 | Radio and navigation operating unit | 21B |
| A2/29 | Radio and navigation operating unit | 7B |
| A2/29 | Radio and navigation operating unit | 50B |
| A2/29 | Radio and navigation operating unit | 37B |
| A2/30 | Navigation processor | 92B |
| A2/30 | Navigation processor | 81B |
| A2/30 | Navigation processor | 69B |
| A2/33 | Side window antenna | 32P |
| A2/35 | Side window FM/AM antenna amplifier | 29P |
| A2/6 | CD changer | 56P |
| A28 | Radio and portable CTEL antenna | 3K |
| A28/1 | Radio and portable CTEL antenna splitter | 3H |
| A28/1x1 | Antenna splitter voltage supply connector | 6G |
| A28x1 | Radio and portable CTEL antenna connector | 7D |
| A34 | Telephone handset | 5B |
| A34/4 | Telephone interface | 19P |
| F1 | Fuse box | 10F |
| F1 | Fuse box | 60F |
| F1f10 | Fuse 10 | 65F |
| F1f13 | Fuse 13 | 63F |
| F1f13 | Fuse 13 | 12G |
| F1f15 | Fuse 15 | 61F |
| F1f15 | Fuse 15 | 11G |
| F1f8 | Fuse 8 | 64F |
| F2f6 | Fuse 6 | 14E |
| F2f6 | Fuse 6 | 85D |
| H4/1h1 | Left tweeter | 35G |
| H4/1h2 | Left bass speaker | 35J |
| H4/2h1 | Right tweeter | 51G |
| H4/2h2 | Right bass speaker | 51J |
| H4/7h1 | Left rear door speaker | 35L |
| H4/7h2 | Left rear speaker | 35O |
| H4/8h1 | Right rear door speaker | 51L |
| H4/8h2 | Right rear speaker | 51O |
| K24 | Comfort shift relay | 18P |
| K24 | Comfort shift relay | 87M |
| K26 | Wiper system relay | 91P |
| M6/1 | Wiper motor | 90O |
| N47-7 | ABS control unit | 25P |
| N47-7 | ABS control unit | 76P |
| R2/3 | Right washer nozzle heater | 92P |
| R3x1 | Cigar lighter connector | 16N |
| R3x1 | Cigar lighter connector | 84H |
| S14 | Heated rear window switch | 27P |
| S16/10 | Gear recognition switch (voltage coded) | 56J |
| S16/10s1 | Backup lamp switch | 56H |
| S2/1 | Ignition/starter switch | 15E |
| S2/1 | Ignition/starter switch | 86D |
| S2/1 | Ignition/starter switch | 92D |
| S4x1 | Combination switch connector | 79P |
| S9/1 | Stop lamp switch | 93H |
| U12 | Valid for left-hand drive vehicles | 80J |
| U12 | Valid for left-hand drive vehicles | 9D |
| U12 | Valid for left-hand drive vehicles | 17P |
| U12 | Valid for left-hand drive vehicles | 93H |
| U12 | Valid for left-hand drive vehicles | 88L |
| U12 | Valid for left-hand drive vehicles | 85O |
| U12 | Valid for left-hand drive vehicles | 22P |
| U13 | Valid for right-hand drive vehicles | 81J |
| U13 | Valid for right-hand drive vehicles | 11F |
| U13 | Valid for right-hand drive vehicles | 18P |
| U13 | Valid for right-hand drive vehicles | 94H |
| U13 | Valid for right-hand drive vehicles | 87L |
| U13 | Valid for right-hand drive vehicles | 80O |
| U13 | Valid for right-hand drive vehicles | 23P |
| U140 | Valid for portable CTEL | 4B |
| U140 | Valid for portable CTEL | 19P |
| U141 | Valid for convertibles with portable CTEL and radio | 2B |
| U142 | Not valid for convertible | 50N |
| U142 | Not valid for convertible | 34N |
| U142 | Not valid for convertible | 27B |
| U586 | Valid for CD changer | 53B |
| W12 | Ground (center console) | 73F |
| W12 | Ground (center console) | 23P |
| W29/7 | Ground (steering column) | 22P |
| X1 | Left rear speaker connector | 37O |
| X1/1 | Right rear speaker connector | 49O |
| X1/10 | Right tweeter speaker connector | 50G |
| X1/14 | Left speaker/main wiring harness connector | 38F |
| X1/15 | Right speaker/main wiring harness connector | 43F |
| X1/18 | Left rear door speaker connector | 36L |
| X1/19 | Right rear door speaker connector | 50L |
| X1/2 | Left bass speaker connector | 37J |
| X1/3 | Right bass speaker connector | 50J |
| X1/9 | Left tweeter speaker connector | 36G |
| X11/4 | Data link connector | 21P |
| X11/4 | Data link connector | 74P |
| X12/3 | Circuit 30, 15, 61 terminal block (3-pin) | 16E |
| X12/3 | Circuit 30, 15, 61 terminal block (3-pin) | 90D |
| X24/5 | APS/MWH [HLS] connector | 73H |
| X5 | Rear door feed connector | 82L |
| X6 | Circuit 58 terminal block (2-pin) | 26P |
| X92/3 | Frame connector (22-pin) | 80H |
| Z20 | Shielding placed inside insulating tubing | 59D |
| Z20/1 | Shielding placed inside insulating tubing | 58E |
| Z3/40 | Circuit 15R (fused) connector sleeve (F1f15) | 13K |
| Z3/40 | Circuit 15R (fused) connector sleeve (F1f15) | 83K |
| Z4/1 | Circuit 30 (fused) connector sleeve, convenience and rear dome lamp | 88M |
| Z4/1 | Circuit 30 (fused) connector sleeve, convenience and rear dome lamp | 17P |
| Z50/1 | Connector sleeve 1 | 94H |
| Z50/2 | Connector sleeve 2 | 12K |
| Z50/2 | Connector sleeve 2 | 80N |
