Removing And Installing Loudspeaker In Instrument Panel - AR82.62-P-7833GW
Model 463 (except
463.202/222/236/237/243/244/245/246/247/248/249/250/254/270/271/303/306/309/322/323/332/333/336/340/34)
as of model year 2013 up to model year 2019

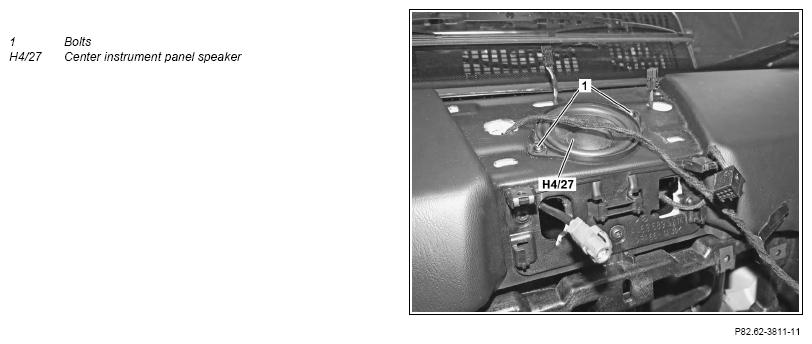

Fig 1: Loudspeaker In Instrument Panel Components Location - Model 463 (except 463.202/222/236/237/243/244/245/246/247/248/249/250/254/270/271/303/306/309/322/323/332/333/336/340/34) As Of Model Year 2013 Up To Model Year 2019
| Remove/install | |||
| Switch off ignition | |||
| Unclip speaker cover from center instrument panel | Fig 2 | ||
| Disconnect electrical connectors from speaker cover | |||
| Remove bolt (1) | |||
| Pull out center instrument panel speaker (H4/27) | |||
| Disconnect electrical connector from center instrument panel speaker (H4/27) | |||
| Remove side air vent at left | Remove/install side air vent | AR68.10-P-1100GWL | |
| Remove bolts and remove left instrument panel tweeter (H4/33) | |||
| Remove side air vent at right | Remove/install side air vent | AR68.10-P-1100GWR | |
| Remove bolts and remove right instrument panel tweeter (H4/34) | |||
| Install in the reverse order | |||
| Read out and clear the fault memory using Star Diagnosis Connect STAR DIAGNOSIS and read out fault memory |
AD00.00-P-2000-04A |
