Remove/Install WLAN Antenna - AR82.85-P-0004XG
Model 463
as of model year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||

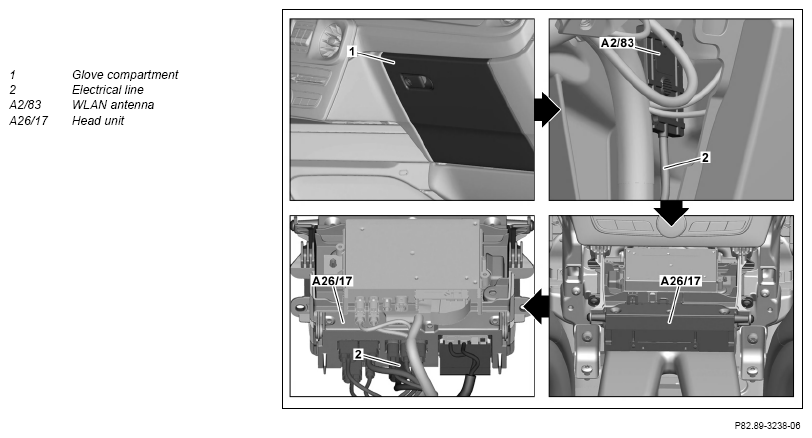

| 1 | Remove glove compartment (1). | AR68.10-P-1402XG | |
| 2 | Remove head unit (A26/17) until the electrical connectors on the rear side of the device are accessible. | AR82.85-P-1101XG | |
| 3 | Place head unit (A26/17) to one side with connected lines. | Place head unit (A26/17) on a clean dry cloth. Otherwise the component parts of the instrument panel or the center console will be damaged. |
|
| 4 | Disconnect electric line (2) of WiFi antenna (A2/83) from connection at the head unit (A26/17). | ||
| 5 | Cut through electric line (2) of WiFi antenna (A2/83) on both ends as near as possible to the wiring harness of the instrument panel. | ||
| 6 | Remove cut-off section of the factory-installed electric line (2). | ||
| 7 | Unclip WiFi antenna (A2/83) from crossmember of instrument panel and remove | ||
| Install | |||
| 8 | Clip in new WiFi antenna (A2/83) into crossmember of instrument panel. | ||
| 9 | Route electric line (2) of new WiFi antenna (A2/83) along wiring harness of instrument panel to device installation slot of head unit (A26/17) and fix in place with cable ties. | ||
| 10 | Connect electric line (2) of new WiFi antenna (A2/83) with connection of head unit (A27/17). | ||
| 11 | Install head unit (A26/17). | AR82.85-P-1101XG | |
| 12 | Install glove compartment (1). | AR68.10-P-1402XG |
