Remove/Install Turn Signal Lamps - AR82.10-P-4725GW
Model 463
as of model year 2013 up to model year 2019
| Remove/install | |||
| 1 | Remove wheel well cover | ||

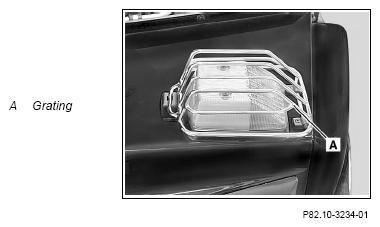

| 2 | Remove grille (A) | ||

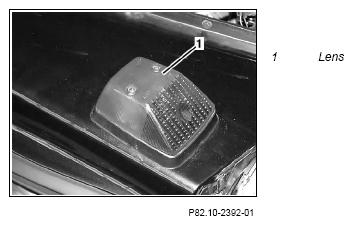

| 3 | Remove lens (1) from turn signal lamp | ||

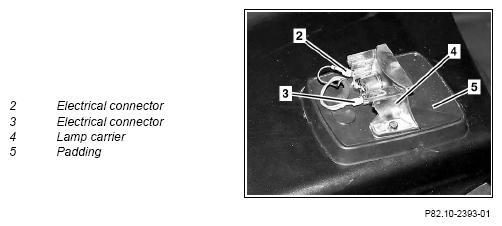

| 4 | Disconnect electrical connectors (2, 3) | Insulate electrical connectors (2, 3) against unintended contact. Otherwise, a short circuit may occur. |
|
| 5 | Remove bulb mount (4) with support (5) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform function test |
