Remove/Install Taillamp - AR82.10-P-4905GW
Model 463 (except 463.242)
as of model year 2013 up to model year 2019

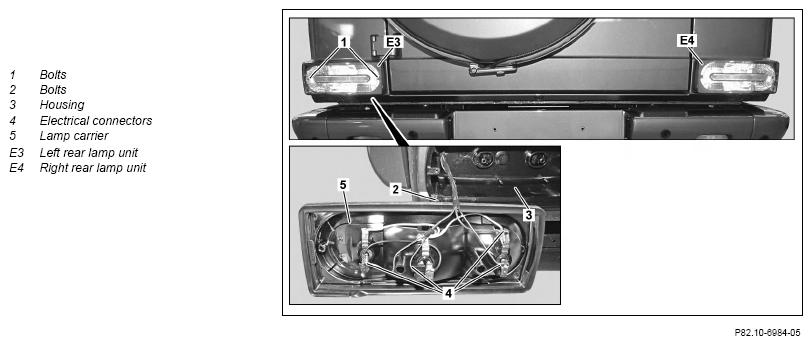

Fig 1: Taillamp Components Location - Model 463 (Except 463.242) As Of Model Year 2013 Up To Model Year 2019
| Remove/install | |||
| 1 | Remove bolts (1) and remove lens of left rear lamp unit (E3) or right rear lamp unit (E4) | ||
| 2 | Pull out bulb mount (5) | ||
| 3 | Mark electrical connectors (4) | ||
| 4 | Disconnect electrical connectors (4) | Insulate electrical connectors (4) against unintended contact. Otherwise, a short circuit may occur. |
|
| 5 | Remove bulb mount (5) | ||
| 6 | Remove screw/bolts (2) | ||
| 7 | Remove housing (3) | ||
| 8 | Install in the reverse order |
