Remove/Install TV Antenna Amplifier - AR82.62-P-8314XG

Model 463

as of model year 2019

with code EM8 (TV tuner)

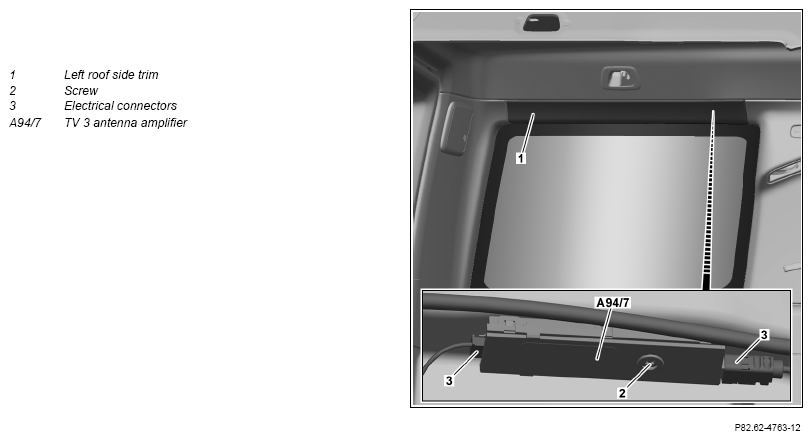

Fig 1: TV Antenna Amplifier Components Location - Model 463 As Of Model Year 2019 With Code EM8

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove roof side trim (1) on left side of vehicle.		AR68.30-P-4300XG
2	Remove screw (2) and take out TV 3 antenna amplifier (A94/7) until the electrical connectors (3) are accessible.	The screw (2) remains on the TV 3 antenna amplifier (A94/7).
3	Disconnect electrical connectors (3).
4	Install in reverse order.
