Remove/Install Satellite Radio Antenna - AR82.60-P-7547XG

Model 463

as of model year 2019

with code EF7 (Radio: SIRIUS/SDARS ex factory)

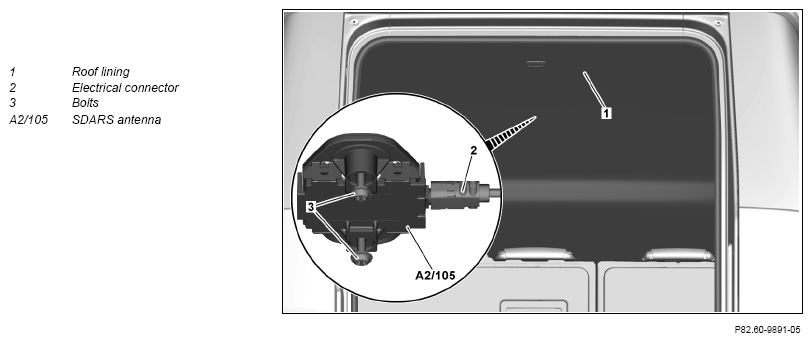

Fig 1: Satellite Radio Antenna Components Location - Model 463 As Of Model Year 2019 With Code EF7

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove roof lining (1).		AR68.30-P-4300XG
2	Disconnect electrical connector (2).
3	Remove screws (3).
4	Remove SDARS antenna (A2/105).
5	Install in reverse order.
