Remove/Install Satellite Radio Antenna - AR82.60-P-7547GW
Model 463
as of model year 2013 up to model year 2019

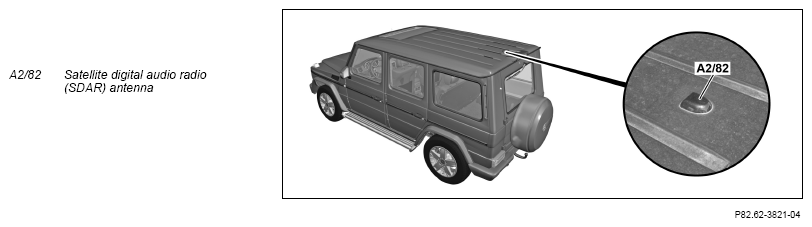

Fig 1: Satellite Radio Antenna Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019
| Remove/install | |||
| 1 | Remove headliner | Remove/install roof lining Model 463 (except 463.202/242) as of model year 2013 up to model year 2019 Carefully pull roof lining downward. Danger of breakage. |
AR68.30-P-4300GW |

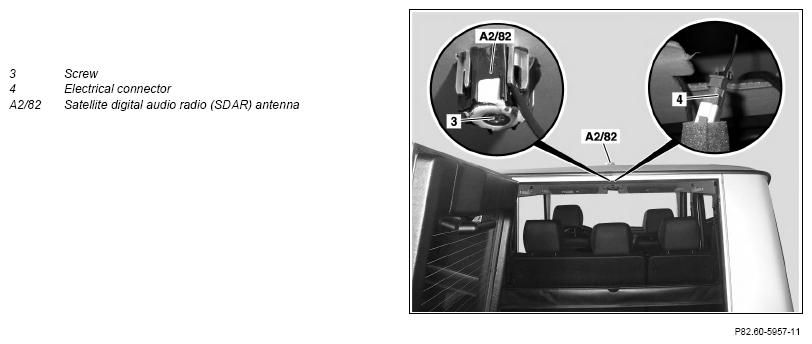

| 2 | Remove screw (3) at Satellite Digital Audio Radio (SDAR) antenna (A2/82) | ||
| 3 | Disconnect connector coupling of the Satellite Digital Audio Radio (SDAR) antenna (A2/82) | ||
| 4 | Remove Satellite Digital Audio Radio (SDAR) antenna (A2/82) | ||
| 5 | Install in the reverse order |
