Remove/Install Loudspeakers In Rear Doors - AR82.62-P-7874XG

Model 463

as of model year 2019

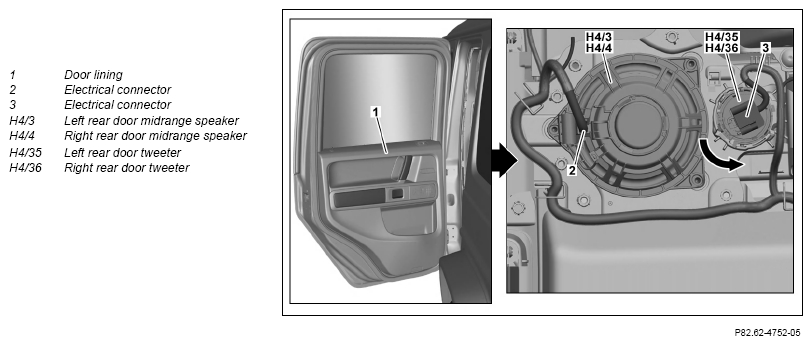

Fig 1: Loudspeakers In Rear Doors Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (at least 2 m).
2	Remove door lining (1) from left rear door or right rear door.		AR72.12-P-1010XG
3	Disconnect electrical connector (2).	When removing left rear door mid-range speaker (H4/3) or right rear door mid-range speaker (H4/4).
4	Disconnect the electrical connector (3).	When removing left rear door tweeter (H4/35) or right rear door tweeter (H4/36).
5	Unclip left rear door mid-range speaker (H4/3) or right rear door mid-range speaker (H4/4).	Check elastomer bearings for damage. If elastomer bearings are damaged. ↓ Replace elastomer bearing.
6	Remove left rear door tweeter (H4/35) or right rear door tweeter (H4/36) in direction of arrow from holder.
7	Install in reverse order.
