Remove/Install Headlamp Cleaning System Pump - AR82.15-P-6210XG
Model 463
as of model year 2019
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

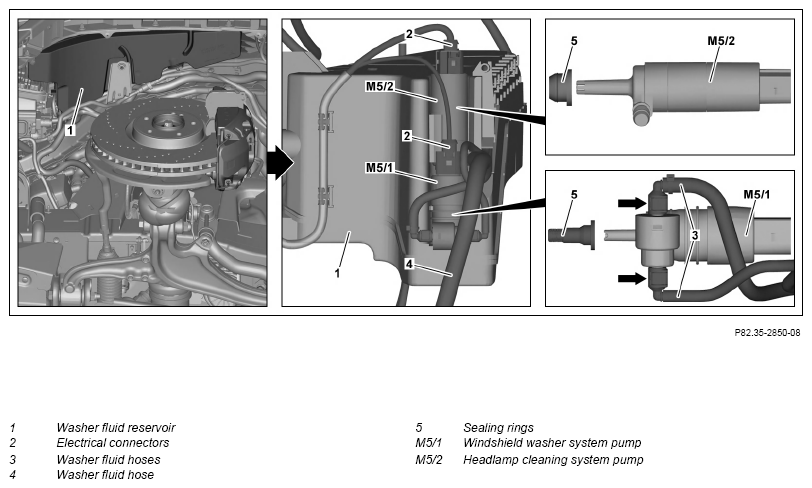

| 1 | Release washer fluid reservoir (1) and lower until the headlamp cleaning system pump (M5/2) is accessible. | AR82.35-P-6000XG | |
| 2 | Remove headlamp cleaning system pump (M5/2) from washer fluid reservoir (1). | ||
| 3 | Disconnect electrical connector (2) from headlamp cleaning system pump (M5/2). | ||
| 4 | Detach washer fluid hose (4) from headlamp cleaning system pump (M5/2) and remove headlamp cleaning system pump (M5/2). | ||
| 5 | Remove seal (5) of headlamp cleaning system pump (M5/2) from washer fluid reservoir (1). | If the seal (5) is damaged. ↓ Replace seal (5). |
|
| 6 | Install in reverse order. | ||
| 7 | Correct fluid level of windshield washer system. | ||
| AP82.35-P-8210GA |
