Remove/Install HERMES Antenna - AR82.95-P-0030GW
Model 463
up to model year 2019
with code EK1 (HERMES communications module LTE)
Model 463
up to model year 2019
with code EM2 (Communications module (UMTS) for the use of Merced)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||
| 2 | Remove right sidewall trim. | Model 463 (except 463.202) as of model year 2013 up to model year 2019 with code EK1 (HERMES communications module LTE) Model 463 (except 463.202) as of model year 2013 up to model year 2019 with code EM2 (Communications module (UMTS) for the use of Merced) |
AR68.30-P-1450GW |

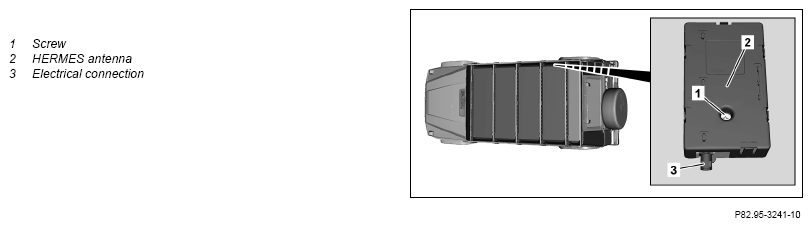

| 3 | Unscrew bolt (1). | ||
| 4 | Release HERMES antenna (2) far enough until the electrical connector on the electrical connection (3) is accessible. | ||
| 5 | Release and disconnect electrical connector from electrical connection (3). | ||
| 6 | Remove HERMES antenna (2). | ||
| 7 | Install in reverse order. |
