Remove/Install Glove Compartment Lamp - AR82.20-P-0114XG

Model 463

as of model year 2019

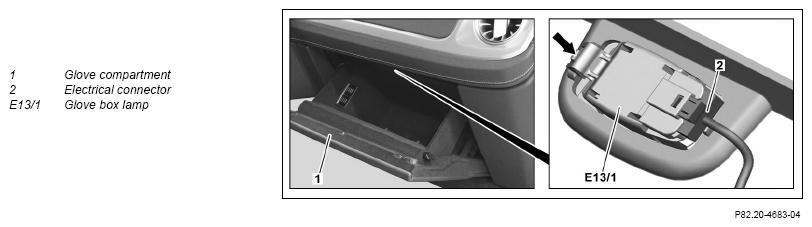

Fig 1: Glove Compartment Lamp Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Open glove compartment (1).
2	Unclip glove compartment lamp (E13/1) (arrow).	Long wedge	Fig 2
3	Disconnect electrical connector (2).
4	Remove glove compartment lamp (E13/1).
5	Install in reverse order.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
