Remove/Install Emergency Call System Antenna - AR82.95-P-0017XG
Model 463
as of model year 2019
with code EK1 (HERMES communications module LTE)
with code EK2 (HERMES communications module Russia UMTS)
with code EM2 (Communications module (UMTS) for the use of Merced)
Shown on right side of vehicle

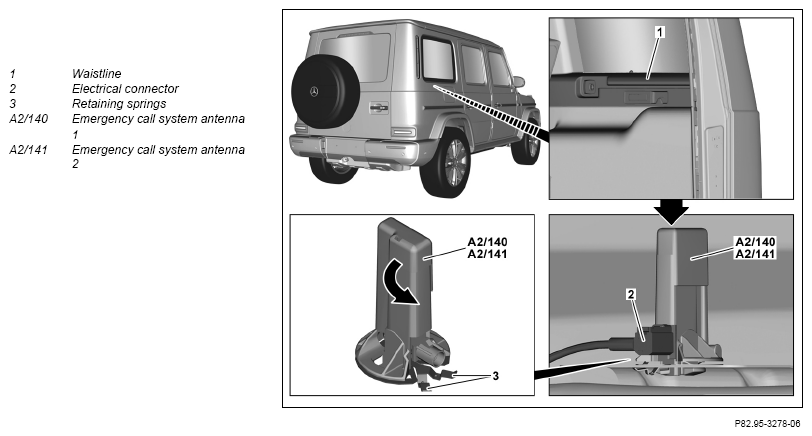

Fig 1: Emergency Call System Antenna Components Location - Model 463 As Of Model Year 2019 With Codes EK1, EK2 And EM2 (Shown On Right Side Of Vehicle)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left or right beltline (1). | AR68.30-P-1185XG | |
| 2 | Disconnect electrical connector (2). | ||
| 3 | Lift safety springs (3) and pull forward emergency call system antenna 1 (A2/140) or emergency call system antenna 2 (A2/141). | ||
| 4 | Rotate emergency call system antenna 1 (A2/140) or emergency call system antenna 2 (A2/141) through 900 counterclockwise (arrow) and remove. | ||
| 5 | Install in reverse order. |
