Remove/Install DSRC Antenna - AR82.88-P-0004XG

Model 463

as of model year 2019

with code ZJ1 (Local version for Japan)

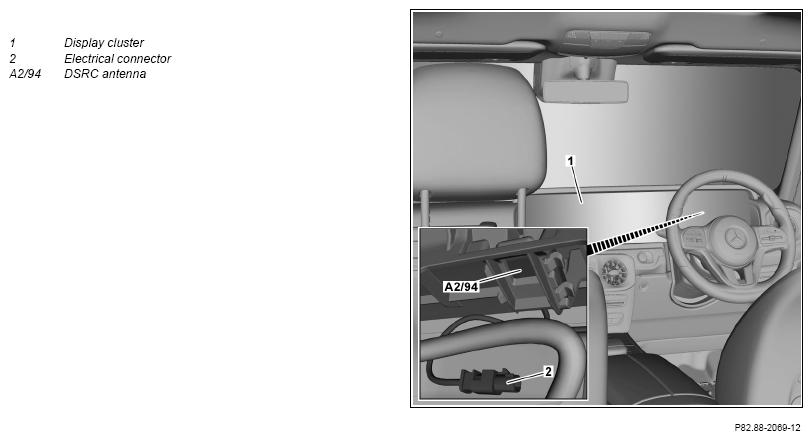

Fig 1: DSRC Antenna Components Location - Model 463 As Of Model Year 2019 With Code ZJ1

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove display cluster (1).		AR54.30-P-6023XG
2	Disconnect electrical connector (2).
3	Remove DSRC antenna (A2/94) from holder and remove it.
4	Install in reverse order.
