Remove/Install Bulbs Of Headlamp Unit - AR82.10-P-1201GW
Model 463 (except 463.202)
as of model year 2013 up to model year 2019

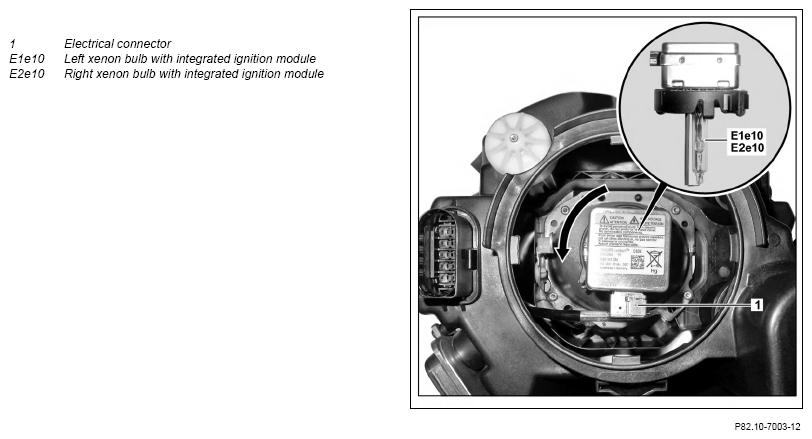

Fig 1: Bulbs Of Headlamp Unit Components Location - Model 463 (Except 463.202) As Of Model Year 2013 Up To Model Year 2019
| Remove/install | |||
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of explosion/risk of fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. Risk of injury caused by UV light, hot components on xenon headlamps and glass splinters produced by bursting xenon bulbs. Risk of poisoning caused by inhalation of mercury vapors and by swallowing of/skin contact with toxic salts and mercury compounds. | Do not touch parts conducting high voltage. Persons with active electronic implants (e.g. cardiac pacemakers) must never work on xenon headlamps. Switch off the entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the danger zone. Ensure sufficient ventilation in the working area. | AS82.10-Z-0001-01A | |
| 1 | Remove left front lamp unit or right front lamp unit | Model 463 (except 463.202/242) as of model year 2013 up to model year 2019 |
AR82.10-P-4730GW |
| 2 | Remove housing cover | ||
| 3 | Disconnect electrical connection (1) | ||
| 4 | Turn xenon bulb with integrated ignition module at left (E1e10) or xenon bulb with integrated ignition module at right (E2e10) towards left and remove | ||
| 5 | Install in the reverse order |
