Remove/Install Bluetooth(R) Antenna - AR82.62-P-8982XG
Model 463
as of model year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||

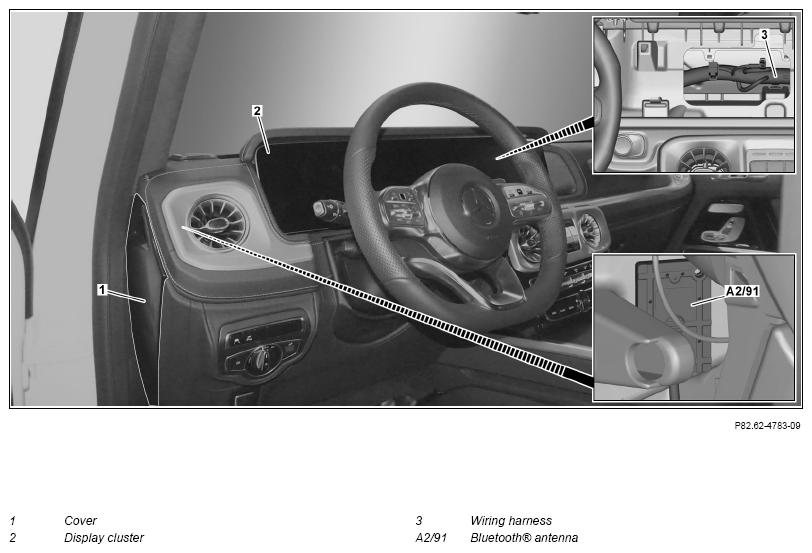

| 1 | Unclip cover (1) on left side of vehicle. | Fig 2 | |
| 2 | Remove display cluster (2). | AR54.30-P-6023XG | |

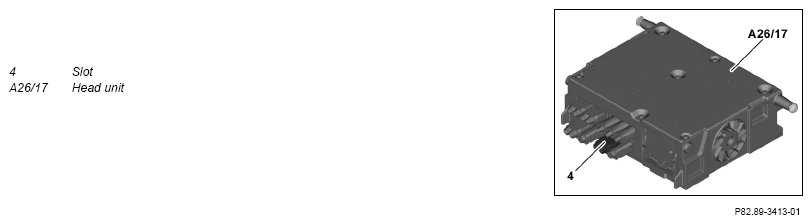

| 3 | Remove head unit (A26/17) until the electrical connectors on the rear side of the device are accessible. | AR82.85-P-1101XG | |
| 4 | Disconnect electric line of Bluetooth® antenna (A2/91) from slot (4) of head unit (A26/17). | ||
| 5 | Cut through electric line of Bluetooth® antenna (A2/91) at both ends as close as possible to the wiring harness (3) of the instrument panel. | ||
| 6 | Remove cut-off section of the factory-installed electric line. | ||
| 7 | Unclip Bluetooth® antenna (A2/91) from crossmember of instrument panel. | ||
| Install | |||
| 8 | Clip in new Bluetooth® antenna (A2/91) at crossmember of instrument panel. | ||
| 9 | Route electric line of new Bluetooth® antenna (A2/91) along wiring harness (3) of instrument panel to device installation slot of head unit (A26/17) and fix in place with cable tie. | ||
| 10 | Connect electric line of new Bluetooth® antenna (A2/91) with slot (4) of head unit (A26/17). | ||
| 11 | Install head unit (A26/17). | AR82.85-P-1101XG | |
| 12 | Install display cluster (2). | AR54.30-P-6023XG | |
| 13 | Clip in cover (1). |
