Remove And Install Wiper Arm - AR82.30-P-6100A

Model 461

Model 463

up to model year 2019

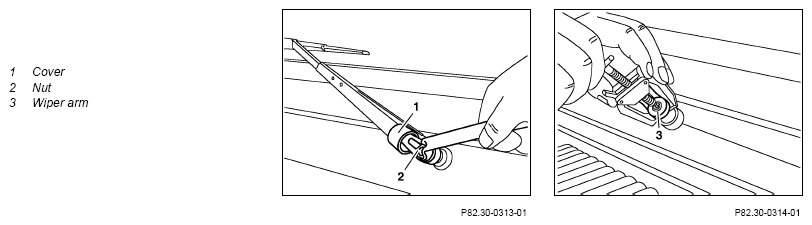

Fig 1: Install Wiper Arm Components Location - Model 463 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
1	Remove ignition key.
2	Fold open cover (1).
3	Unscrew nut (2).	Nut, wiper arm	*BA82.30-P-1003-01B
4	Detach wiper arm (3).	The wiper arm (3) is connected to the wiper bearing axle via the fine geared cone. : Move wiper blade to horizontal position at lower edge of window. Puller	Fig 2
5	Install in reverse order.

WINDSHIELD WIPER

Number	Designation		Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA82.30-P-1003-01B	Nut, wiper arm	Nm	12	-

Fig 2: Identifying Puller (001 589 38 33 00)

Courtesy of MERCEDES-BENZ USA
