Clean Water Drain - AP82.35-P-8232G
Model 463
as of model year 2019

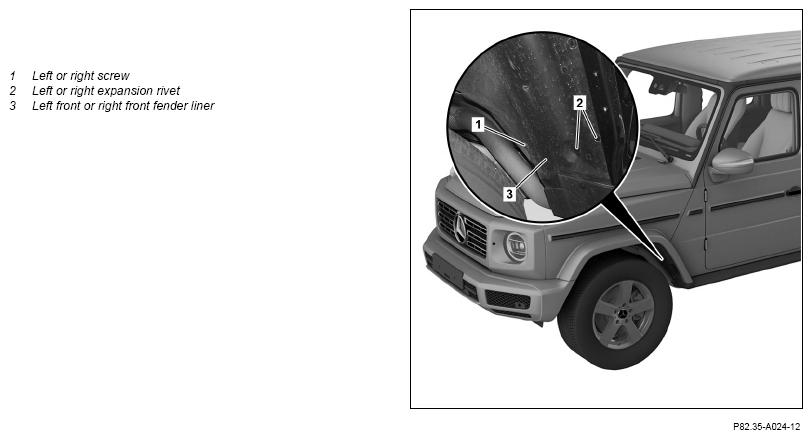

Shown on model 463.260, left front
Shown on model 463.260, left front
| Preparatory activity | |||
| 1 | Lift vehicle with lifting platform. | ||
| AR00.60-P-1006A | |||
| Remove | |||
| 2 | Remove left or right screw (1). | ||
| 3 | Remove left or right expansion rivet (2). | Dismantling tool | Fig 1 |

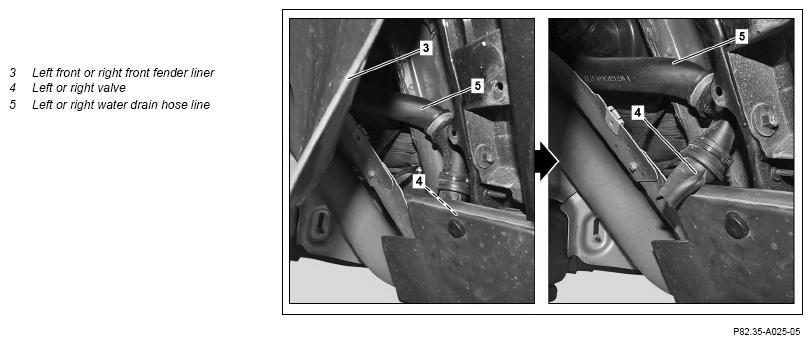

| 4 | Release left front or right front fender liner (3) until left or right valve (4) is accessible. | ||
| 5 | Fold left or right valve (4) to one side. | ||
| Clean | |||
| 6 | Check left or right valve (4), as well as left or right water drain hose line (5) for soiling; clean if necessary. | ||
| Install | |||
| 7 | Fold left or right valve (2) back into original position. | ||
| 8 | Install left front or right front fender liner (3). | ||
| 9 | Install left or right expansion rivet (2). | ||
| 10 | Screw in left or right screw (1). | ||
| Finishing activity | |||
| 11 | Lower vehicle with vehicle lift. | ||
| AR00.60-P-1006A |
