Check, Adjust Low Beams - AP82.10-P-8263GC
Model 463
as of model year 2019
with code L57 (MULTIBEAM LED)
except code ZU7 (National version for Canada)
except code ZU8 (National version for USA)
Show on model 463.260

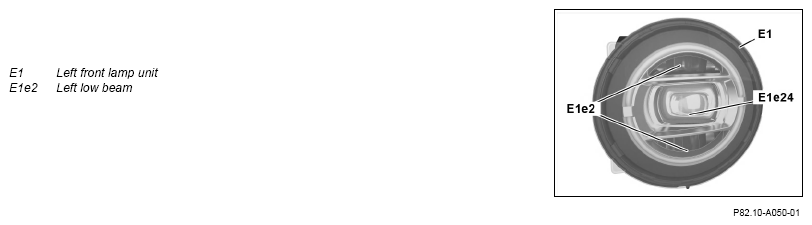

Dynamic LED headlamp, shown on model 463 as of model year 2019
Light gradient for low beams
Show on model 463.260
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| General information on checking/correcting headlamp adjustment | AH82.10-P-1000-01A | ||
| Preparatory activity | |||
| 1 | Prepare vehicle for checking/correcting headlamp adjustment. | AP82.10-P-8260-10GA | |
| 2 | Determine degree of inclination for main headlamps. | ||
| Notes on determining headlamp aiming values | AH82.10-P-1005-01A | ||

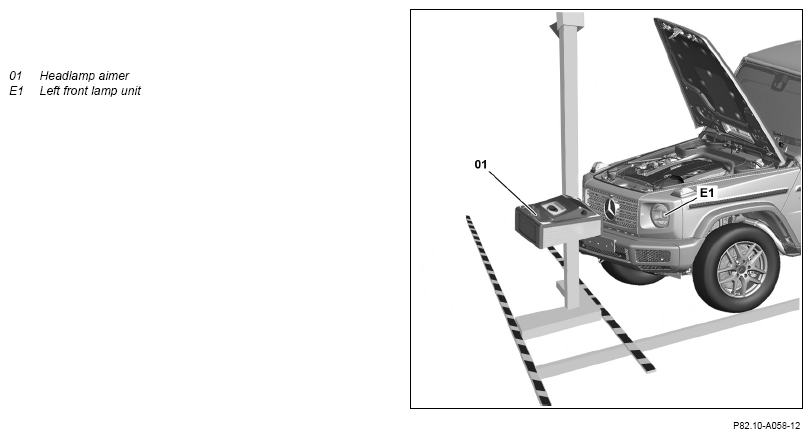

| 3 | Adjust specified degree of inclination for main headlamps at headlamp adjuster (01). | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 4 | Switch on low beams. | ||
| 5 | Open hood. | ||
| Check and, if necessary, adjust (checking and adjusting the low beams is described at the left low beam (E1e2) in the left front lamp unit (E1), use procedure for left side for right side too.) | |||
| 6 | Check height adjustment of left low beam (E1 e2), adjust if necessary. | ||

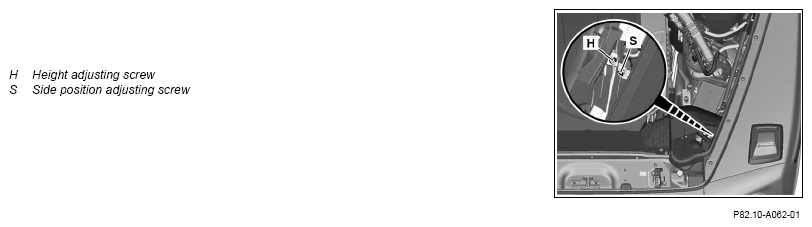

| 000 588 11 21 00 Adjustment device | The colored area of the light-dark boundary (1) of the left low beam headlamp (E1e2) must be above the reference line for the height adjustment (2). If the height adjustment of the left low beam (E1 e2) is correct with the diagnostic light pattern switched on, ↓ no further check is necessary; continue with operation step 7. If the height adjustment of the left low beam (E1 e2) is not correct with the diagnostic light pattern switched on, ↓ turn the adjustment screw for the height adjustment (H) to correct the height adjustment of the left low beam headlamp (E1e2). |
WS82.00-P-0151B | |
| 7 | Check lateral adjustment of left low beam (E1 e2), and adjust if necessary. | ||
| 000 588 11 21 00 Adjustment device The colored area of the vertical light-dark boundary (1) of the left low beam headlamp (E1e2) must be to the left of the center mark (3). If the lateral adjustment of the left low beam (E1e2) is correct, ↓ no further check necessary, continue with operation step 8. If the lateral adjustment of the left low beam (E1e2) is not correct, ↓ turn the adjustment screw for the lateral adjustment (S) to correct the lateral adjustment of the left low beam headlamp (E1e2). |
WS82.00-P-0151B | ||
| Finishing activity | |||
| 8 | Reset switch positions to input condition. | Only if the high beam setting is not to be checked afterwards. | |
| 9 | Close hood. |
