Check Setting Of High Beam - AP82.10-P-8260-02GA
Model 463
as of model year 2019
Shown on model 463.260 with ECE version headlamp

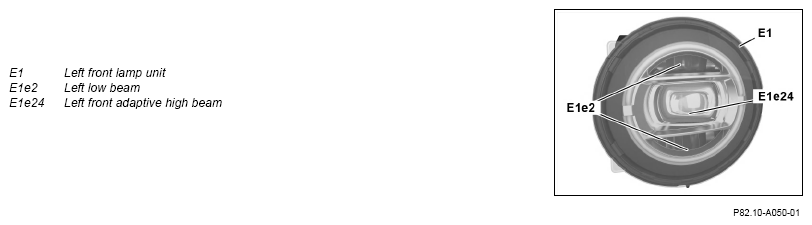

Static LED headlamp, shown on model 463 as of model year. 2019

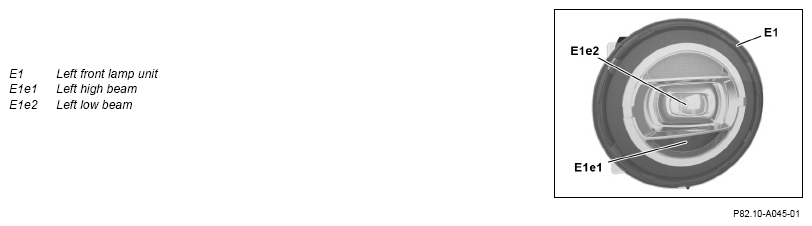

Dynamic LED headlamp, shown on model 463 as of model year 2019

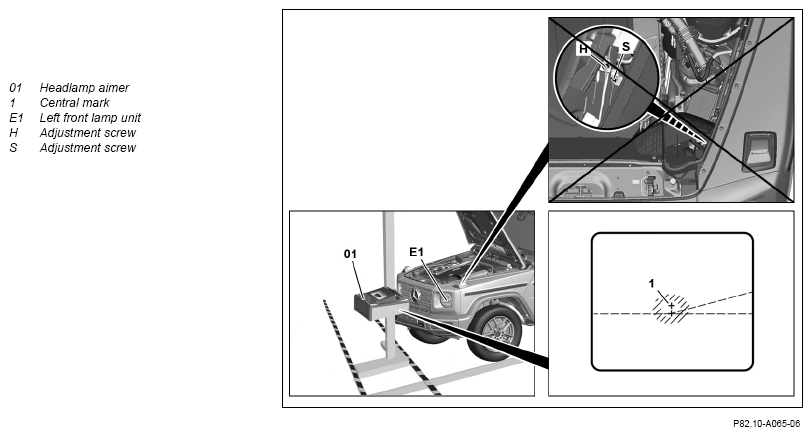

- Align headlamp adjuster (01) parallel to the vehicle level with the left high beam (E1e1) or the front left adaptive high beam (E1e24) in the front left lamp unit (E1).
Make sure that the headlamp adjuster (01) is aligned in front of the left high beam (E1 e1) or the left front partial high beam (E1e24) and not in front of the left low beam (E1e2).
Otherwise the high beam cannot be properly checked.
Proceed with the right along the same lines as the left.
- Check setting of high beam.
Do not perform any correction to headlamp adjustment screws (H, S).
Otherwise, the previously adjusted low beams will be mis-adjusted.
The center of the light beam must be positioned on the central mark (1) in the headlamp adjuster (01).
If high beam setting is not correct,
↓
rectify the problems.
After obtaining special order.
