(Remove/Install Solenoid Valve Unit - AR91.29-P-1601G)
Model 463 up to 11/30/00
up to model year 2000
with code SK2 (Left electrically adjustable front seat with orthopedic backrest)
with code SK3 (Right electrically adjustable front seat with orthopedic backrest)
| Remove/install | |||
| 1 | Move front seat backrest forward | ||

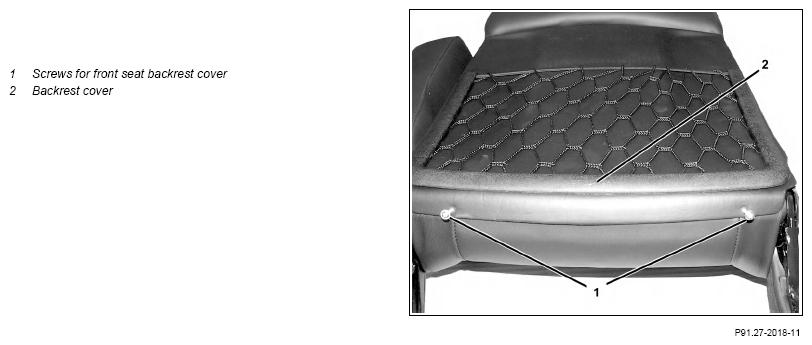

| 2 | Unscrew screws for front seat backrest cover (1) and remove backrest cover (2) | ||

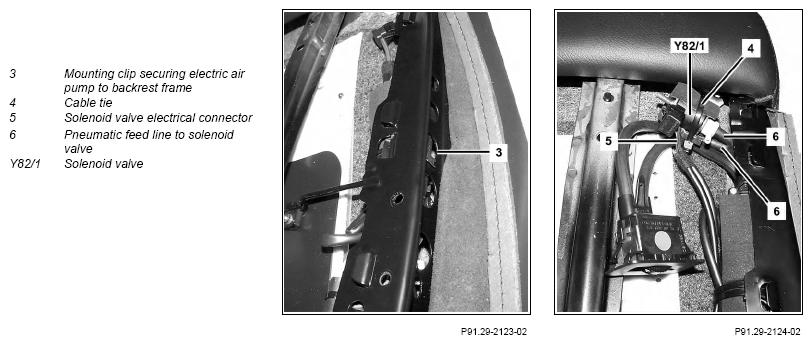

| 3 | Remove mounting clip securing electric air pump to backrest frame (3) | ||
| 4 | Cut off cable tie (4) at solenoid valve (Y82 left and Y82/1 right) | ||
| 5 | Disconnect electrical connection (5) | ||
| 6 | Disconnect pneumatic feed line to solenoid valve (6) | ||
| 7 | Remove solenoid valve (Y82 left and Y82/1 right) | ||
| 8 | Install in the reverse order | ||
| 9 | Check function of multicontour seat |
