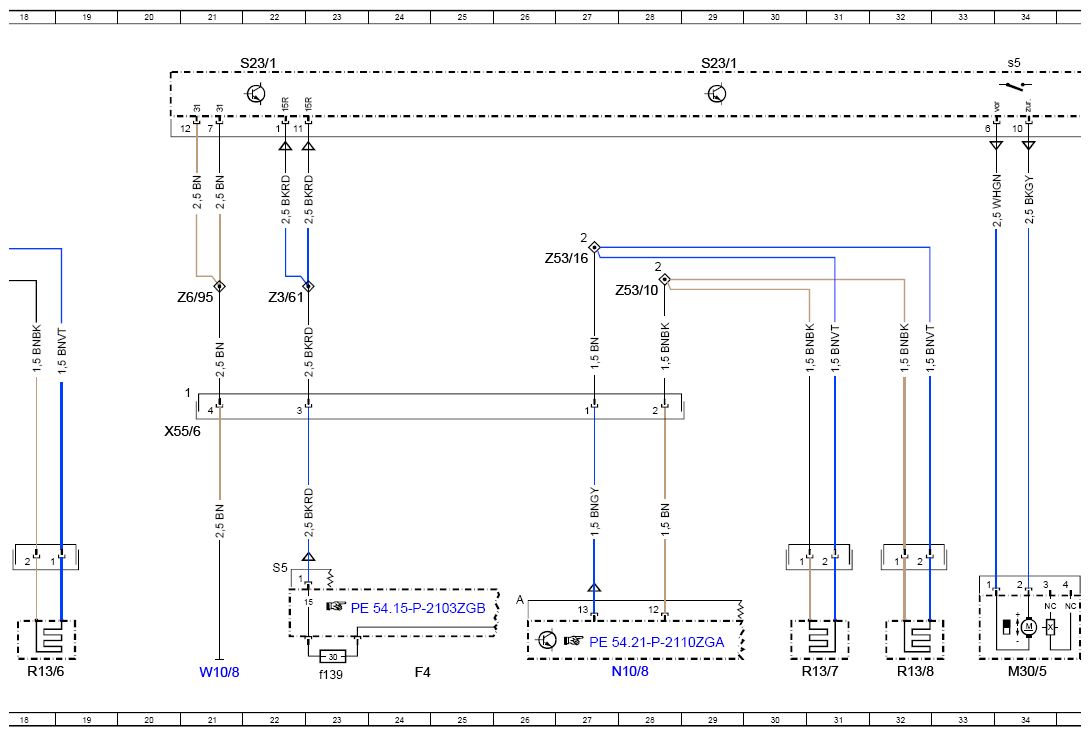

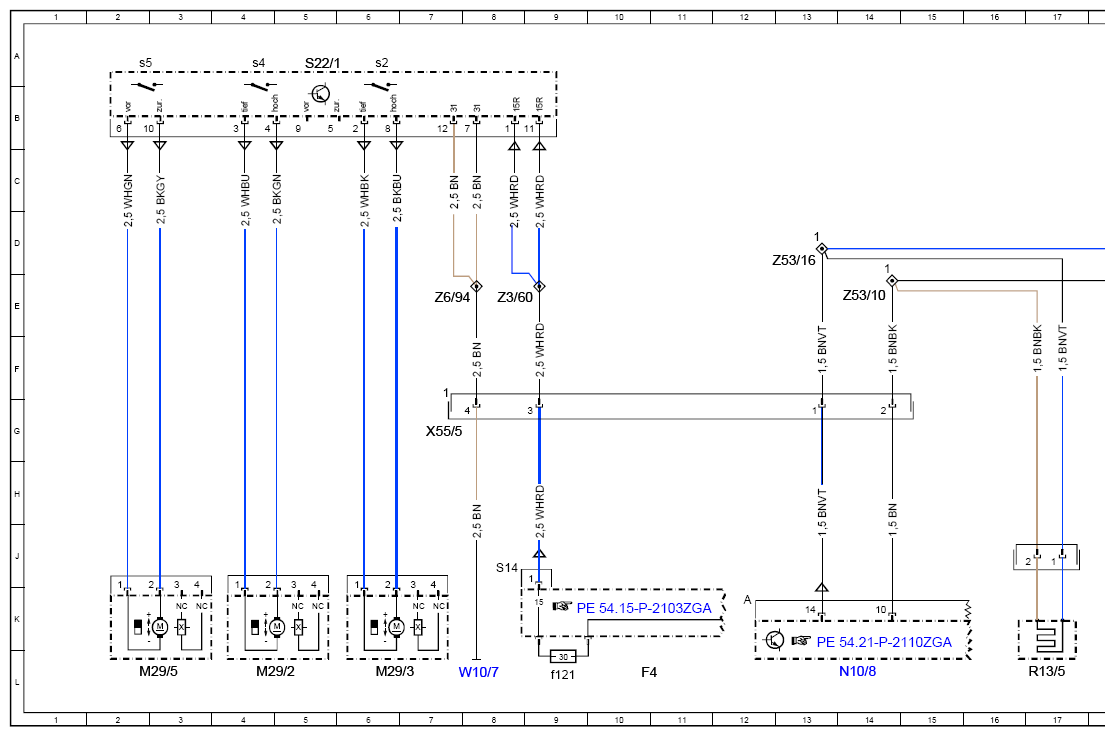

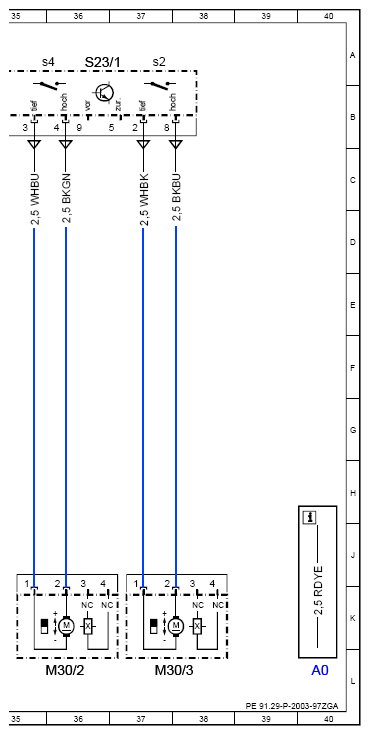

Partially Electric Seat Adjustment (ESA (ESV)) Wiring Diagram - PE91.29-P-2003-97ZGA
Model 463 as of model year 2013 up to model year 2019 /year model 2012 model refinement package up to year model 2018 model refinement package
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| F4 | Rear fuse and relay module | 24L |
| F4 | Rear fuse and relay module | 10L |
| F4f121 | Fuse 121 | 9L |
| F4f139 | Fuse 139 | 23L |
| M29/2 | Left rear seat height adjustment motor | 4L |
| M29/3 | Left rear seat inclination adjustment motor | 6L |
| M29/5 | Left rear seat backrest inclination adjustment motor | 3L |
| M30/2 | Right rear seat height adjustment motor | 36L |
| M30/3 | Right rear seat inclination adjustment motor | 37L |
| M30/5 | Right rear seat backrest inclination adjustment motor | 34L |
| N10/8 | Rear control unit | 28L |
| N10/8 | Rear control unit | 14L |
| R13/5 | Left rear seat sitting surface heated cushion | 17L |
| R13/6 | Left rear backrest heated cushion | 18L |
| R13/7 | Right rear seat sitting surface heated cushion | 31L |
| R13/8 | Right rear backrest heater pad | 32L |
| S22/1 | Left rear seat adjustment switch | 5A |
| S22/1s2 | Left rear seat inclination adjustment switch | 6A |
| S22/1s4 | Left rear seat height adjustment switch | 4A |
| S22/1s5 | Left rear seat backrest adjustment switch | 2A |
| S23/1 | Right rear seat adjustment switch | 22A |
| S23/1 | Right rear seat adjustment switch | 36A |
| S23/1 | Right rear seat adjustment switch | 29A |
| S23/1s2 | Right rear seat inclination adjustment switch | 37A |
| S23/1s4 | Right rear seat height adjustment switch | 36A |
| S23/1s5 | Right rear seat backrest adjustment switch | 34A |
| W10/7 | Left battery recess ground point | 8L |
| W10/8 | Right battery recess ground point | 21L |
| X55/5 | Left rear seat adjustment connector block | 7G |
| X55/6 | Right rear seat adjustment connector block | 21G |
| Z3/60 | Driver circuit 15R connector sleeve | 8E |
| Z3/61 | Front passenger circuit 15R connector sleeve | 22E |
| Z53/10 | Seat heater ground line connector sleeve | 28E |
| Z53/10 | Seat heater ground line connector sleeve | 14E |
| Z53/16 | Seat heater signal line connector sleeve | 27D |
| Z53/16 | Seat heater signal line connector sleeve | 13D |
| Z6/94 | Driver seat circuit 31 connector sleeve | 7E |
| Z6/95 | Passenger seat circuit 31 connector sleeve | 21E |
