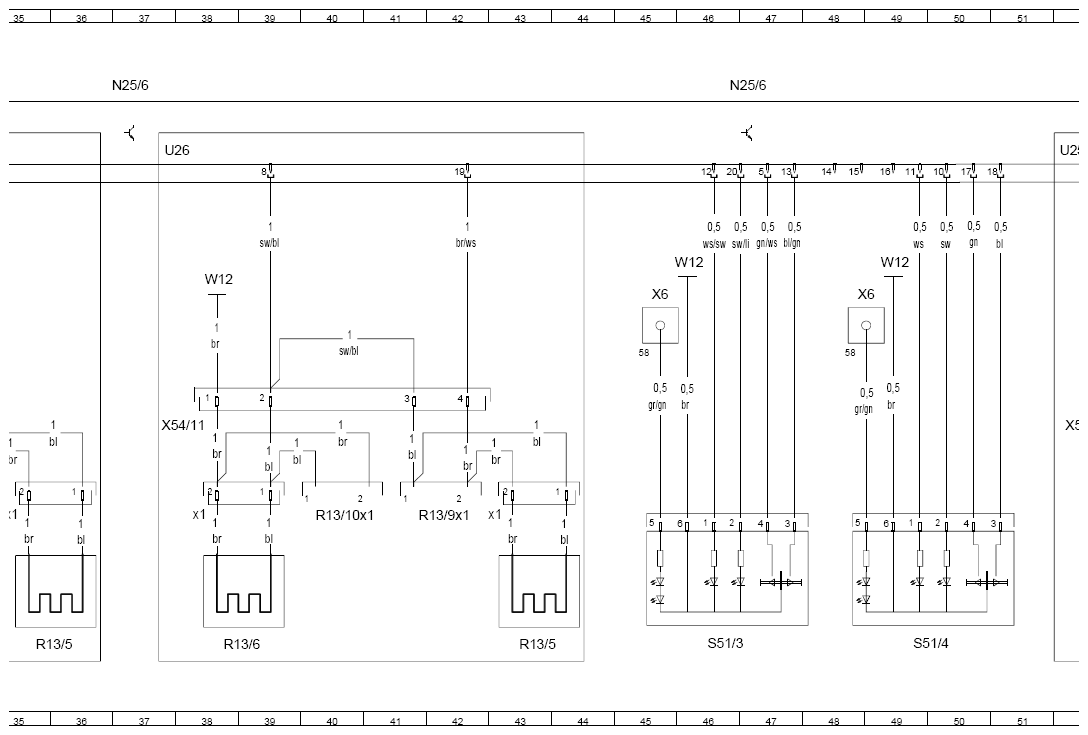

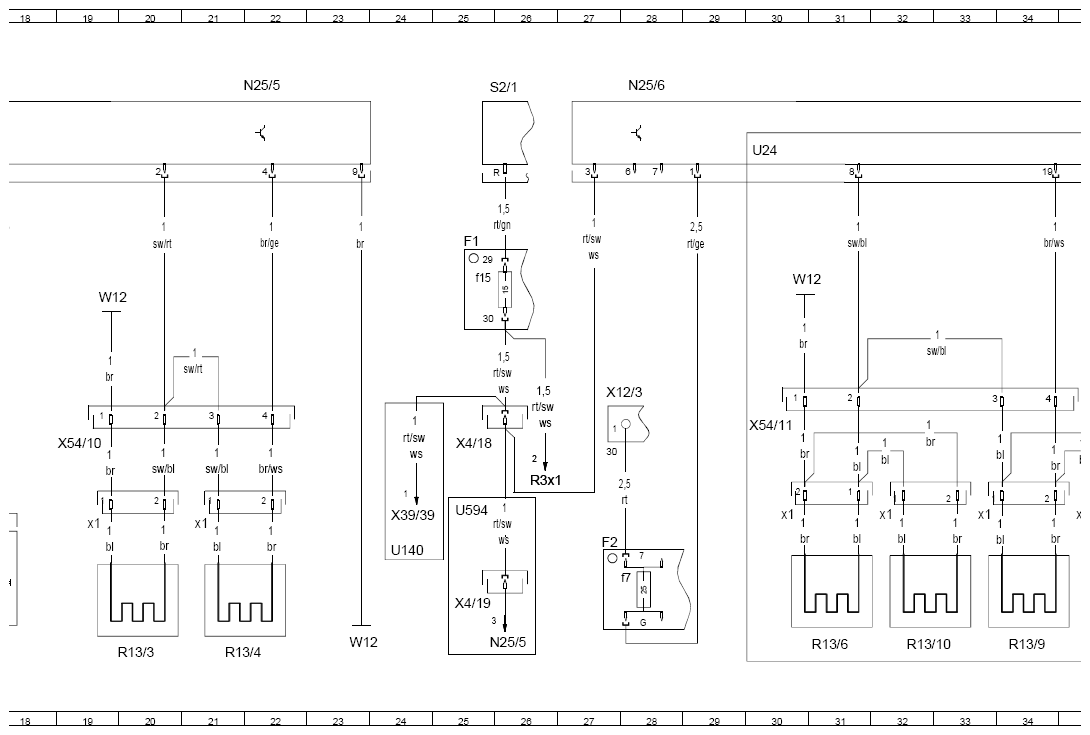

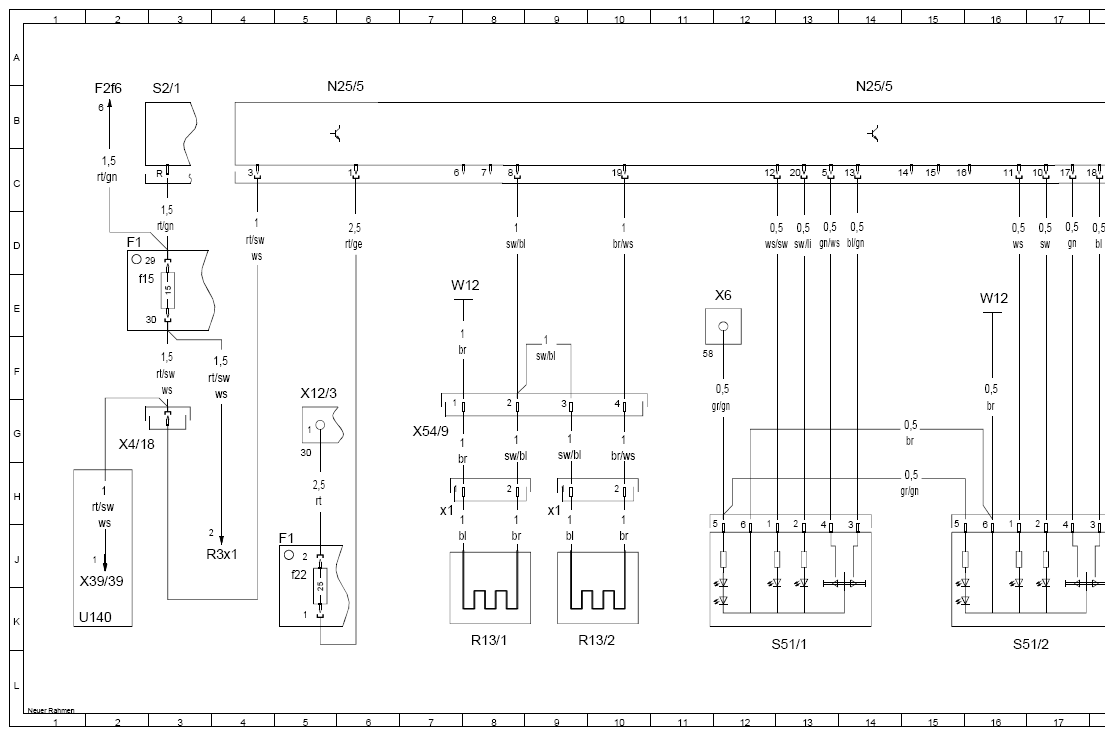

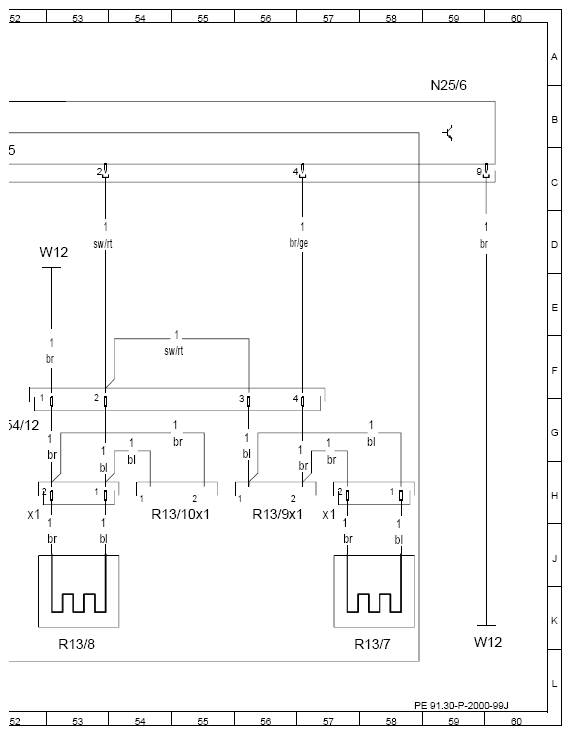

(Wiring Diagram Heated Seats (HS) - PE91.30-P-2000-99J)
MODEL 463 as of 1.6.98 up to 31.5.12 with CODE (H10) Driver and front passenger heated seats with CODE (H11) Heated rear bench seat
| Code: | Designation: | Position: |
|---|---|---|
| F1 | Fuse box | 3D |
| F1 | Fuse box | 5J |
| F1 | Fuse box | 25D |
| F1f15 | Fuse 15 | 3E |
| F1f15 | Fuse 15 | 25E |
| F1f22 | Fuse 22 | 5K |
| F1f7 | Fuse 7 | |
| F2 | Fusebox (8 fuses) | 28J |
| F2f6 | Fuse 6 | 2B |
| N25/5 | Front HS [SIH] control module | 7B |
| N25/5 | Front HS [SIH] control module | 19B |
| N25/5 | Front HS [SIH] control module | 30B |
| N25/5 | Front HS [SIH] control module | 36P |
| N25/6 | Rear HS [SIH] control module | 39B |
| N25/6 | Rear HS [SIH] control module | 51B |
| N25/6 | Rear HS [SIH] control module | 83B |
| N25/6 | Rear HS [SIH] control module | 65B |
| R13/1 | Left front seat heated cushion | 8K |
| R13/10 | Center rear seat backrest heated cushion | 32K |
| R13/10x1 | Rear seat backrest heated cushion connector | 55H |
| R13/10x1 | Rear seat backrest heated cushion connector | 40H |
| R13/10x1 | Rear seat backrest heated cushion connector | |
| R13/1x1 | Left front seat heated cushion plug connection | |
| R13/2 | Left front backrest heated cushion | 10K |
| R13/2x1 | Left front backrest heated cushion plug connection | 9H |
| R13/3 | Right front seat heated cushion | 20L |
| R13/3x1 | Right front seat heated cushion plug connection | 20H |
| R13/4 | Right front backrest heated cushion | 21L |
| R13/4x1 | Right front backrest heated cushion plug connection | 21H |
| R13/5 | Left rear seat heated cushion | 35L |
| R13/5 | Left rear seat heated cushion | 43L |
| R13/5x1 | Left rear seat cushion heater element connector | 35H |
| R13/5x1 | Left rear seat cushion heater element connector | 43H |
| R13/6 | Left rear backrest heated cushion | 31K |
| R13/6 | Left rear backrest heated cushion | 38K |
| R13/6x1 | Left rear backrest heater element connector | 31H |
| R13/6x1 | Left rear backrest heater element connector | 38H |
| R13/7 | Right rear seat heated cushion | 58K |
| R13/7x1 | Right rear seat cushion heater element connector | 57H |
| R13/8 | Right rear backrest heated cushion | 53K |
| R13/8x1 | Right rear backrest heater element connector | 53H |
| R13/9 | Center rear seat heated cushion | 34K |
| R13/9x1 | Center rear seat heated cushion connector | 56H |
| R13/9x1 | Center rear seat heated cushion connector | 42H |
| R13/9x1 | Center rear seat heated cushion connector | 34H |
| R3x1 | Cigar lighter connector | 4J |
| R3x1 | Cigar lighter connector | 26H |
| S2/1 | Ignition/starter switch | 3B |
| S2/1 | Ignition/starter switch | 26B |
| S51/1 | Left front seat heater switch | 13K |
| S51/2 | Right front seat heater switch | 17K |
| S51/3 | Left rear seat heater switch | 46K |
| S51/4 | Right rear seat heater switch | 50K |
| U140 | Valid for portable cellular telephone | 2K |
| U140 | Valid for portable cellular telephone | 24J |
| U24 | Valid for 2/3 left rear seat bench | 30C |
| U25 | Valid for 1/3 seat bench or right rear individual seat | 52C |
| U26 | Valid for left rear individual seat | 37C |
| U594 | Valid for front and rear seat heated cushions | 25H |
| W12 | Ground (center console) | 7E |
| W12 | Ground (center console) | 16E |
| W12 | Ground (center console) | 19E |
| W12 | Ground (center console) | 23K |
| W12 | Ground (center console) | 30E |
| W12 | Ground (center console) | 49E |
| W12 | Ground (center console) | 53E |
| W12 | Ground (center console) | 59K |
| W12 | Ground (center console) | 46D |
| W12 | Ground (center console) | 38E |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 5G |
| X12/3 | Terminal block (circuit 30, 15, 61 (3-pin) | 28F |
| X39/39 | Handy connector | 2J |
| X39/39 | Handy connector | 24H |
| X4/18 | Terminal block (circuit 15R) (1-pin) | 2G |
| X4/18 | Terminal block (circuit 15R) (1-pin) | 25G |
| X4/19 | Terminal block (circuit 15Z) (1-pin) | 25L |
| X54/10 | Left and right rear seat backrest heater connector | 19G |
| X54/11 | Left and right rear seat cushion heater connector | 30G |
| X54/11 | Left and right rear seat cushion heater connector | 38G |
| X54/12 | Left and right seat heater connector | 52G |
| X54/9 | Heated seats voltage supply connector (2-pin) | 7G |
| X6 | Terminal block (circuit 58) (2-pin) | 12E |
| X6 | Terminal block (circuit 58) (2-pin) | 45E |
| X6 | Terminal block (circuit 58) (2-pin) | 48E |
