Remove, Replace And Install Rear Center Seat Belt - AR91.40-P-0683GW
Model 463 (except 463.202)
as of model year 2013 up to model year 2019
/FACELIFT 2012
| Remove/install | |||
| 1 | Remove headliner | Remove/install headliner Model 463 (except 463.202/242) as of model year 2013 up to model year 2019 |
AR68.30-P-4300GW |

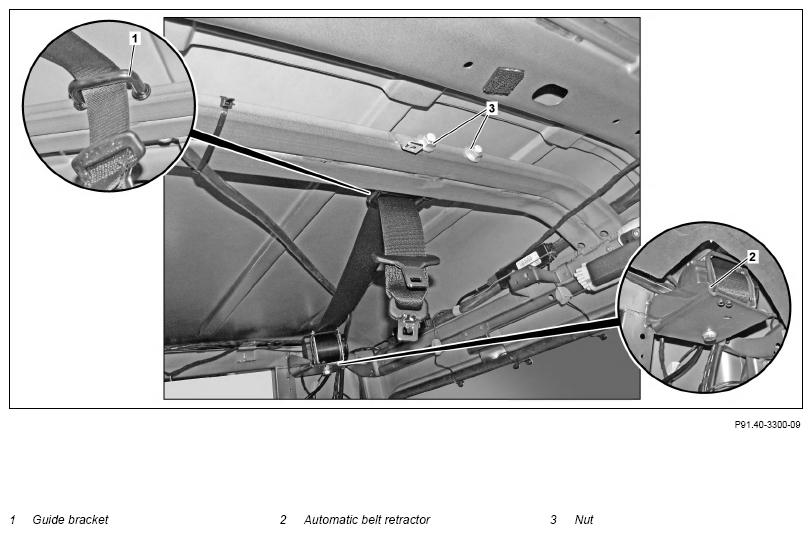

| 2 | Detach belt sash guide (1) from roof bow | *BA91.40-P-1009-01C | |
| 3 | Detach belt sash guide before seat belt retractor (2) | ||

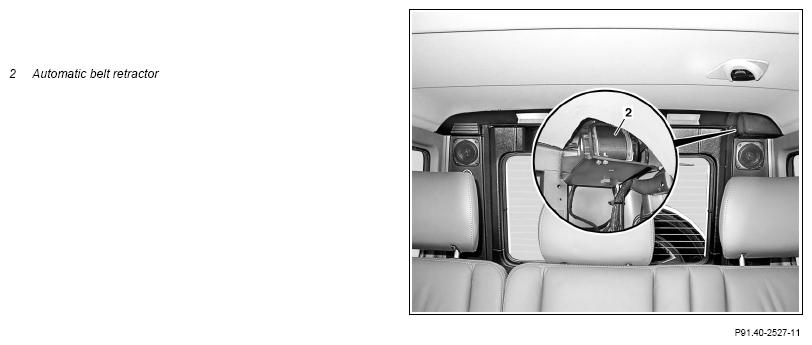

| 4 | Remove automatic belt retractor (2) from console on roof | *BA91.40-P-1008-01C | |
| 5 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA91.40-P-1008-01C | Bolt, seat belt retractor to mounting console on roof | Nm | 35 | - |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA91.40-P-1009-01C | Nut, deflection holder to roof bow | Nm | 30 | - |
