Transfer Case (VG), Torque Distribution - GF28.10-P-0002-03VGG

Model 463 with transmission 725.0

as of model year 2019

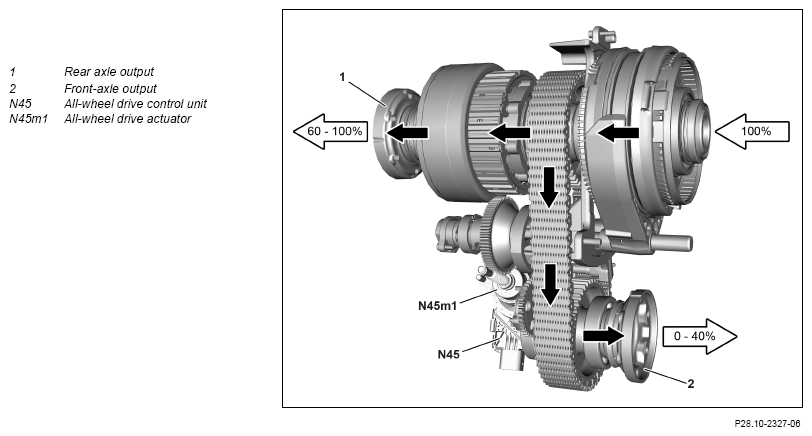

Torque distribution in transfer case

Courtesy of MERCEDES-BENZ USA

Closing the multidisk clutch causes up to 40 % of the drive torque to be distributed to the front axle transmission output.
