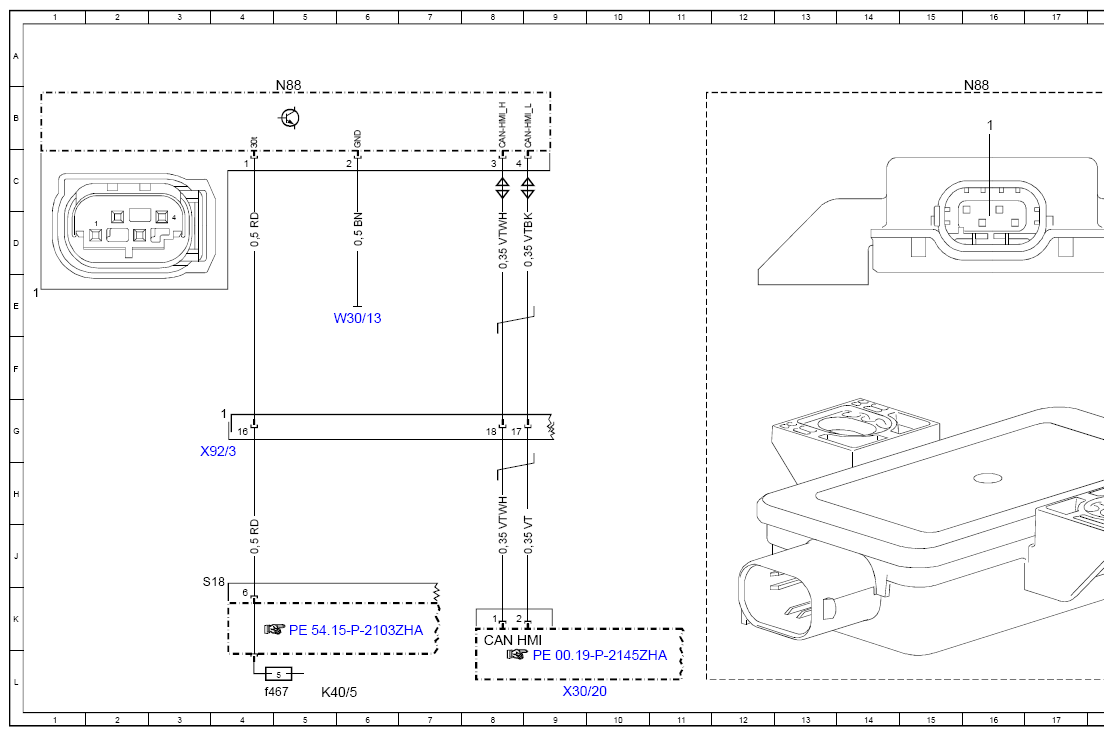

Wiring Diagram For Tire Pressure Monitor Control Unit - PE40.15-P-2101-97ZHA
Model 463 (except 463.342)
as of model year 2019 with code RY6 (Tire pressure monitoring system) Control unit N88
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 32L |
| CAN HMI | User interface CAN | 8K |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f467 | Fuse 467 | 5L |

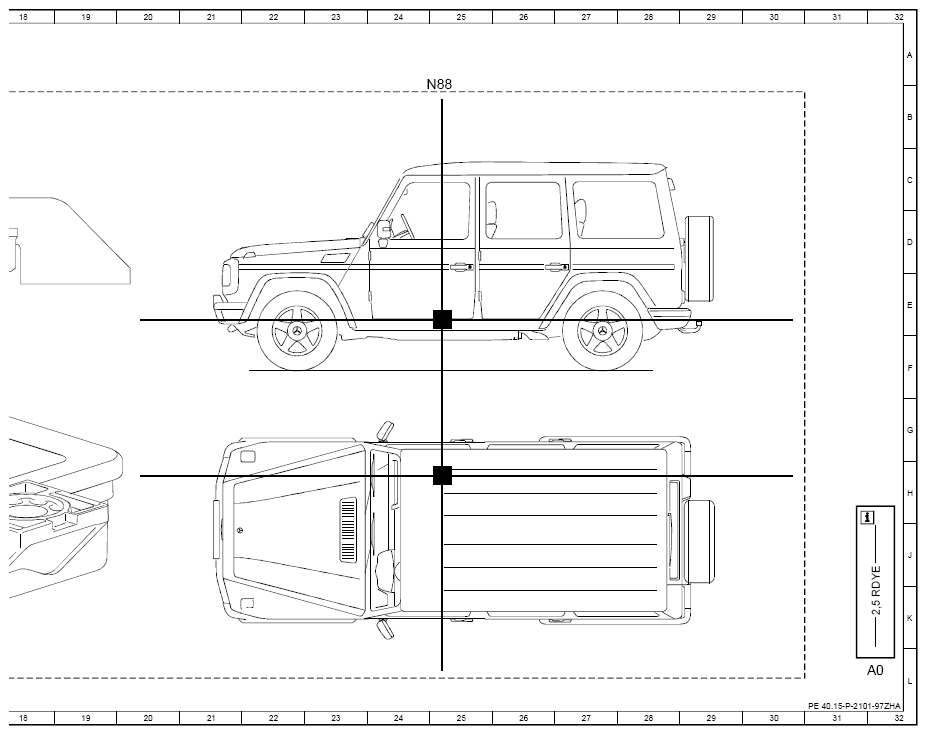

| N88 | Tire pressure monitor control unit | 5B |
| N88 | Tire pressure monitor control unit | 16B |
| N88 | Tire pressure monitor control unit | 25B |
| W30/13 | Ground point (left frame) | 6E |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 9L |
| X92/3 | Vehicle frame electrical connector | 4G |
