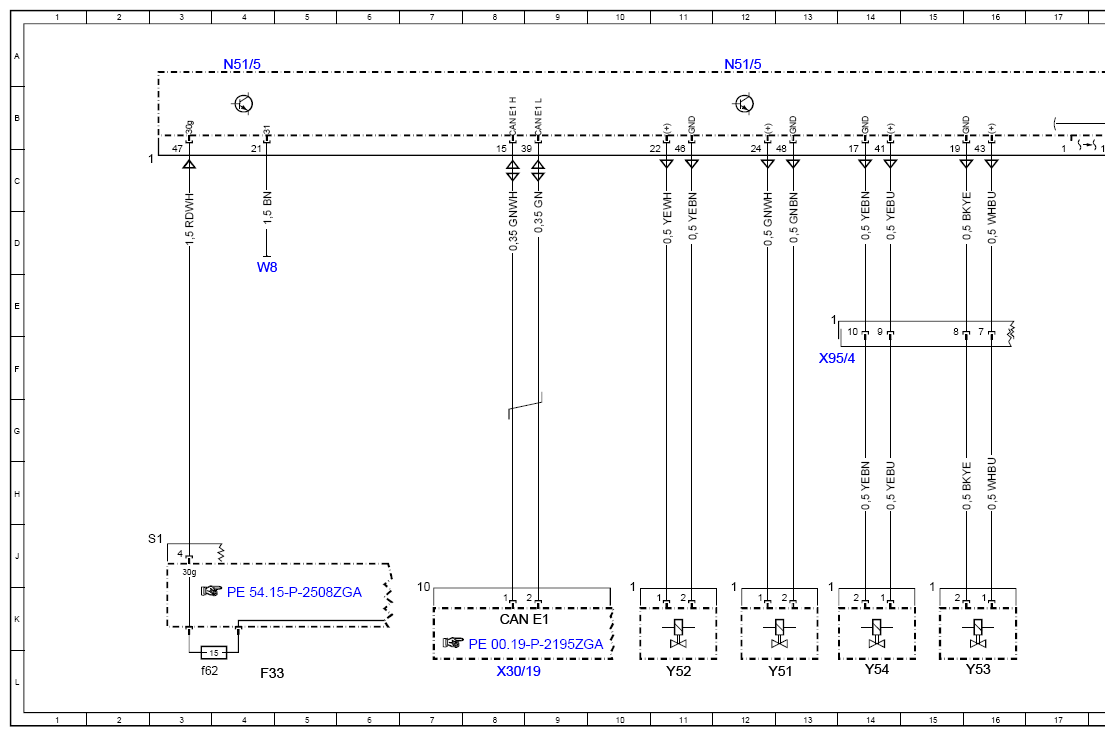

Wiring Diagram For Adaptive Damping System (ADS) Control Unit - PE32.32-P-2101-97ZGA
Model 463 as of model year 2016 up to model year 2019
with code A20 (Suspension with Adaptive Damping system)
Control unit N51/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 24L |
| CAN E1 | Chassis CAN 1 | 8K |
| F33 | Battery compartment pre-fuse box | 4L |
| F33f62 | Fuse 62 | 3L |
| N51/5 | Adaptive damping system control unit | 4A |
| N51/5 | Adaptive damping system control unit | 12A |
| N51/5 | Adaptive damping system control unit | 20A |
| W8 | Ground (luggage compartment toolbox) | 4D |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 8L |
| X95/4 | Frame electrical connector (6-pin) | 13F |
| Y51 | Left front axle damping valve unit | 12L |
| Y52 | Right front axle damping valve unit | 11L |
| Y53 | Left rear axle damping valve unit | 16L |
| Y54 | Right rear axle damping valve unit | 14L |
