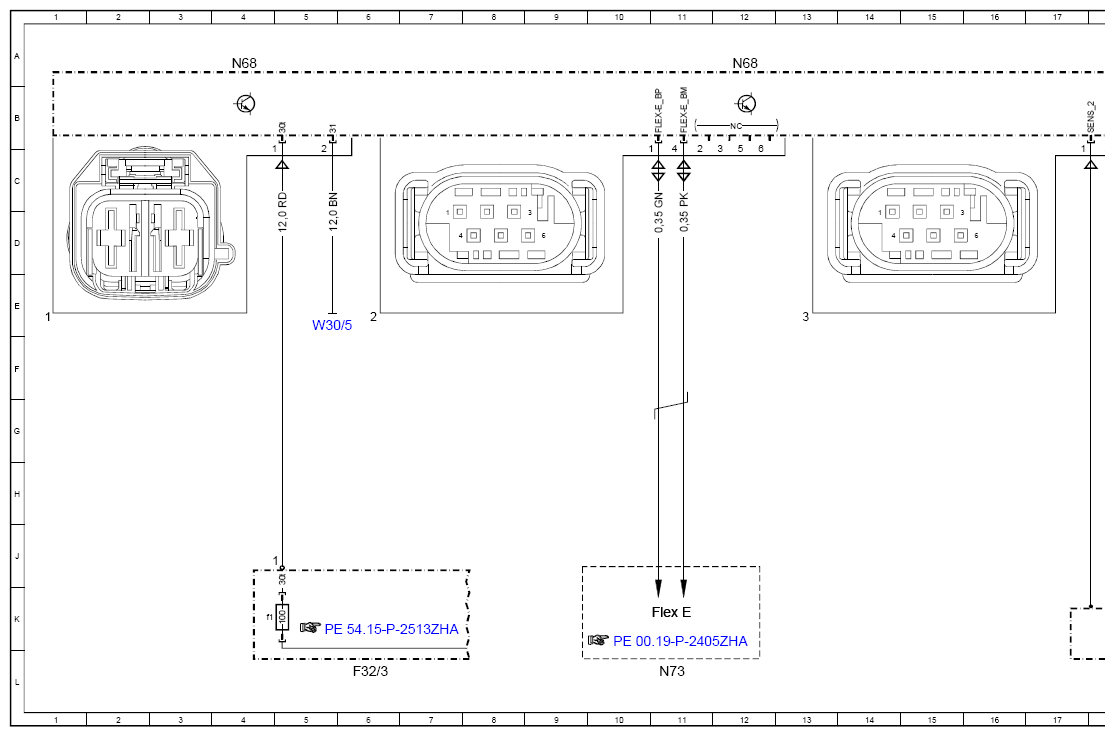

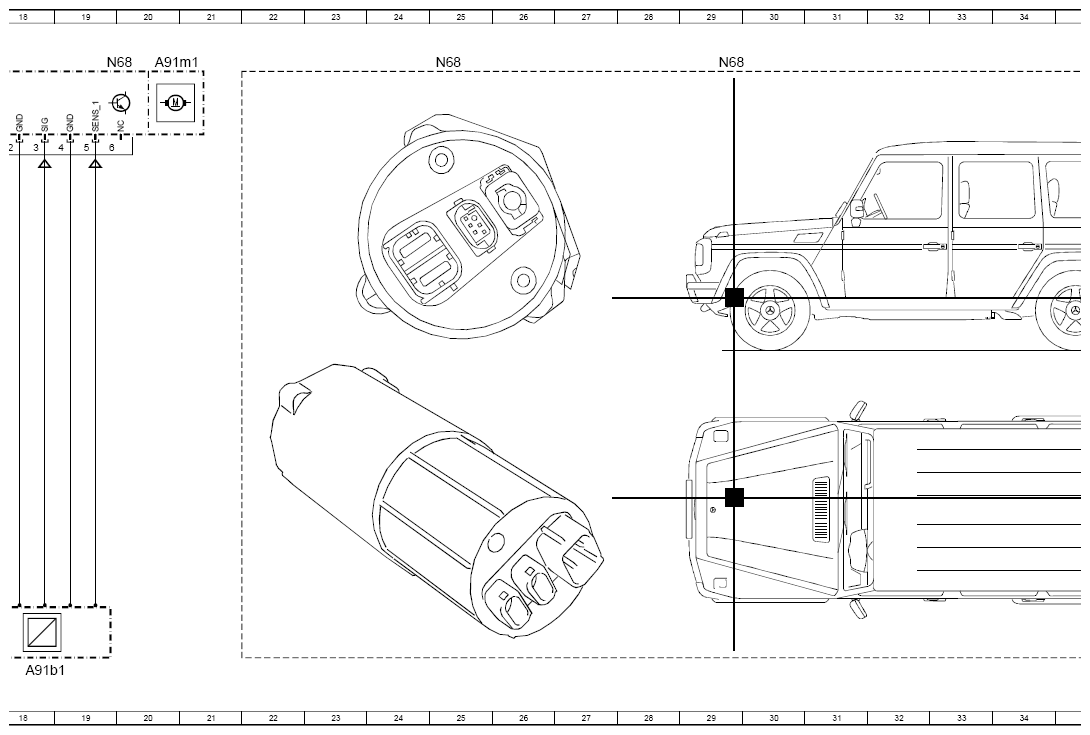

Wiring Diagram For Electric Power Steering Control Unit - PE46.35-P-2101-97ZHA
Model 463 (except 463.342)
as of model year 2019
Control unit N68
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A91b1 | Electric power steering torque sensor | 18L |
| A91m1 | Electric power steering actuator motor | 20A |
| F32/3 | Engine compartment prefuse box | 6L |
| F32/3f1 | Fuse 1 | 4K |
| Flex E | Chassis FlexRay | 11K |
| N68 | Electrical power steering control unit | 4A |
| N68 | Electrical power steering control unit | 12A |
| N68 | Electrical power steering control unit | 19A |
| N68 | Electrical power steering control unit | 25A |
| N68 | Electrical power steering control unit | 29A |
| N73 | Electronic ignition switch control unit | 11L |
| W30/5 | Electric power steering ground point | 5E |
