Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97ZHA
Model 463 (except 463.342) as of model year 2019 Seat belt tensioner A76, A76/1
| Code: | Designation: | Position: |
|---|---|---|

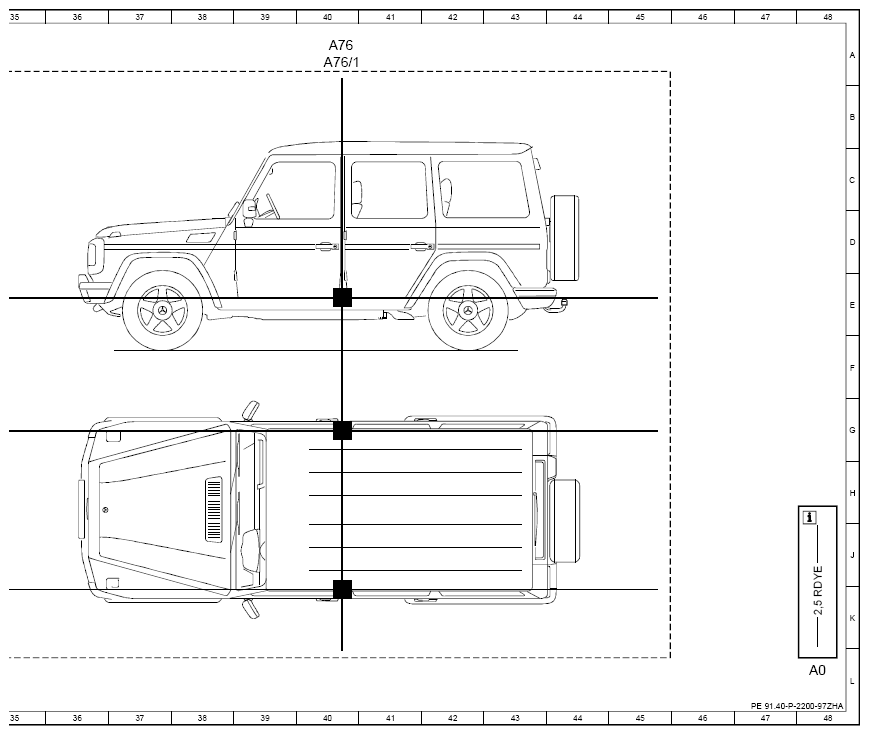

| A0 | Use of wiring diagrams | 48L |

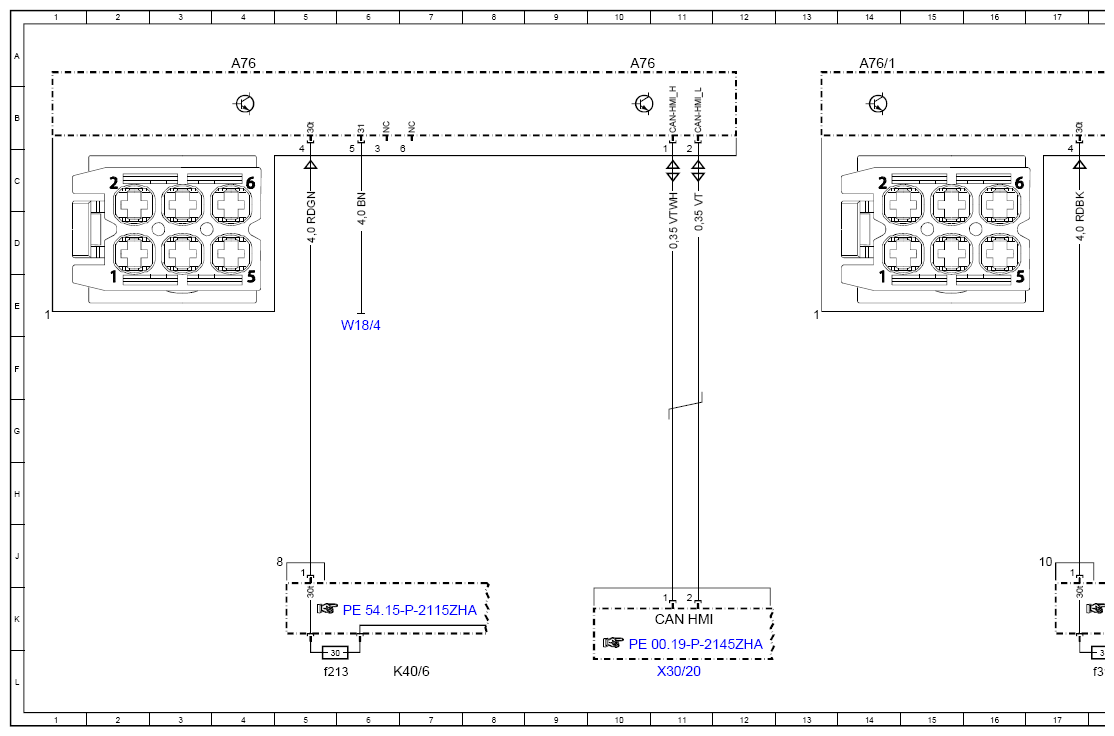

| A76 | Left front reversible emergency tensioning retractor | 4A |
| A76 | Left front reversible emergency tensioning retractor | 10A |
| A76 | Left front reversible emergency tensioning retractor | 35K |
| A76 | Left front reversible emergency tensioning retractor | 29A |
| A76 | Left front reversible emergency tensioning retractor | 40A |

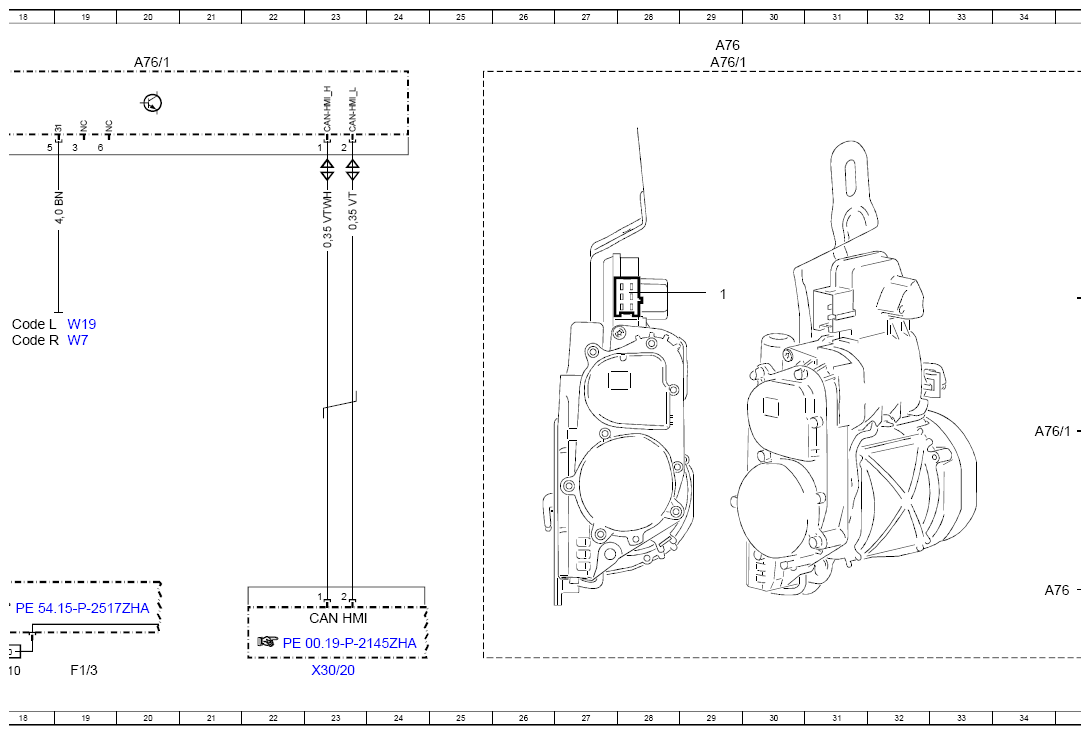

| A76/1 | Right front reversible emergency tensioning retractor | 14A |
| A76/1 | Right front reversible emergency tensioning retractor | 20A |
| A76/1 | Right front reversible emergency tensioning retractor | 34G |
| A76/1 | Right front reversible emergency tensioning retractor | 29A |
| A76/1 | Right front reversible emergency tensioning retractor | 40A |
| CAN HMI | User interface CAN | 11K |
| CAN HMI | User interface CAN | 23K |
| Code L | LEFT-HAND DRIVE | 18E |
| Code R | RIGHT-HAND DRIVE | 18F |
| F1/3 | Right A-pillar fuse box | 19L |
| F1/3f310 | Fuse 310 | 18L |
| K40/6 | Left fuse and relay module | 7L |
| K40/6f213 | Fuse 213 | 5L |
| W18/4 | Left front seat crossmember ground point 2 | 6E |
| W19 | Right front seat crossmember ground point | 19E |
| W7 | Right wheel arch rear-end door ground point | 19F |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 11L |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 23L |
