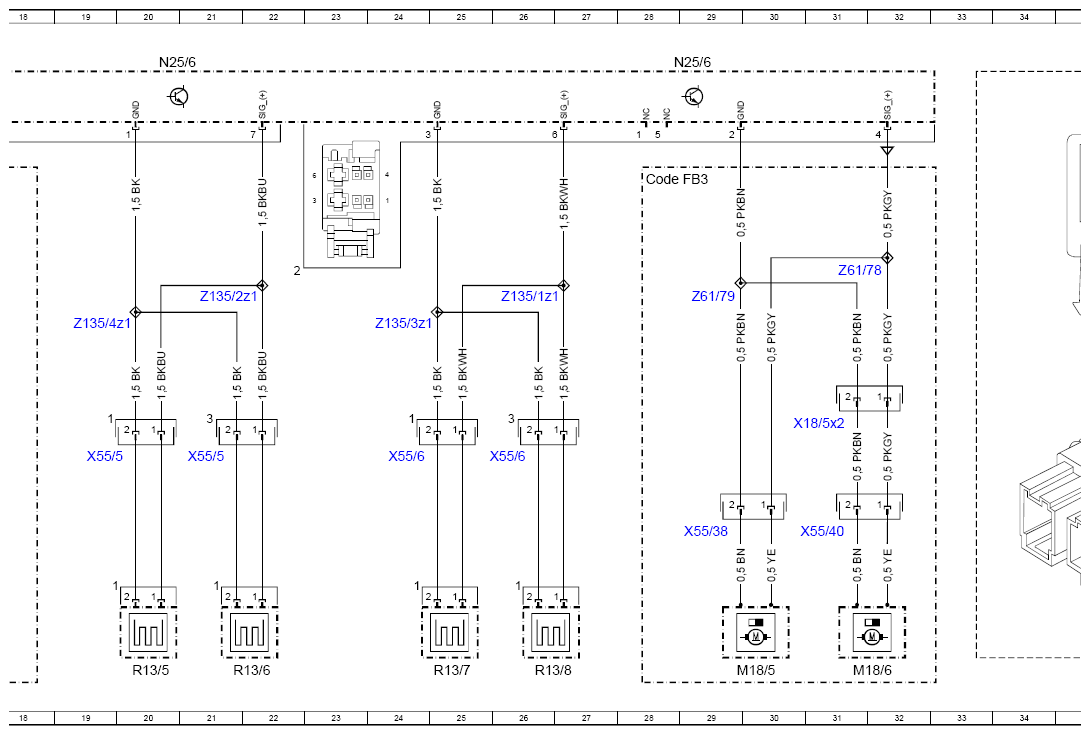

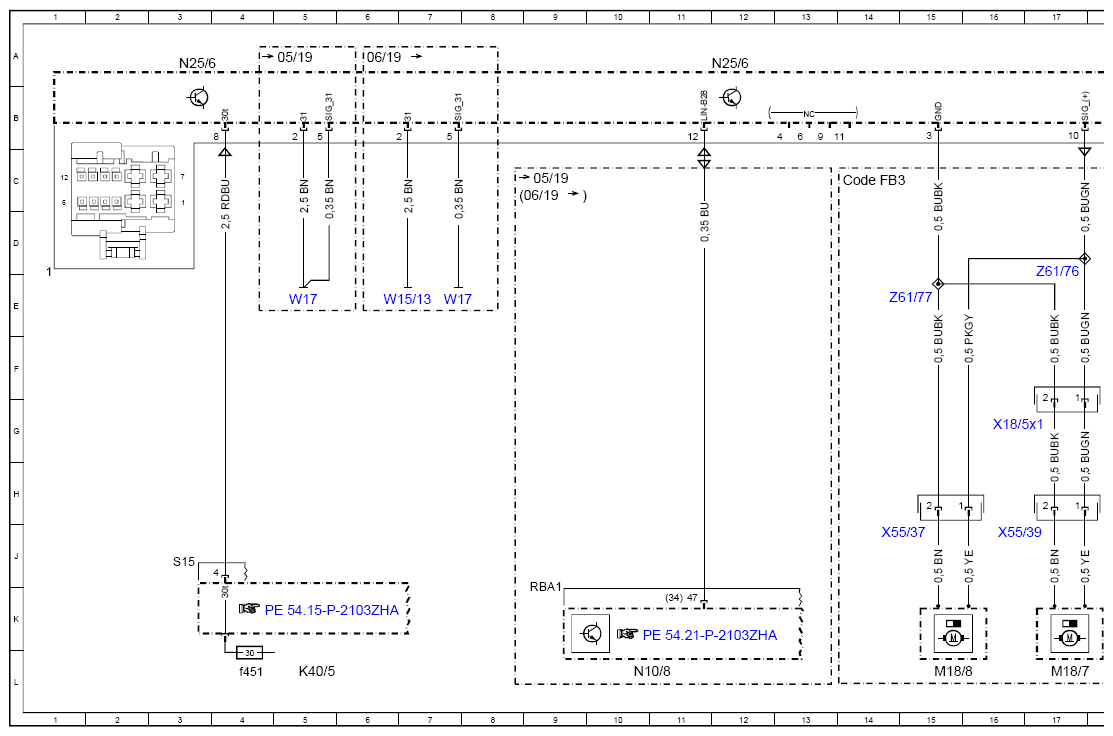

Wiring Diagram For Rear Heated Seats Control Unit - PE91.30-P-2101-97ZHA
Model 463 (except 463.342) as of model year 2019 with code H11 (Heated rear seats) Control unit N25/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| Code FB3 | Ventilated rear bench seat | 28C |
| Code FB3 | Ventilated rear bench seat | 14C |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f451 | Fuse 451 | 4L |
| M18/5 | Right rear seat backrest ventilation motors | 30L |
| M18/6 | Right rear seat cushion ventilation motors | 31L |
| M18/7 | Left rear seat backrest ventilation motors | 17L |
| M18/8 | Left rear seat cushion ventilation motors | 15L |
| N10/8 | Rear SAM control unit | 10L |

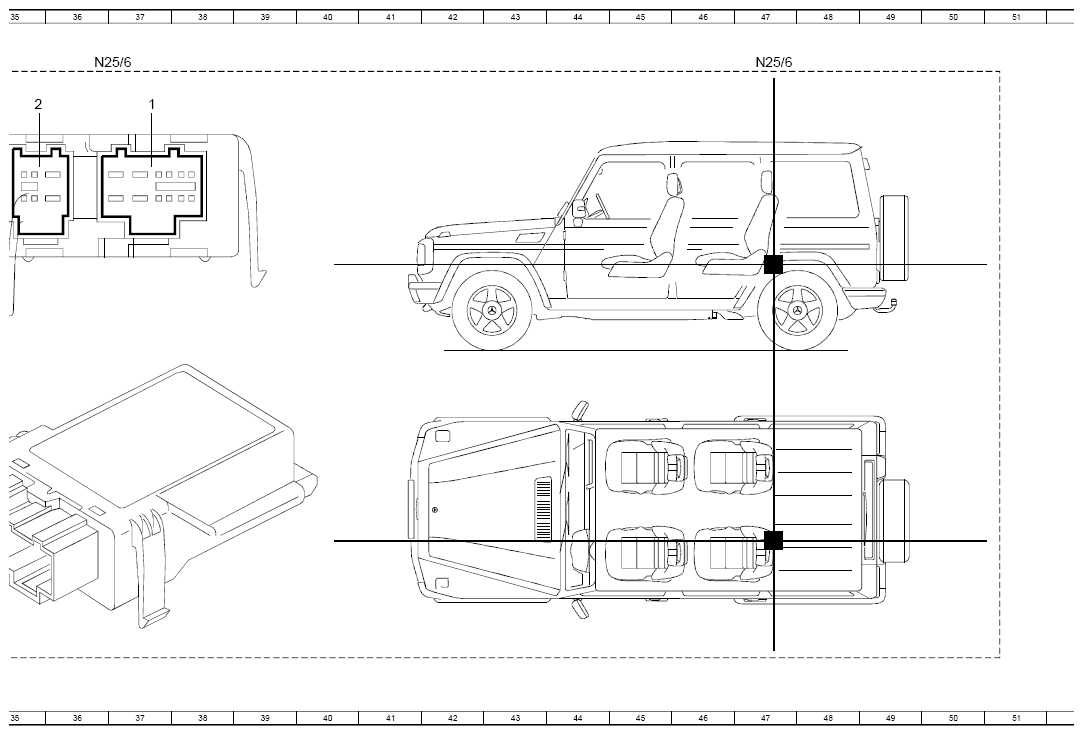

| N25/6 | Rear seat heaters control unit | 3A |
| N25/6 | Rear seat heaters control unit | 20A |
| N25/6 | Rear seat heaters control unit | 29A |
| N25/6 | Rear seat heaters control unit | 36A |
| N25/6 | Rear seat heaters control unit | 47A |
| N25/6 | Rear seat heaters control unit | 12A |
| R13/5 | Left rear seat sitting surface heated cushion | 20L |
| R13/6 | Left rear backrest heated cushion | 22L |
| R13/7 | Right rear seat sitting surface heated cushion | 25L |
| R13/8 | Right rear backrest heater pad | 26L |
| W15/13 | Left rear wheel well ground point | 6E |
| W17 | Right rear seat ground point | 5E |
| W17 | Right rear seat ground point | 7E |
| X18/5x1 | Left rear seat backrest seat ventilation motors electrical connector | 16G |
| X18/5x2 | Right rear seat backrest seat ventilation motors electrical connector | 31G |
| X55/37 | Left rear seat cushion seat ventilation motors electrical connector | 15J |
| X55/38 | Right rear seat cushion seat ventilation motors electrical connector | 29J |
| X55/39 | Left rear seat backrest seat ventilation motors electrical connector | 16J |
| X55/40 | Right rear seat backrest seat ventilation motors electrical connector | 31J |
| X55/5 | Left rear seat adjustment connector block | 19H |
| X55/5 | Left rear seat adjustment connector block | 21H |
| X55/6 | Right rear seat adjustment connector block | 26H |
| X55/6 | Right rear seat adjustment connector block | 24H |
| Z135/1z1 | Voltage supply connector sleeve | 26E |
| Z135/2z1 | Voltage supply connector sleeve | 21E |
| Z135/3z1 | Ground connection connector sleeve | 24E |
| Z135/4z1 | Ground connection connector sleeve | 19E |
| Z61/76 | Voltage supply connector sleeve | 17E |
| Z61/77 | Ground connection connector sleeve | 15E |
| Z61/78 | Voltage supply connector sleeve | 31E |
| Z61/79 | Ground connection connector sleeve | 29E |
