Replace Air Cushion With Massage Function In Front Seat Cushion - AR91.25-P-1749XG
Model 463
as of model year 2019

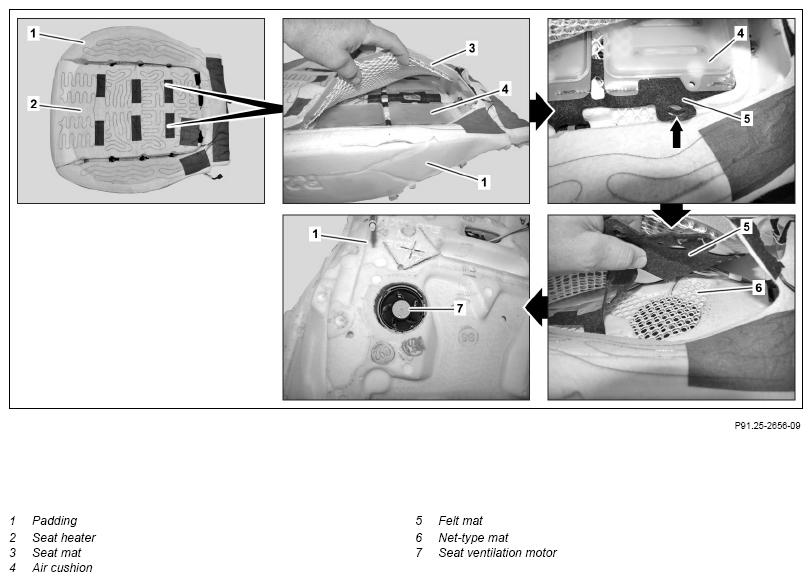

Fig 1: Air Cushion With Massage Function In Front Seat Cushion Components Location - Model 463 As Of Model Year 2019
| Remove | |||
| 1 | Remove cover from seat cushion at front. | AR91.18-P-1801XG | |
| 2 | Lift up seat mat (3). | ||
| 3 | Unhook felt mat (5) from retaining clip (arrow). | ||
| 4 | Lift up air cushion (4) with felt mat (5). | ||
| 5 | Separate net-type mat (6) over the seat ventilation motor (7). | ||
| 6 | Push seat ventilation motor (7) from below upwards out of padding (1). | ||
| 7 | Expose electrical wiring harness of seat ventilation motor (7). | ||
| 8 | Remove seat ventilation motor (7) from padding (1). | ||
| Install | |||
| 9 | Lift up seat mat (3) of new padding. | ||
| 10 | Unhook felt mat (5) from retaining clip (arrow). | ||
| 11 | Lift up air cushion (4) with felt mat (5). | ||
| 12 | Separate the net-type mat (6). | ||
| 13 | Insert the seat ventilation motor (7) from above into the new padding. | ||
| 14 | Route electrical wiring harness of seat ventilation motor (7). | ||
| 15 | Lower net-type mat (6). | ||
| 16 | Lower air cushion (4) with felt mat (5). | ||
| 17 | Hook felt mat (5) into retaining clip (arrow). | ||
| 18 | Lower seat mat (3). | ||
| 19 | Stick seat heating (2) onto new padding. | ||
| 20 | Install cover onto seat cushion at front. | AR91.18-P-1801XG |
