Replace Air Cushion With Massage Function In Front Seat Backrest - AR91.25-P-1751XG

Model 463

as of model year 2019

Courtesy of MERCEDES-BENZ USA

	Remove

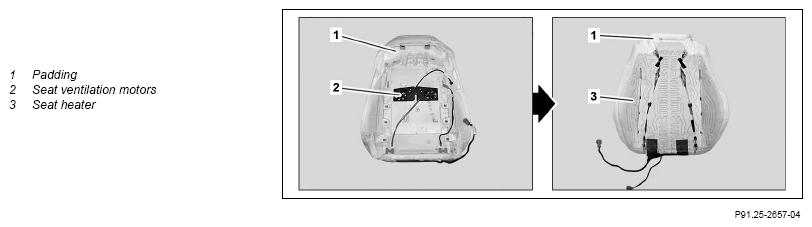

1	Remove cover from seat backrest at front.	The air cushion is part of the new padding and remains in the old padding (1).	AR91.18-P-1822XG
2	Unclip seat ventilation motors (2) from padding (1).
	Install
3	Clip seat ventilation motors (2) into new padding.
4	Stick new seat heating onto new padding.	Stick new seat heating to match pattern for the old seat heating (3) onto the new padding.
5	Install cover on seat backrest at front.		AR91.18-P-1822XG
