Remove/Install Split Rear Seat Backrest Arm Rest - AR91.12-P-1750XG

Model 463

as of model year 2019

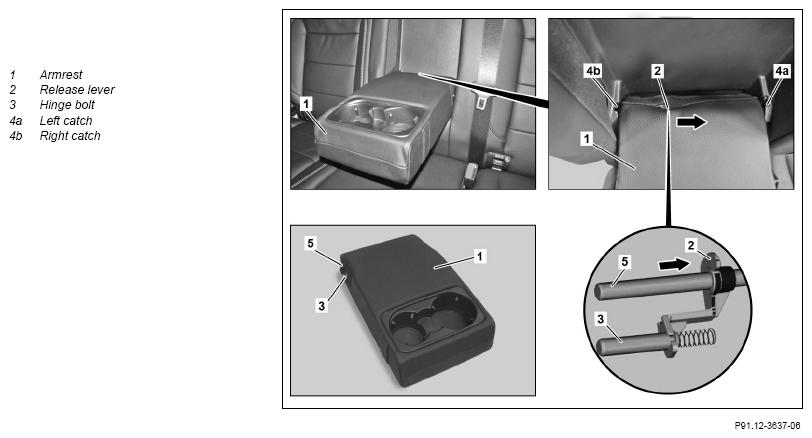

Fig 1: Split Rear Seat Backrest Arm Rest Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Fold armrest (1) out of rear seat backrest.
2	Push release lever (2) to left (arrow) until the hinge bolt (3) releases the armrest (1).	The release lever (2) can be operated with a finger through the seam opening.
3	Release armrest (1) from mount at right (4b).
4	Remove armrest (1) from mount at left (4a) and mount at right (4b).	Ensure correct seating of hinge bolt (3) in mount at left (4a) and mount at right (4b).
5	Install in reverse order.
