Remove/Install Seat With Console - AR91.10-P-3300GW

Model 463 (except 463.202)

as of model year 2013 up to model year 2019

/FACELIFT 2012

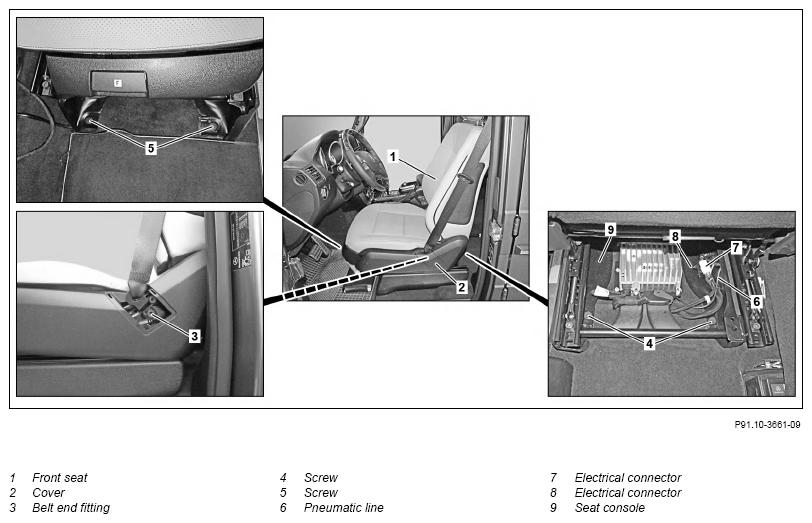

Fig 1: Seat With Console Components Location - Model 463 (Except 463.202) As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move front seat (1) to center and highest position
2	Detach ground line from battery	Model 463 (except 463.202/234/236/241/242/248) as of model year 2013 up to model year 2019	AR54.10-P-0003GW
	Notes on battery	Model 463 (except 463.202) as of model year 2013 up to model year 2019	AH54.10-P-0001-01A
3	Remove cover (2) and detach seat belt end fitting (3)	Bolt on belt end fitting	*BA91.40-P-1001-01C
4	Detach front seat wiring harness from mounting of seat console (9)	Replace cable tie.
5	Press electrical connector out of seat console (9)
6	Disconnect electrical connectors (7, 8)
7	Disconnect pneumatic line (6) at coupling
8	Remove screws (4, 5) of seat console (9)	Bolt, front seat mounting console to floor	*BA91.10-P-1003-01E
		White sealing compound, 310 ml, DBL 6069.20	*BR00.45-Z-1003-01A
9	Remove front seat (1) together with seat console (9)
10	Install in the reverse order
11	Read out and clear the fault memory using Star Diagnosis
		Model 463 (except 463.202) as of model year 2013 up to model year 2019	AD00.00-P-2000-04A
12	Perform function test on front seat (1)
13	Perform basic programming	Model 463 (except 463.202) as of model year 2013 up to model year 2019	AR00.19-P-0200P
